iC7-Automation Frequency Converters
Installation Guide
FA04–FA05
L1 L2

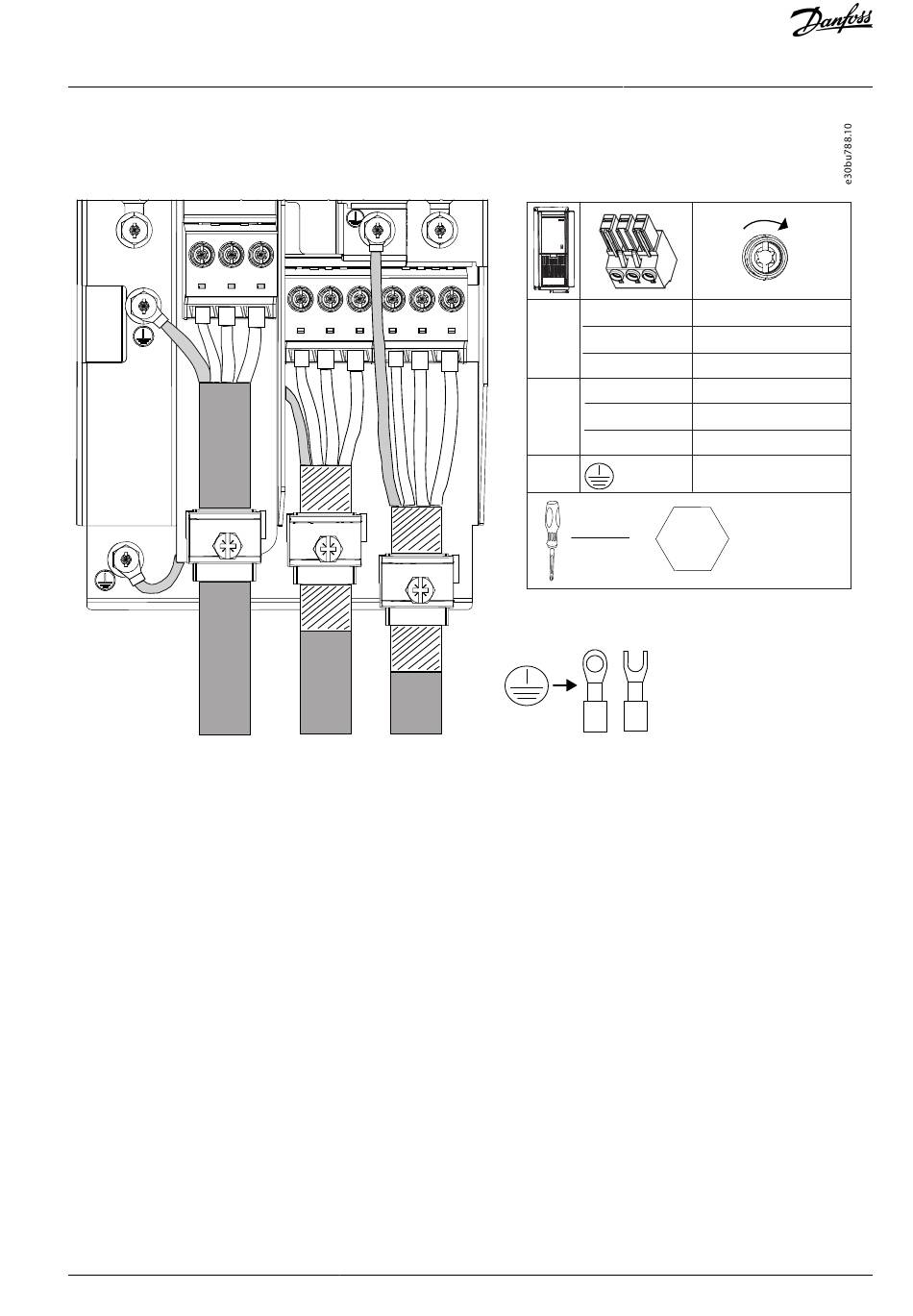

Illustration 13:
Danfoss A/S © 2022.05
L3
-DC R- + DC/R +
U V
BUS
WARN
READY
FAULT
L1, L2, L3
W
FA04 U, V, W
-DC, R-, +DC, R+
L1, L2, L3
U, V, W
FA05
-DC, R-, +DC, R+
SL1/T15
SL2/T20
Instructions
1.2–1.5 Nm (11–13 in-lb)
1.2–1.5 Nm (11–13 in-lb)
1.2–1.5 Nm (11–13 in-lb)
2.0–2.5 Nm (18–22 in-lb)
2.0–2.5 Nm (18–22 in-lb)
2.0–2.5 Nm (18–22 in-lb)
3 Nm (26 in-lb)
10 mm
