Danfoss iC7 Installation Manual page 13

iC7-Automation Frequency Converters
Installation Guide
FA02–FA08/FK02–FK08
5

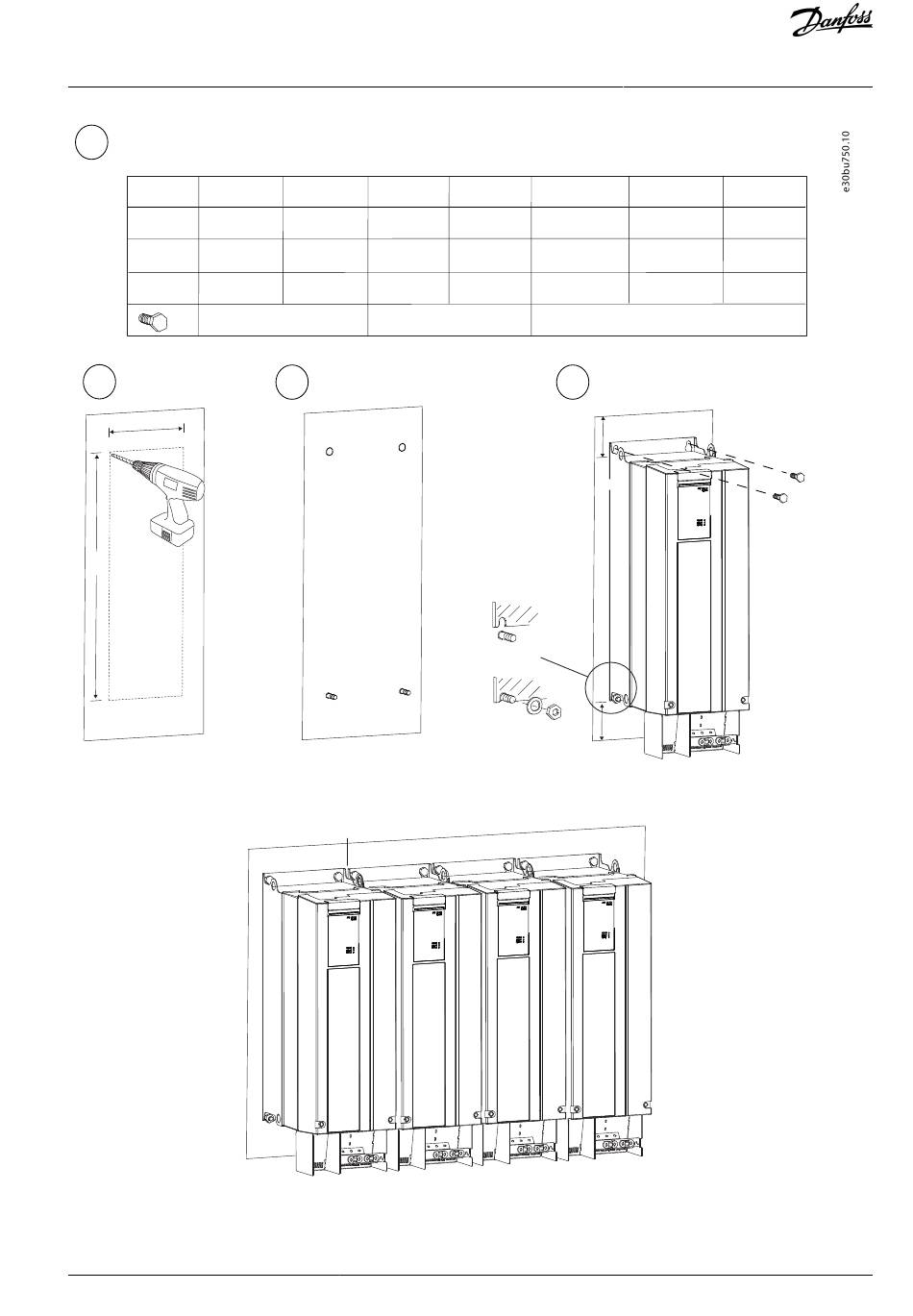

[mm (in)] FA02
A 257 (10.1)
B 70 (2.8)
C 100 (3.9)
5.1
B
X
A
X
X
Illustration 9:
Danfoss A/S © 2022.05
FA03 FA04
257 (10.1) 380 (15.0)
94 (3.7) 105 (4.1)
100 (3.9) 100 (3.9)
4 x M5 4 x M6
5.2
0 mm (0.0 in)
FA05 FA06/FK06
380 (15.0) 535 (21.1)
140 (5.5) 170 (6.7)
100 (3.9) 200 (7.9)
5.3
C
C
Instructions
FA07/FK07 FA08/FK08
580 (22.1) 721 (28.4)
200 (7.9) 200 (7.9)
200 (7.9) 200 (7.9)
4 x M8
AN319740057641en-000301 / 136R0242 | 13
