iC7-Automation Frequency Converters
Installation Guide
8
FA02–FA03
L1
L2

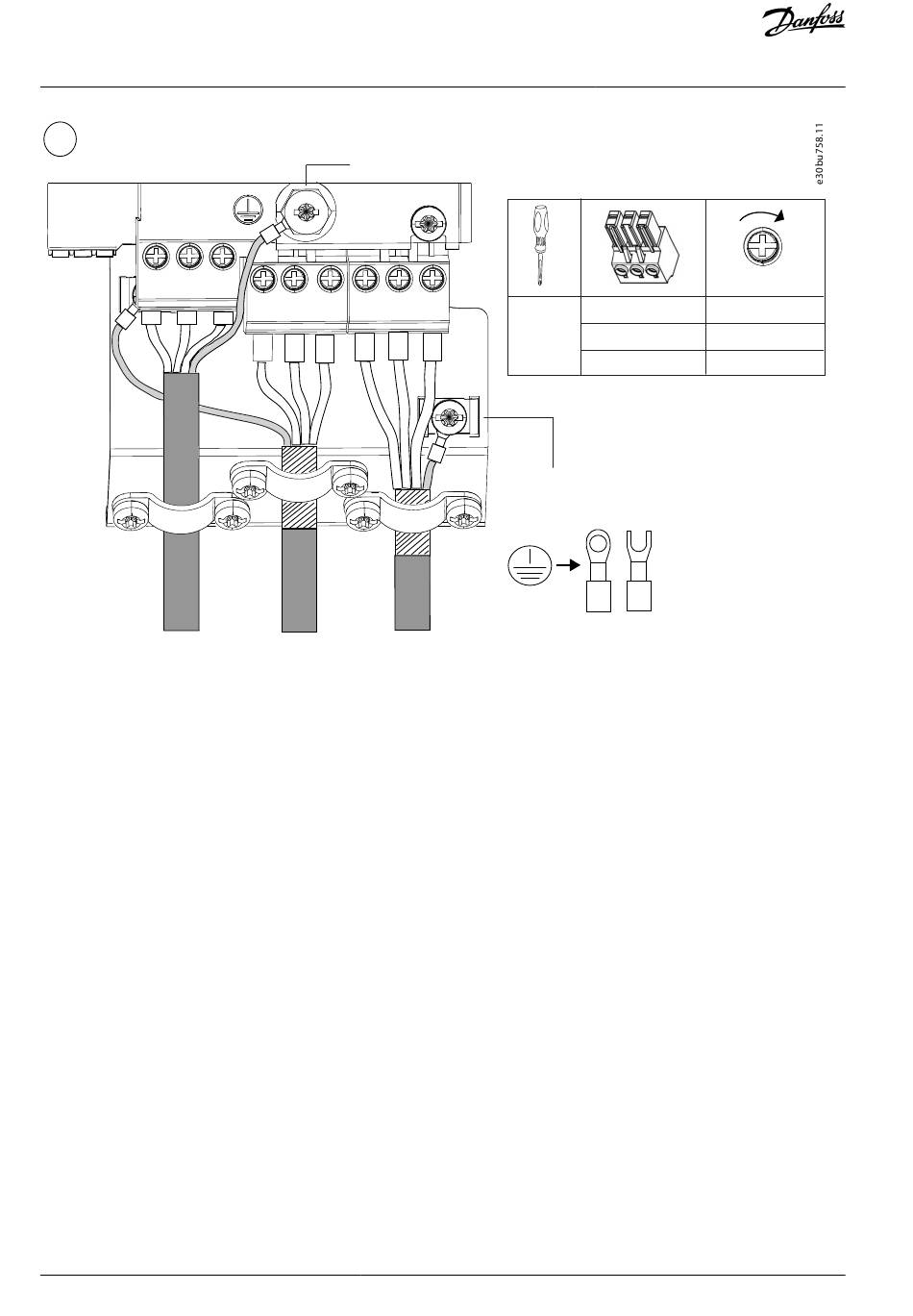

Illustration 12:
16 | Danfoss A/S © 2022.05
[3 Nm (26 in-lb)]
L3
+
-DC R- DC/R
+
U
V
W
SL1/PZ1
[2 Nm (18 in-lb)]
Instructions
L1, L2, L3
[0.7 Nm (6 in-lb)]
U, V, W
[0.7 Nm (6 in-lb)]
-DC, R-, +DC/R+
[0.7 Nm (6 in-lb)]
AN319740057641en-000301 / 136R0242
