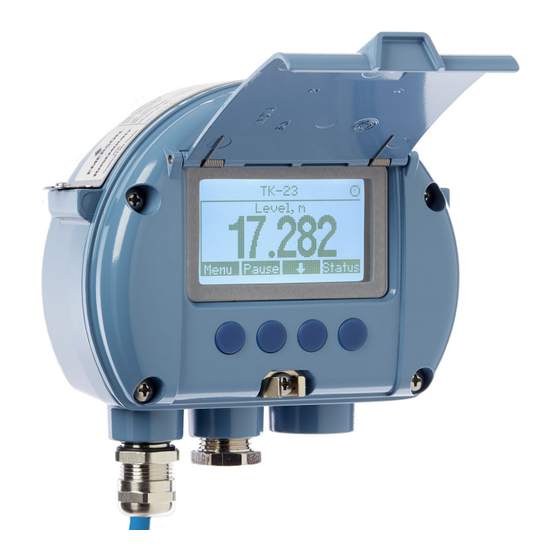

Emerson Rosemount 2230 Quick Start Manual

Graphical field display
Hide thumbs Also See for Rosemount 2230:

Advertisement

Quick Links

Download this manual
Quick Start Guide
00825-0100-2230, Rev AA
June 2023
Rosemount
2230 Graphical Field
™
Display

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rosemount 2230 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Emerson Rosemount 2230

Summary of Contents for Emerson Rosemount 2230

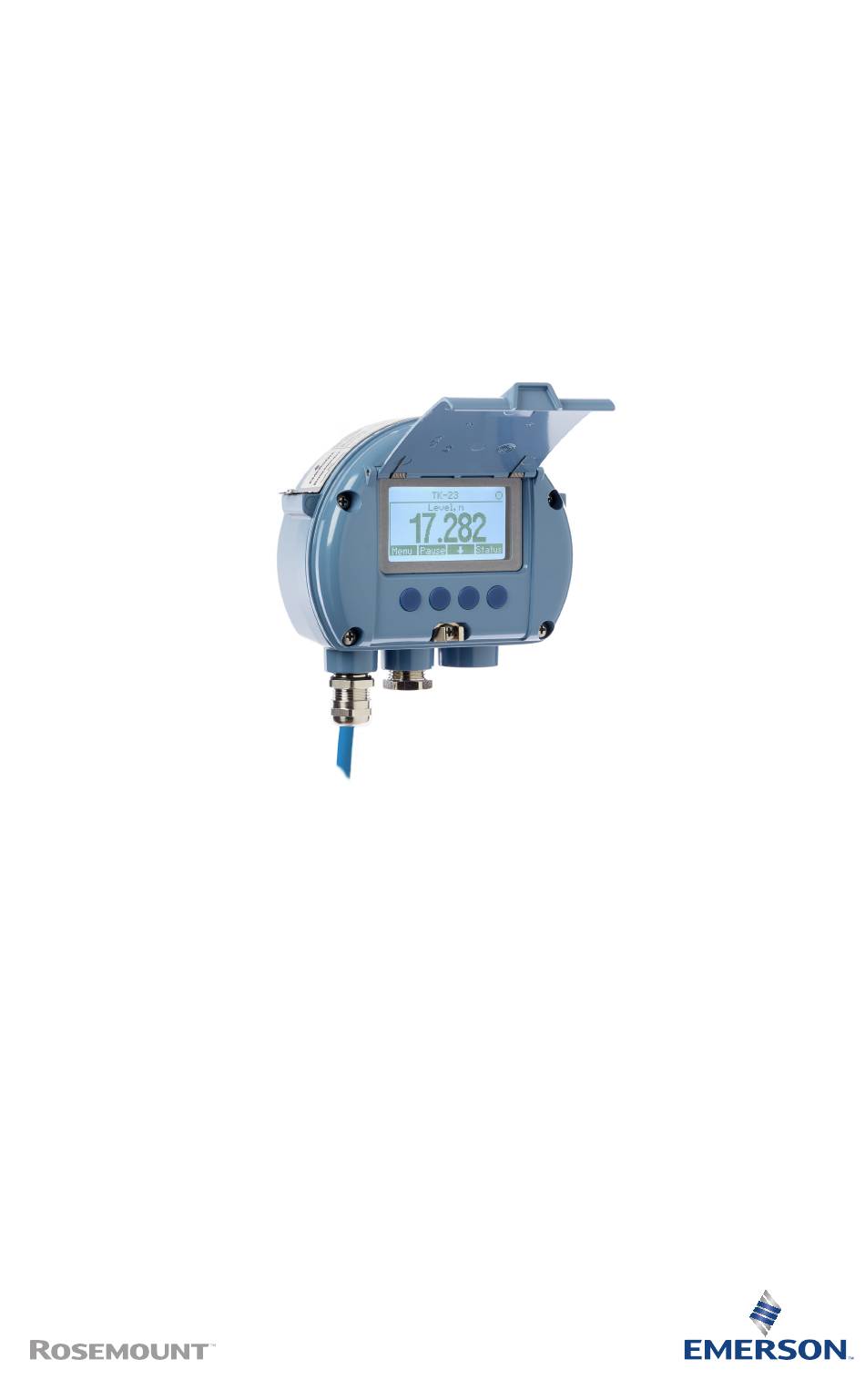

  • Page 1 Quick Start Guide 00825-0100-2230, Rev AA June 2023 Rosemount 2230 Graphical Field ™ Display...

  • Page 2: Table Of Contents

    Quick Start Guide June 2023 Contents About this guide........................... 3 Overview............................6 General information........................9 Installation..........................10 Configuration and operation....................26 Emerson.com/Rosemount...

  • Page 3: About This Guide

    For equipment service or support needs, contact your local Emerson representative. Spare Parts Any substitution of non-recognized spare parts may jeopardize safety.
  • Page 4 Make sure the main power to the Rosemount 2410 Tank Hub is off and the lines to any other external power source are disconnected or not powered while wiring the device.  WARNING Electrical shock could cause death or serious injury. Use extreme caution when making contact with the leads and terminals. Emerson.com/Rosemount...
  • Page 5 June 2023 Quick Start Guide  WARNING Physical access Unauthorized personnel may potentially cause significant damage to and/or misconfiguration of end users’ equipment. This could be intentional or unintentional and needs to be protected against. Physical security is an important part of any security program and fundamental in protecting your system.

  • Page 6: Overview

    Quick Start Guide June 2023 2  Overview 2.1  Components Figure 2-1: Rosemount 2230 Components A. Weather protection lid B. Display C. Menu D. Soft keys E. Activity indicator F. Cover screw (x6) G. Cable entries: two ½ - 14 NPT (optional: adapters for two M20 x 1.5)
  • Page 7 System Hub. 3. Verify that the total current consumption of devices connected to the Tankbus does not exceed 250 mA . In an Emerson Wireless system the maximum current is 200 mA. 4. Wire the devices. a) Connect field devices to the Tankbus.
  • Page 8 F Fieldbus host supporting DD4). OUNDATION See the Reference Manual for the respective field device and the Rosemount Tank Gauging System Configuration Manual (Document No. 00809-0300-5100) for more information on how to configure various Rosemount Tank Gauging devices. Emerson.com/Rosemount...

  • Page 9: General Information

    3  General information 3.1  Service support For service support contact the nearest Emerson Automation Solutions /Rosemount Tank Gauging representative. Contact information can be found on the web site www.Emerson.com. 3.2  Product certifications See the Rosemount 2230 Product Certifications document for detailed information on the existing approvals and certifications.

  • Page 10: Installation

    The Rosemount 2230 is designed for mounting on a wall or a pipe. It is important to provide space for opening the weather protection lid which prevents degradation of the LCD display due to sunlight exposure.
  • Page 11 Figure 4-1: Space Required for Opening the Lid A. Weather protection (optional) B. 93 mm (3.7 in.) 4.2  Mechanical installation 4.2.1  Mounting the graphical display The Rosemount 2230 Graphical Field Display is designed for mounting on a wall or a pipe. Quick Start Guide...
  • Page 12 Quick Start Guide June 2023 Wall mounting with bracket The Rosemount 2230 Graphical Field Display can be mounted on a wall by using the mounting kit supplied by Emerson. Procedure 1. Mount the bracket on the wall by using four M8 screws and flat washers.
  • Page 13 June 2023 Quick Start Guide 2. Attach the Rosemount 2230 display to the bracket on the wall by sliding it from the top downwards. A. Locking screw B. Bracket 3. Secure the display to the bracket by tightening the locking screw.
  • Page 14 Emerson. Procedure 1. Attach the bracket to the pipe. Ensure that the Rosemount 2230 is placed in a direction so that the display is clearly visible and wiring can be properly connected. A. 1 - 2 inches B.
  • Page 15 June 2023 Quick Start Guide 3. Attach the display to the bracket by sliding it from the top downwards. A. Locking screw B. Bracket 4. Secure the display to the bracket by tightening the locking screw. Quick Start Guide...
  • Page 16 There is an external grounding screw located at the bottom of the housing and an internal grounding screw located inside the housing, Figure 4-2. The internal ground screw is identified by a ground symbol: Figure 4-2: Grounding Screws A. Internal ground B. External ground. Cable diameter minimum 4 mm Emerson.com/Rosemount...
  • Page 17 Rosemount 2230 is not connected to ground. It merely provides electrical continuity to daisy-chained Tankbus cables. 4.3.3  Cable selection Use shielded twisted pair wiring for the Rosemount 2230 in order to comply with FISCO requirements and EMC regulations. The cables must be approved for use in hazardous areas, where applicable.
  • Page 18 Rosemount 2410 Tank Hub and a segment coupler or the last device in a daisy-chain configuration. 4.3.4  Hazardous areas When the Rosemount 2230 is installed in a hazardous area, national and local regulations and specifications in applicable certificates must be observed, see Product certifications.
  • Page 19 Other devices such as the standard version of the Rosemount 5900S Radar Level Gauge, the Rosemount 2230 Graphical Field Display, and the Rosemount 2240S Multi-input Temperature Transmitter also have built-in terminators which can easily be enabled by inserting a jumper in the terminal block when necessary.
  • Page 20 5. Connect the cable shield to the “Shield Loop Through” (X1) terminal. 6. If the Rosemount 2230 display is the last device on the Tankbus, connect a jumper for the built-in termination. 7. Replace the cover. Make sure that the sealing and the locking device for the weather protection hatch are placed in the correct positions.
  • Page 21 D. Internal grounding E. Jumper for built-in termination F. X4: Tankbus terminator G. Daisy-chain connection to other field devices Daisy-chain connection The Rosemount 2230 can be daisy-chained to other field devices via the Tankbus, see Figure 4-4. Quick Start Guide...
  • Page 22 3. Disconnect the termination jumper from the X3 terminal. Note Ensure that a terminator is enabled on the last device that is connected to the Tankbus. 4. Run the new Tankbus cable into the Rosemount 2230 compartment through a suitable gland. Emerson.com/Rosemount...
  • Page 23 8. Firmly tighten the six screws on the front cover. 4.4  LED signals and reset button The Rosemount 2230 has three LED signals that show communication and status. Quick Start Guide...
  • Page 24 Reset button You may use the Reset button to force a restart of the Rosemount 2230 display. Restarting the Rosemount 2230 has the same effect as switching off and on the power supply. The Restart option will connect the Rosemount 2230 display to the Rosemount 2410 Tank Hub and perform start-up tests of software and hardware.
  • Page 25 The Simulate switch is used for simulation of Field Diagnostics conditions. It may be useful when testing the alarm setup. Write protect switch The Write Protect switch can be used to protect the Rosemount 2230 from unintentional changes of the current configuration. 4.6 ...

  • Page 26: Configuration And Operation

    The Rosemount 2230 is a graphical display designed for viewing tank data in tough environments. It features adjustable LCD contrast, backlight, multi-language support, and communication failure indication. The Rosemount 2230 can be used in systems based on the Rosemount 2410 Tank Hub as well as in F Fieldbus ™...
  • Page 27 Status presented measurement variable. A symbol in the upper right-hand corner of the display indicates that the Rosemount 2230 is operating and communicates on the Tankbus. Adjust the display contrast The Rosemount 2230 automatically adjusts display contrast to optimize for changes of ambient temperature. The contrast can be manually adjusted when further fine-tuning is desired.
  • Page 28 DD Methods for device configuration, the latest DD versions can be found on F website at Fieldbus.org. OUNDATION’s 5.1.3  Activity and alarm indication The Rosemount 2230 display shows an alarm warning symbol for simulated or manual measurement values as illustrated in Figure 5-2 Figure 5-3.
  • Page 29 Figure 5-4: Activity Indicator A. Normal operation B. Communication problems 5.1.4  Start-up procedure The Rosemount 2230 display performs a test of the LCD screen when powered on. Figure 5-5: Test Screen After the LCD test is done the start-up screen will appear.
  • Page 30 The TankMaster software package provides you with powerful and easy-to-use tools for installation and configuration of a Rosemount Tank Gauging system. See the Rosemount Tank Gauging System Configuration Manual for more information on how to configure Auxiliary Tank Devices (ATD) such as the Rosemount 2230. Emerson.com/Rosemount...
  • Page 31 June 2023 Quick Start Guide 5.3  Menu tree The Rosemount 2230 lets you navigate in a menu structure as illustrated in Figure 5-8. Figure 5-8: Rosemount 2230 Menu Tree Quick Start Guide...
  • Page 32 June 2023 5.4  Main menu In normal operation the Rosemount 2230 display is in View Mode and shows the current measurement values for the selected tanks. In case of an alarm, a graphical symbol appears on the screen. Figure 5-9: Rosemount 2230 Graphical Field Display in View Mode A.
  • Page 33 Example 5. Press the OK softkey to select the desired option. Then the Rosemount 2230 returns to View Mode. Example For example, using the Two Values option will present a view like this: Quick Start Guide...
  • Page 34 Quick Start Guide June 2023 Emerson.com/Rosemount...
  • Page 35 June 2023 Quick Start Guide 5.6  Options menu In the Options menu, the following items are available for a Rosemount 2230 connected to a Rosemount 2410 Tank Hub: • Variables • Tanks • Units for Display • Toggle Time • Language Not available in F Fieldbus systems without Rosemount 2410 Tank ™...
  • Page 36 4. In the Options Menu, use the softkeys to navigate to the desired menu item. In F Fieldbus systems some options are not ™ OUNDATION available. This is indicated as illustrated below: 5. Press the softkey to continue to the selected menu. Emerson.com/Rosemount...
  • Page 37 June 2023 Quick Start Guide 5.6.2  Variables In the Select Variables menu , you can choose which variables to present in View Mode. The following options are available: Configure a common set of variables to be Tank Pos 1-10 presented for all tanks. Tank Position refers to the position in the tank database of the Rosemount 2410 Tank Hub.
  • Page 38 Quick Start Guide June 2023 4. In the Select Variables list, choose the variables you wish to show in View Mode. 5. When finished, press OK to return to View Mode. Emerson.com/Rosemount...
  • Page 39 June 2023 Quick Start Guide Table 5-2: Selectable Variables Variable Description Level Product level in the displayed tank Ullage Ullage is the distance from the Tank Reference Point to the product surface Level Rate How the product in the tank moves when emptying or filling the tank Signal Strength The signal strength of the radar level gauge...
  • Page 40 Variables to present in the View Mode can also be configured by using the TankMaster WinSetup configuration program, a 475 Field Communicator, the AMS Device Manager or other host system. For more information see the Rosemount Tank Gauging System Configuration Manual (Document no. 00809-0300-5100). Emerson.com/Rosemount...
  • Page 41 June 2023 Quick Start Guide 5.6.3  Select tanks menu In the Select Tanks menu , you can specify which tanks to show in View Mode. The following items are available: View all tanks that are configured in the Tank Default Database of the 2410 Tank Hub. Display all available tanks in View Mode.
  • Page 42 Quick Start Guide June 2023 4. Use the softkeys to navigate to the desired tank. 5. Press the On/Off softkey to select the tank. 6. When finished, press the OK softkey to return to View Mode. Emerson.com/Rosemount...
  • Page 43 June 2023 Quick Start Guide 5.6.4  Set the measurement units for displayed variables In the Units for Display menu, you can see which measurement units that are used for the displayed variables. To change measurement unit: Procedure 1. In View Mode, press Menu → Options → Units for Display. 2.
  • Page 44 Quick Start Guide June 2023 Measurement units Table 5-3: Available Measurement Units for the Rosemount 2230 Variable Available Measurement Units Auto The display is controlled by the Multiple Analog Output Block configuration. Length The following units are available for Level and Ullage: •...
  • Page 45 June 2023 Quick Start Guide Table 5-3: Available Measurement Units for the Rosemount 2230 (continued) Variable Available Measurement Units Pressure The following units are available for Pressure: • • Pascal • Kilo pascal • Atmosphere • • Bar Absolute • Bar Gauge •...
  • Page 46 Procedure 1. From View Mode, press Menu → Options → Toggle Time. 2. Use the softkeys to increase or decrease the Toggle Time. 3. Press the OK softkey to select the desired value and return to View Mode. Emerson.com/Rosemount...
  • Page 47 June 2023 Quick Start Guide 5.6.6  Set the display language Procedure 1. From View Mode, press Menu → Options → Language. 2. Use the softkeys and navigate to the preferred language option: 3. Press the OK softkey to select the language and return to View Mode.
  • Page 48 In the Service Menu, the following items are available: • Status • Custody Transfer View (11) • Start Proof Test • LCD Test • LCD Contrast • Restart • Factory Settings (11) • About Not available in F Fieldbus systems ™ (11) OUNDATION Emerson.com/Rosemount...
  • Page 49 June 2023 Quick Start Guide 5.7.1  Choose a service menu item Procedure 1. In View Mode, press the Menu button to open the Main menu. 2. Use the softkeys to navigate to the Service option. 3. Press the softkey. 4. Use the softkeys to navigate to the desired menu item.
  • Page 50 Quick Start Guide June 2023 5.7.2  View the current device status The Status screen shows the current status of the Rosemount 2230. Various error messages and warnings can be displayed in case of software or hardware malfunctions. Procedure 1. In the View Mode, press Menu → Service → Status.
  • Page 51 June 2023 Quick Start Guide 5.7.3  Open the custody transfer view The Custody Transfer view presents Level and Liquid Temperature for each tank. Procedure In View Mode, press Menu → Service → Custody Transfer. • Press the Esc softkey to return to View Mode. • Press the Pause softkey to pause the display toggling.
  • Page 52 Note that the relay and/or analog output is active during the proof test. Procedure 1. In the Display Tank view, select Menu to open the Main Menu view. 2. Select the Service option. 3. Select Start proof test. 4. Enter the password. Note that default password is “000”. Emerson.com/Rosemount...
  • Page 53 June 2023 Quick Start Guide 5. Choose the desired tank. 6. Select OK to continue and follow the instructions on the display. Quick Start Guide...
  • Page 54 5.7.5  Open the LCD test view In the LCD test two checkered patterns will be displayed testing the whole display area. Procedure In View Mode, press Menu → Service → LCD Test. After the test is completed, the display will return to normal View Mode. Emerson.com/Rosemount...
  • Page 55 June 2023 Quick Start Guide 5.7.6  Adjust the LCD contrast The Rosemount 2230 automatically adjusts display contrast to optimize for changes of ambient temperature. The contrast can be manually adjusted when further fine-tuning is desired. Procedure 1. In View Mode, press Menu → Service → LCD Contrast.
  • Page 56 5.7.7  Restart the Rosemount 2230 The Restart option will perform start-up tests of software and hardware. In a Rosemount Tank Gauging system it will connect the Rosemount 2230 to the Rosemount 2410 Tank Hub. Procedure 1. In View Mode, press Menu → Service.
  • Page 57 Procedure 1. In View Mode, press Menu → Service. 2. Choose the Factory Settings option and press the softkey. 3. Press the OK softkey to restore the Rosemount 2230 to factory settings, or press the Esc softkey to cancel. Quick Start Guide...
  • Page 58 Quick Start Guide June 2023 5.7.9  View the about information The About option will present the current software version and the Rosemount 2230 serial number. Procedure 1. In View Mode, press Menu → Service. 2. Choose the About option and press the softkey.
  • Page 59 June 2023 Quick Start Guide 5.8  475 Field Communicator menu tree The Rosemount 2230 can be configured by using a 475 Field Communicator. Figure 5-11 shows the available options for configuration and service. Figure 5-11: Field Communicator Menu Tree 1 Device Status...
