Fimco ATV-25-71-QR Owner's Manual

Owner's Manual
Model: ATV-25-71-QR (5302321)
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden/ATV sprayer. Please read it carefully, as it furnishes
information which will help you achieve years of trouble-free
operation.
Warranty/Parts/Service
Products are warranted for one year from date of purchase
against manufacturer or workmanship defects.
Commercial users have a 90 day warranty.
Your authorized dealer is the best source of replacement parts
and service. To obtain prompt, efficient service, always
remember to give the following information...
- Correct Part Description and/or part number.
- Model number/Serial number of your sprayer.
Part descriptions and part numbers can be obtained from the
illustrated parts list section(s) of this manual.
Whenever you need parts or repair service, contact your
distributor/dealer first. For warranty work, always take your
original sales slip, or other evidence of purchase date, to your
distributor/dealer.

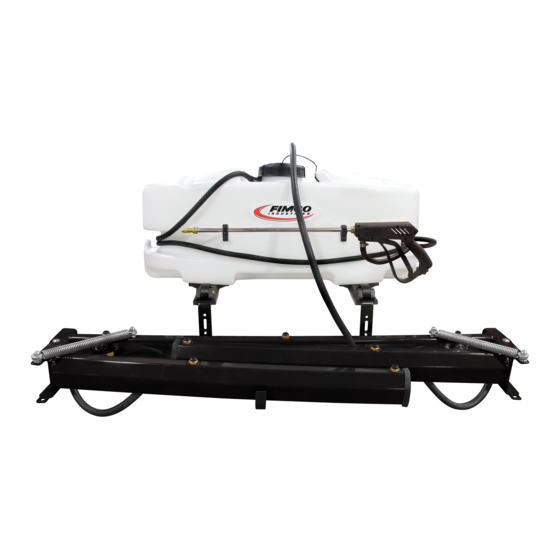

(25 Gallon 'Deluxe' Lawn & Garden/ATV Sprayer)
Technical Specifications
• 25 Gal. Corrosion-Resistant Polyethylene Tank
• 12 Volt Diaphragm Pump, 3.8 g.p.m. - 45 p.s.i.
• 15 Ft. Handgun Hose
• 25 Ft. max. vertical throw, 35 Ft. max. horizontal throw
• Pressure Gauge (Liquid-Filled, 0-100 p.s.i.)
• "No Drip" Check-Valve Diaphragm Nozzles
• Pressure Adjust Line w/ON-OFF Control Valve
Caution: Always check the vehicle load rating before
using this sprayer. The loaded weight of the sprayer and
boom assembly is about 250 lbs. when the tank is full.
Care must be taken not to flip the vehicle over
backwards, especially when starting or accelerating.
*** IMPORTANT REMINDER ***
Inlet from Tank
A
This unit comes with an On/Off (shut-off)
valve located at the inlet location of the
tank, towards the underside. (See Detail A).
You must make sure the valve is in the
"open" position before using your unit.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5008431 (12/14)]
Detail A
Filter/Screen
"ON/OFF" Valve
Printed in the U.S.A.
