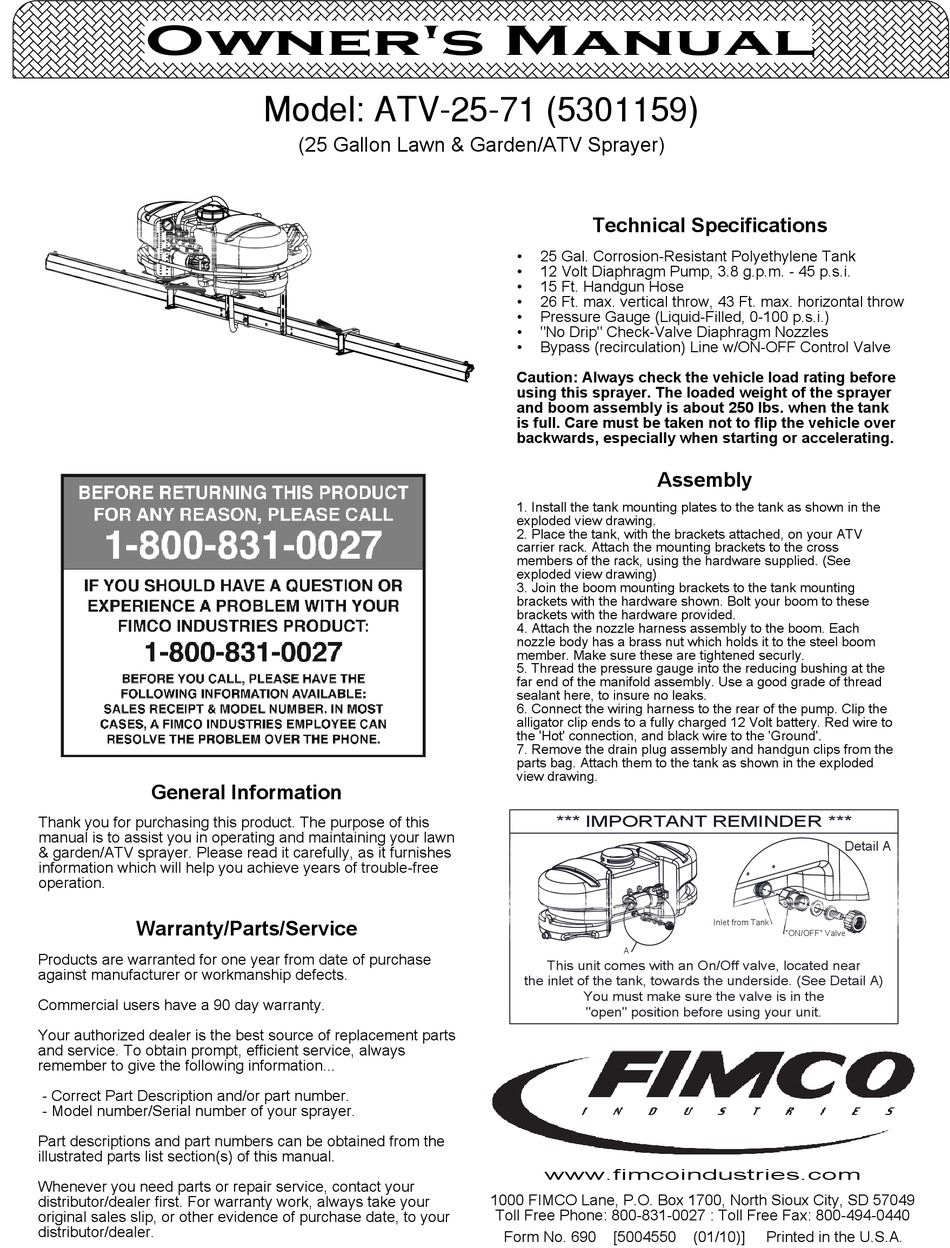

Fimco ATV-25-71 Owner's Manual

Owner's Manual

General Information

Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden/ATV sprayer. Please read it carefully, as it furnishes
information which will help you achieve years of trouble-free
operation.

Warranty/Parts/Service

Products are warranted for one year from date of purchase
against manufacturer or workmanship defects.
Commercial users have a 90 day warranty.
Your authorized dealer is the best source of replacement parts
and service. To obtain prompt, efficient service, always
remember to give the following information...
- Correct Part Description and/or part number.
- Model number/Serial number of your sprayer.
Part descriptions and part numbers can be obtained from the
illustrated parts list section(s) of this manual.
Whenever you need parts or repair service, contact your
distributor/dealer first. For warranty work, always take your
original sales slip, or other evidence of purchase date, to your
distributor/dealer.

(25 Gallon Lawn & Garden/ATV Sprayer)

Technical Specifications

• 25 Gal. Corrosion-Resistant Polyethylene Tank
• 12 Volt Diaphragm Pump, 3.8 g.p.m. - 45 p.s.i.
• 15 Ft. Handgun Hose
• 26 Ft. max. vertical throw, 43 Ft. max. horizontal throw
• Pressure Gauge (Liquid-Filled, 0-100 p.s.i.)
• "No Drip" Check-Valve Diaphragm Nozzles
• Bypass (recirculation) Line w/ON-OFF Control Valve
Caution: Always check the vehicle load rating before
using this sprayer. The loaded weight of the sprayer
and boom assembly is about 250 lbs. when the tank
is full. Care must be taken not to flip the vehicle over
backwards, especially when starting or accelerating.

Assembly

1. Install the tank mounting plates to the tank as shown in the
exploded view drawing.
2. Place the tank, with the brackets attached, on your ATV
carrier rack. Attach the mounting brackets to the cross
members of the rack, using the hardware supplied. (See
exploded view drawing)
3. Join the boom mounting brackets to the tank mounting
brackets with the hardware shown. Bolt your boom to these
brackets with the hardware provided.
4. Attach the nozzle harness assembly to the boom. Each
nozzle body has a brass nut which holds it to the steel boom
member. Make sure these are tightened securly.
5. Thread the pressure gauge into the reducing bushing at the
far end of the manifold assembly. Use a good grade of thread
sealant here, to insure no leaks.
6. Connect the wiring harness to the rear of the pump. Clip the
alligator clip ends to a fully charged 12 Volt battery. Red wire to
the 'Hot' connection, and black wire to the 'Ground'.
7. Remove the drain plug assembly and handgun clips from the
parts bag. Attach them to the tank as shown in the exploded
view drawing.
*** IMPORTANT REMINDER ***
A
This unit comes with an On/Off valve, located near
the inlet of the tank, towards the underside. (See Detail A)
You must make sure the valve is in the
"open" position before using your unit.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
Form No. 690 [5004550
Detail A
Inlet from Tank
"ON/OFF" Valve
(01/10)] Printed in the U.S.A.
