General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden ATV sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your
unit, as it will be required to validate
any warranty service.
Warranted against manufacturer or
workmanship defects from date of
purchase with copy of receipt:
Homeowner Usage: Sprayer-One Year and Pump-Two Years.
Commercial Usage: Sprayer and Pump-90 Days.

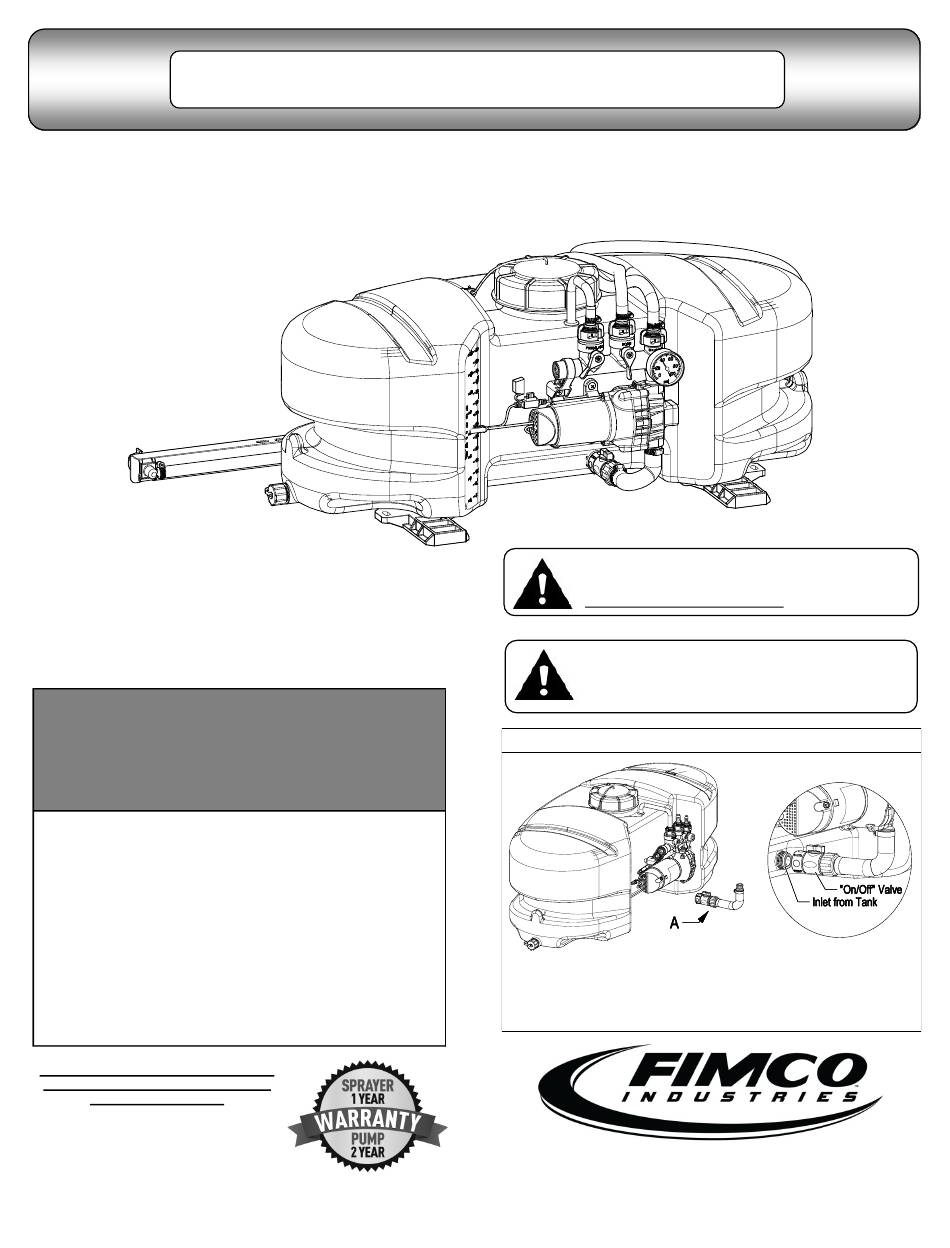

OWNER'S MANUAL

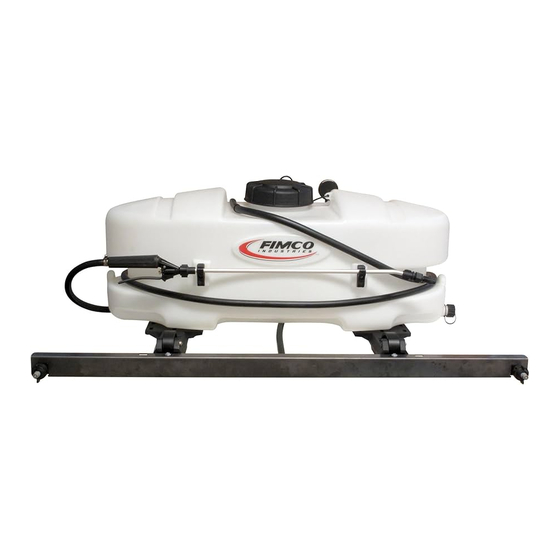

Model: ATV-15-2-QR (5302318)
(15 Gallon Lawn & Garden/ATV Sprayer)
WARNING:
Cancer and Reproductive Harm.
www.P65Warnings.ca.gov
WARNING:
To reduce the risk of injury, the
user must read and understand the operator's
manual before using this product.
***IMPORTANT REMINDER***
This sprayer comes with an On/Off (shut-off) valve
located at the inlet location of the tank, towards the
underside. (See Detail A). Make sure the valve is in
the "open" position before using this sprayer.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5194823
Detail A
(10/22)]
Page 1
Advertisement
Related Manuals for Fimco ATV-15-2-QR
Summary of Contents for Fimco ATV-15-2-QR
- Page 1 Warranted against manufacturer or workmanship defects from date of www.fimcoindustries.com purchase with copy of receipt: 1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049 Homeowner Usage: Sprayer-One Year and Pump-Two Years. Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440 [5194823 (10/22)] Commercial Usage: Sprayer and Pump-90 Days.
- Page 2 Calibration and Maintenance ..........7 Boom Exploded View/Parts List ........13 Tank Care, Storing and Winter Storage ........8 Warranty ................14 Sprayer Dimensions ..............8 Model: ATV-15-2-QR (5302318) (15 Gallon Lawn & Garden/ATV Sprayer) Technical Specifications • 15 Gallon Corrosion-Resistant Polyethylene Tank •...
- Page 3 Contents of Sprayer Carton: Owner’s Manual Tank/Frame Pre-Assembly 2-Nozzle Rigid Boom Tank Lid & Lanyard Contents of Parts Bag Contents of Bracket Kit #5278140 #5278139 Page 3...
- Page 4 Assembly Procedure Step 1 • Make sure the contents of the sprayer’s carton match the items shown on page 3 of the manual. • Follow the steps on pages 4 & 5 to properly assemble the sprayer. Normally, the sprayer will be mounted on an ATV with the pump assembly at the operator’s back and the spray wand will be at the rear of the unit.
- Page 5 Assembly Procedure Step 4 After boom is attached to the boom brackets, locate the 43” hose and (2) hose clamps from the parts bag. Place the hose clamps over each end of the hose loosely. Slip the ends of the hose over the hose barbs on both the manifold and the ‘Tee’...
- Page 6 IMPORTANT: Remove tank lid and be sure the tank is clean and free of any foreign material. Rinse tank out of any tank residue before filling with water to test. Testing the Sprayer NOTE: It is VERY important to test this sprayer with plain water before actual spraying is attempted. This will enable you to check the sprayer for leaks without the possibility of losing any expensive chemicals.
- Page 7 Drain and then refill half full, add the recommended amount of a good quality tank cleaner, such as FIMCO Tank Neutralizer and Cleaner. (If no tank cleaner is available, you may sub- stitute dish soap for this step, about 1-2 oz.
- Page 8 Tank Care & Maintenance Warning: Do not use the tank as a container for fuel oils, kerosene, gasoline or any other petroleum distillate product. All polyole- fins are softened and permeated by such products. In an enclosed area the vaporization of these materials from the outside sur- face of the tank could create a dangerous condition.
- Page 9 Intake/Siphon Tube/Screen Detail of a Typical L&G/ATV Sprayer (not including the ‘EC’Units) ‘Cut’ View of a ‘Typical’ Tank (looking inside) The suction line of your sprayer should contain a ‘siphon tube’ or intake tube which should be rotated so that it just touches the bottom of the tank surface. (see Detail Views). Reach in and rotate it, as needed, if not already in this position.
- Page 10 #5168836 DON’T • • Use to pump bleach. Clean and rinse your pump after each use with Fimco Tank Neu- • tralizer. Use to pump petroleum products such as diesel fuel, gasoline or • Winterize your pump or sprayer by rinsing, draining and running kerosene.
- Page 11 Before Troubleshooting or Attempting to Service the Pump: Review Troubleshooting Chart: Do Not attempt to repair until steps below are followed. Personal Protective Gear: Wear protective gear when servicing pump. Disconnect Power: Disconnect the power to the pump and relieve the pressure from the system. ...
- Page 12 Exploded View: ATV-15-2-QR (5302318) Manifold Detail See Intake Detail Intake Assembly Detail Manifold Assembly Detail This sprayer comes with an On/Off (shut-off) valve located at the inlet location of the tank, towards the underside. You must make sure the valve is in the “open” position before using your sprayer.
- Page 13 Parts List: ATV-15-2-QR (5302318) 2-Nozzle Boom Assembly (5278237) Exploded View/Parts List Nozzle Assembly Opposite side has typical setup Based on the minimum overlap required to obtain uniform distribution with 120° tips and 40” spacing. Suggested Minimum Spray Height: 18”-20” above what is being sprayed (to plant, not ground).
- Page 14 WHAT REMEDIES ARE AVAILABLE UNDER THIS LIMITED WARRANTY. If the conditions set forth above are fulfilled and the Equipment or any part thereof is found to be defective, Fimco, Ind. shall, at its own cost, and at its option, either repair or replace the defective Equipment or part.
