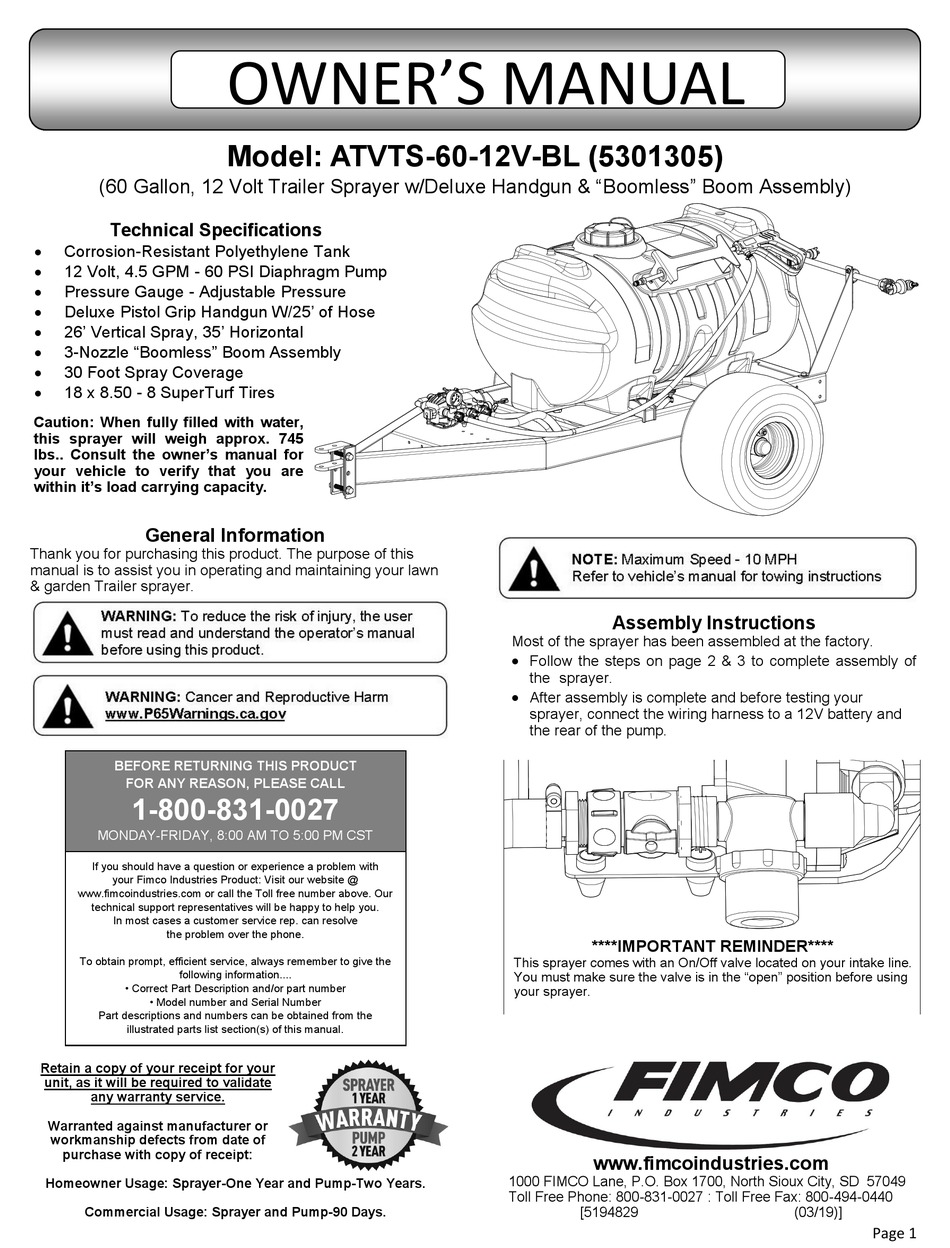

Fimco ATVTS-60-12V-BL Owner's Manual

(60 Gallon, 12 Volt Trailer Sprayer w/Deluxe Handgun & "Boomless" Boom Assembly)
Technical Specifications

Corrosion-Resistant Polyethylene Tank

12 Volt, 4.5 GPM - 60 PSI Diaphragm Pump

Pressure Gauge - Adjustable Pressure

Deluxe Pistol Grip Handgun W/25' of Hose

26' Vertical Spray, 35' Horizontal

3-Nozzle "Boomless" Boom Assembly

30 Foot Spray Coverage

18 x 8.50 - 8 SuperTurf Tires
Caution: When fully filled with water,
this sprayer will weigh approx. 745
lbs.. Consult the owner's manual for
your vehicle to verify that you are
within it's load carrying capacity.
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden Trailer sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your
unit, as it will be required to validate
any warranty service.
Warranted against manufacturer or
workmanship defects from date of
purchase with copy of receipt:
Homeowner Usage: Sprayer-One Year and Pump-Two Years.
Commercial Usage: Sprayer and Pump-90 Days.
OWNER'S MANUAL
Model: ATVTS-60-12V-BL (5301305)
Assembly Instructions
Most of the sprayer has been assembled at the factory.

Follow the steps on page 2 & 3 to complete assembly of
the sprayer.

After assembly is complete and before testing your
sprayer, connect the wiring harness to a 12V battery and
the rear of the pump.
****IMPORTANT REMINDER****
This sprayer comes with an On/Off valve located on your intake line.
You must make sure the valve is in the "open" position before using
your sprayer.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5194829 (03/19)]
Page 1
