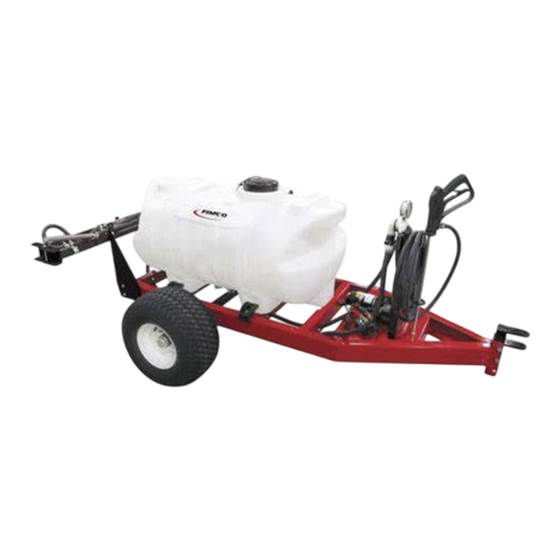

(60 Gallon, 12 Volt Trailer Sprayer w/Deluxe Handgun & 7-Nozzle Boom Assembly)
Technical Specifications
12 Volt, 60 PSI, 4.5 GPM Diaphragm Pump
Deluxe Pistol Grip Handgun W/25' of Hose
26' Vertical Spray, 35' Horizontal
7-Nozzle Boom w/Breakaway Outers
Corrosion-Resistant Nylon Nozzles
Check Valve Strainers, 50 Mesh, 5 PSI
140" Spray Coverage
Pneumatic Tires, 18 x 8.50 - 8
Maximum Speed - 10 MPH
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden Trailer sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your
unit, as it will be required to validate
any warranty service.
Warranted against manufacturer or
workmanship defects from date of
purchase with copy of receipt:
Homeowner Usage: Sprayer-One Year and Pump-Two Years.
Commercial Usage: Sprayer and Pump-90 Days.

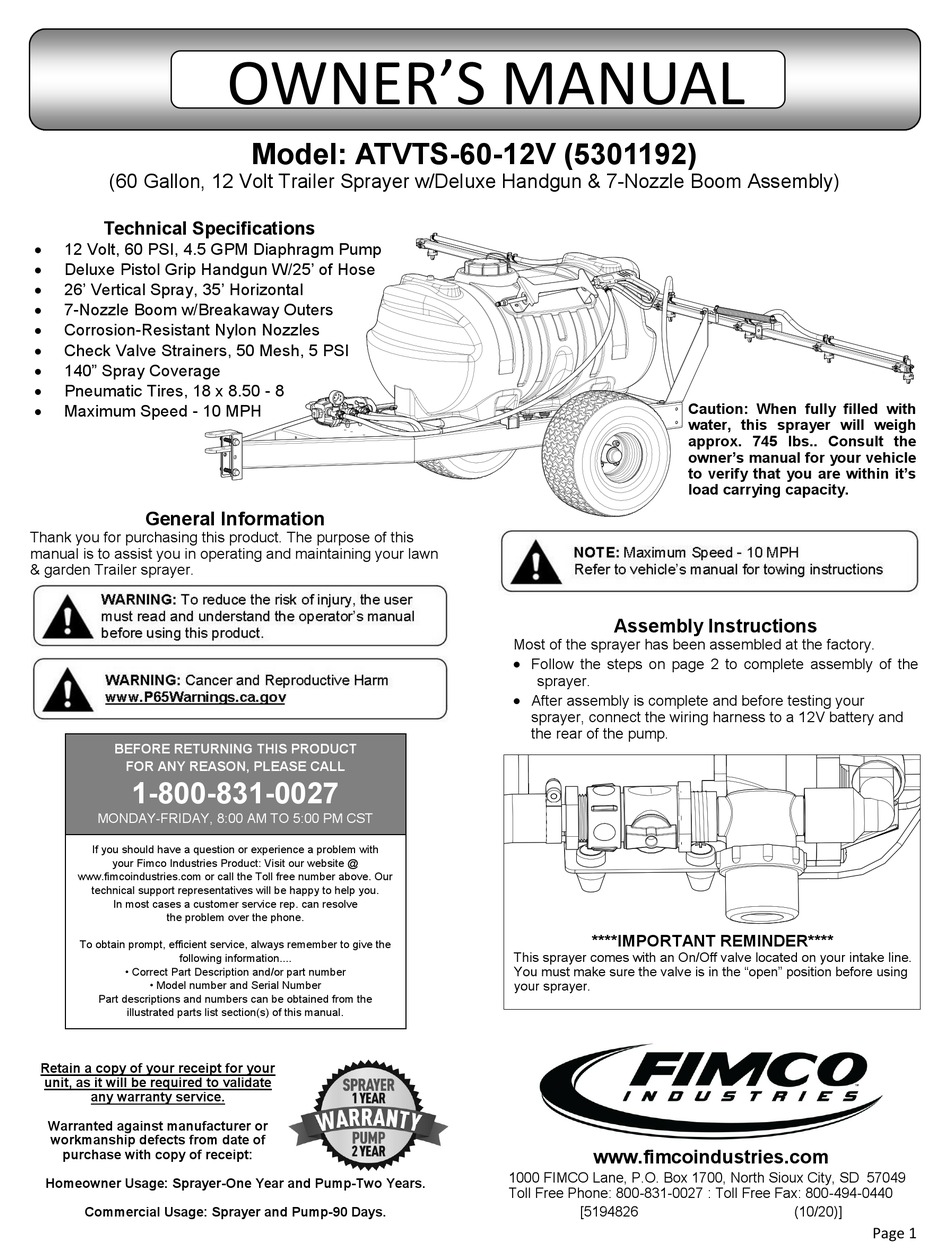

OWNER'S MANUAL
Model: ATVTS-60-12V (5301192)
Assembly Instructions
Most of the sprayer has been assembled at the factory.
Follow the steps on page 2 to complete assembly of the
sprayer.
After assembly is complete and before testing your
sprayer, connect the wiring harness to a 12V battery and
the rear of the pump.
****IMPORTANT REMINDER****
This sprayer comes with an On/Off valve located on your intake line.
You must make sure the valve is in the "open" position before using
your sprayer.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5194826
Caution: When fully filled with
water, this sprayer will weigh
approx. 745 lbs.. Consult the
owner's manual for your vehicle
to verify that you are within it's
load carrying capacity.
(10/20)]
Page 1
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Fimco ATVTS-60-12V
Summary of Contents for Fimco ATVTS-60-12V
- Page 1 Warranted against manufacturer or workmanship defects from date of www.fimcoindustries.com purchase with copy of receipt: 1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049 Homeowner Usage: Sprayer-One Year and Pump-Two Years. Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440 [5194826 (10/20)] Commercial Usage: Sprayer and Pump-90 Days.
- Page 2 Step 1: Step 2: Attach the axle to the trailer frame with (4) bolts & nuts as shown. Slide a wheel onto the hub of the axle and use the wheel nuts to hold the wheel in place. Repeat for other side. Step 3: Step 4: Center the ‘center boom’...
-
Page 3: Operation
IMPORTANT: Remove tank lid and be sure the tank is clean and free of Manifold Valves CLOSED any foreign material. Rinse tank out of any tank residue before filling with water to test. Testing the Sprayer NOTE: It is VERY important for you to test your sprayer with plain water before actual spraying is attempted. -
Page 4: Speed Chart
Drain and then refill half full, add the recommended Speed in M.P.H. amount of a good quality tank cleaner, such as FIMCO Tank Neutralizer and Cleaner. (If (Miles Per Hour) 100 Ft. -
Page 5: Troubleshooting The Pump
1/2” Hose Barb Port Kit Fitting #5168833 DON’T Use to pump bleach. Clean and rinse your pump after each use with Fimco Tank Use to pump petroleum products such as diesel fuel, Neutralizer gasoline or kerosene ... -
Page 6: Troubleshooting
Checking the Pressure Switch If your motor is not running and you’ve checked the following: for loose wiring connections, fuse, the switch on the lead wire was “ON” and made sure you were connected to a fully charged battery and everything is fine, but the motor won’t run, then it’s time to check to see if the pressure switch is bad. -
Page 7: Exploded View
Exploded View: ATVTS-60-12V (5301192) Refer to Parts List Next Page for Part Numbers Boom Exploded Pump Assembly View/Parts List See Below See Page 9 Boom Attachment Detail See Next Page Axle Attachment Detail See Next Page Hub Detail See Next Page... - Page 8 Parts List: ATVTS-60-12V (5301192) * * Available ONLY in Complete Assembly Axle Attachment Hub Detail Boom Attachment Page 8...
- Page 9 Exploded View/Parts List 7-Nozzle (Generic) Boom Assembly Opposite side has typical hardware setup Hinge Detail Clamp Bag of 7: 5277730 Elbow Cross 110° wide, tapered flat spray angle with air induction tech- nology for better drift management Based on the minimum overlap required to obtain uniform ...
-
Page 10: Warranty
WHAT REMEDIES ARE AVAILABLE UNDER THIS LIMITED WARRANTY. If the conditions set forth above are fulfilled and the Equipment or any part thereof is found to be defective, Fimco, Ind. shall, at its own cost, and at its option, either repair or replace the defective Equipment or part.
