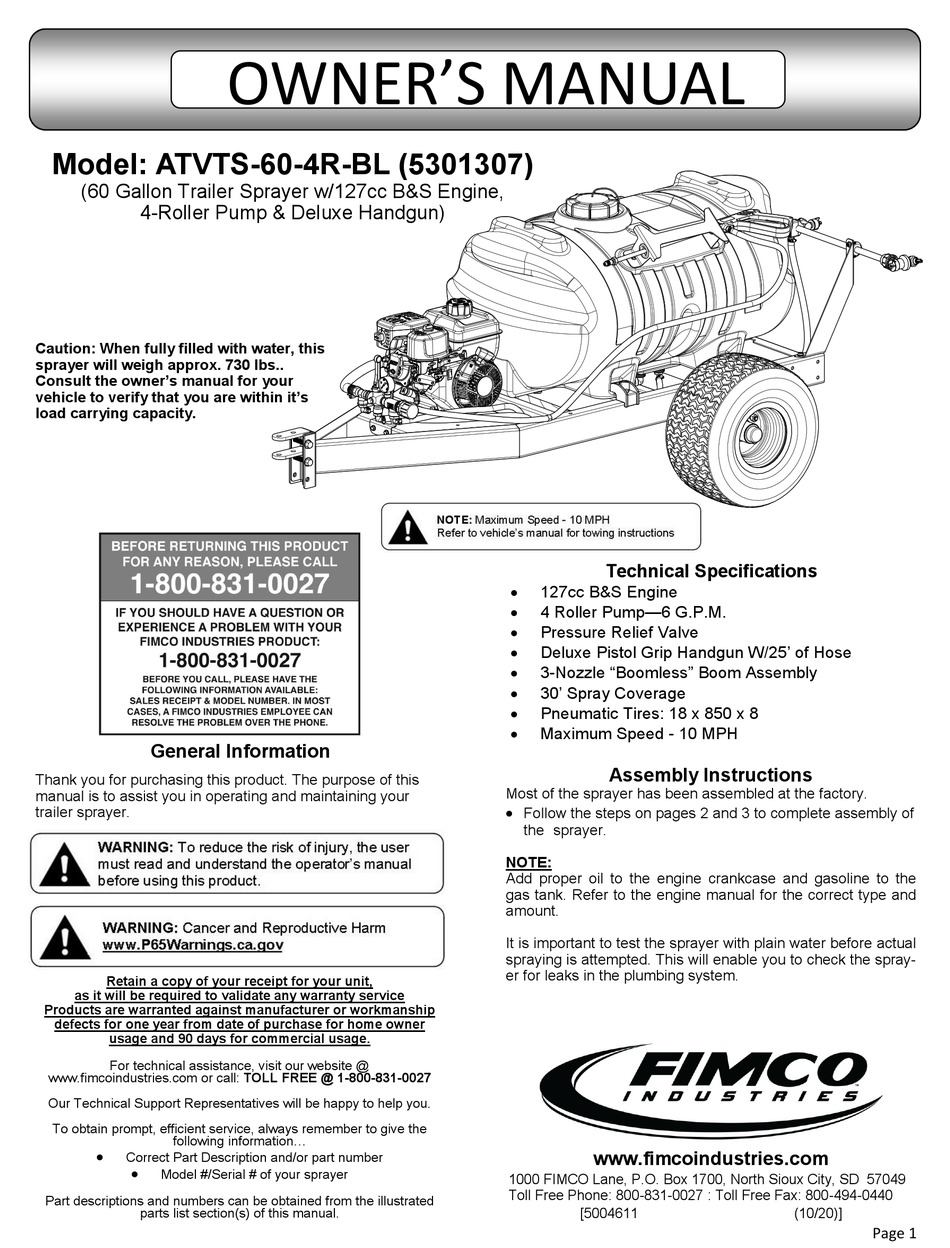

Model: ATVTS-60-4R-BL (5301307)
(60 Gallon Trailer Sprayer w/127cc B&S Engine,
4-Roller Pump & Deluxe Handgun)
Caution: When fully filled with water, this
sprayer will weigh approx. 730 lbs..
Consult the owner's manual for your
vehicle to verify that you are within it's
load carrying capacity.
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
trailer sprayer.
Retain a copy of your receipt for your unit,
as it will be required to validate any warranty service
Products are warranted against manufacturer or workmanship
defects for one year from date of purchase for home owner
usage and 90 days for commercial usage.
For technical assistance, visit our website @
www.fimcoindustries.com or call: TOLL FREE @ 1-800-831-0027
Our Technical Support Representatives will be happy to help you.
To obtain prompt, efficient service, always remember to give the
following information...
Correct Part Description and/or part number
Model #/Serial # of your sprayer
Part descriptions and numbers can be obtained from the illustrated
parts list section(s) of this manual.
OWNER'S MANUAL
Technical Specifications
127cc B&S Engine
4 Roller Pump—6 G.P.M.
Pressure Relief Valve
Deluxe Pistol Grip Handgun W/25' of Hose
3-Nozzle "Boomless" Boom Assembly
30' Spray Coverage
Pneumatic Tires: 18 x 850 x 8
Maximum Speed - 10 MPH
Assembly Instructions
Most of the sprayer has been assembled at the factory.
Follow the steps on pages 2 and 3 to complete assembly of
the sprayer.
NOTE:
Add proper oil to the engine crankcase and gasoline to the
gas tank. Refer to the engine manual for the correct type and
amount.
It is important to test the sprayer with plain water before actual
spraying is attempted. This will enable you to check the spray-
er for leaks in the plumbing system.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5004611
(10/20)]
Page 1
Advertisement
Related Manuals for Fimco ATVTS-60-4R-BL
Summary of Contents for Fimco ATVTS-60-4R-BL
- Page 1 Correct Part Description and/or part number Model #/Serial # of your sprayer 1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049 Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440 Part descriptions and numbers can be obtained from the illustrated parts list section(s) of this manual.
- Page 2 Step 1: Attach the axle to the trailer frame with (4) bolts & nuts as shown. Step 2: Step 2: Slide a wheel onto the hub of the axle and use the wheel nuts to hold the wheel in place. Re- peat for other side.
- Page 3 End Nozzle Information “On/Off” Valve Positions (5275122) This nozzle mounting stem Has a ratcheting motion. Valve “Open” Valve “Closed” ** Each “click” of the ratcheting motion is approx. 15° ** 15° For proper/optimal spray coverage, The nozzle must be at a 15° angle Service Position On/Off Valve Knob The 15°...
-
Page 4: Operation
Priming the pump IMPORTANT: Remove tank lid and be sure the tank is To help prime the pump, keep the inlet or suction line as short as clean and free of any foreign material. Rinse tank out possible with a minimum of bends, elbows and kinks. Make sure all of any tank residue before filling with water to test. - Page 5 100 Ft. 200 Ft. 300 Ft. good quality tank cleaner, such as FIMCO Tank Neutralizer and 68 sec. Cleaner. (If no tank cleaner is available, you may substitute dish soap for this step, about 1-2 oz. per gallon). Turn pump on and circulate through system for 15 minutes and then spray out through boom and handgun nozzles.
-
Page 6: Troubleshooting
Roller Pump General Safety Information Use a pressure relief device on the discharge side of the Disconnect power before servicing. pump to prevent damage from pressure buildup when the 10. Release all pressure within the system before servicing any pump discharge is blocked or otherwise closed and the pow- component. -
Page 7: Exploded View
Exploded View: ATVTS-60-4R-BL (5301307) Refer to Parts List next page for Part Numbers See Page 8 for Engine/Pump Assembly See Below for Exploded View of Plumbing Components See Page 9 for Axle Attachment & Hub Detail to Handgun Refer to Parts List... - Page 8 Parts List: ATVTS-60-4R (5301306) * *: Cap and bowl, ONLY available in complete assembly Engine/Pump Assembly (5278061) Strainer Gasket & Screen Refer to Parts List Items #6 & #7 are not part of the above engine/pump assembly for Part Numbers See above for part numbers Page 8...
- Page 9 Axle Attachment Hub Detail Refer to Parts List Previous Page for Part Numbers 1/2” Bulkhead Fitting (TF50DTN) (Ref. #1.1) Boomless “Wet” Boom Assembly Exploded View/Parts List (5275260) Center Nozzle End Nozzle Assembly Assembly #5275123 #5275122 The (3) nozzles are fixed at 17-1/2” spacing ...
- Page 10 1/2” NPT (F) Spray Line Connection 3/4” NPT (F) Continuous By-Pass Connection Valves may be connected w/close nipples for multiple section spray control Ref. # Fimco # Mfg. Part # Description Qty. 5002476 CP36303-PP Poly Body (AA6B) ♦ ♦...
- Page 11 NOTES Page 11...
-
Page 12: Warranty Info
WHAT REMEDIES ARE AVAILABLE UNDER THIS LIMITED WARRANTY. If the conditions set forth above are fulfilled and the Equipment or any part thereof is found to be defective, Fimco, Ind. shall, at its own cost, and at its option, either repair or replace the defective Equipment or part.
