Fimco ATV-25-71-QR Owner's Manual

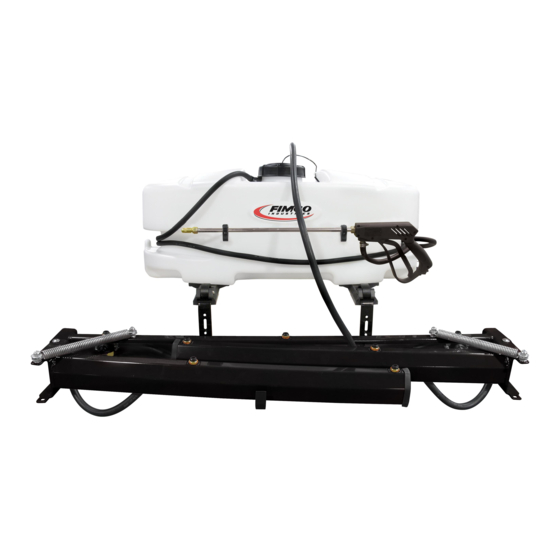

25 gallon deluxe lawn & garden/atv sprayer
Hide thumbs Also See for ATV-25-71-QR:

Advertisement

Table of Contents

Technical Specifications
25 Gal. Corrosion-Resistant Polyethylene Tank
12 Volt Diaphragm Pump, 3.8 g.p.m.—45 psi
15 Ft. Handgun Hose (3/8" I.D.)
26 Ft. Vertical throw, 35 Ft. Horizontal Throw
Pressure Gauge
7-Nozzle Deluxe Boom Assembly
(140" Spray Coverage)
Corrosion-Resistant Nylon Nozzles
Bypass (Recirculation) Line
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden/ATV sprayer. Please read it carefully, as it furnishes
information which will help you achieve years of trouble-free
operation.
Warranty
Products are warranted for one year from date of purchase
against manufacturer or workmanship defects for home owner
usage and 90 days for commercial usage.
For technical assistance, visit our website @
www.fimcoindustries.com or call: TOLL FREE @ 1-800-831-0027
Our Technical Support Representatives will be happy to help you.
To obtain prompt, efficient service, always remember to give the
following information...
Correct Part Description and/or part number
Model #/Serial # of your sprayer
Part descriptions and numbers can be obtained from the illustrated
parts list section(s) of this manual.

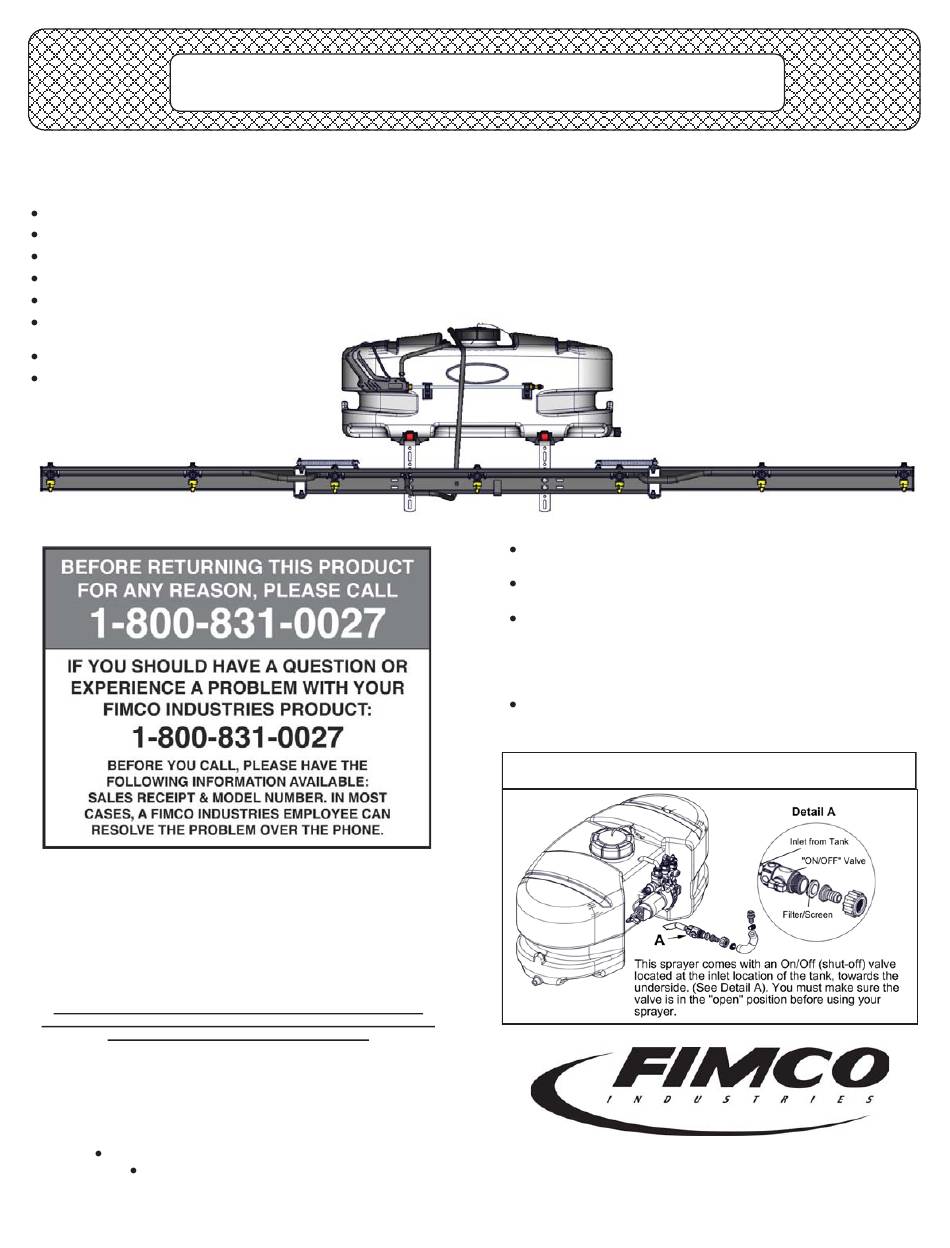

OWNER'S MANUAL
Model: ATV-25-71-QR (5302321)
(25 Gallon 'Deluxe' Lawn & Garden/ATV Sprayer)
Assembly Instructions
Make sure the contents of the sprayer's carton match the
items shown on page 2 of the manual.
Follow the steps on pages 3, 4 & 5 to properly assemble
the sprayer.
After assembly is complete and before testing your
sprayer, make sure you connect the electrical hook-up to
the end of your pump and clip the clips to a fully charged
battery. The red wire must be connected to the positive
(+) and the black wire should be connected to the nega-
tive (-).
The drain plug assembly should already be attached to
the tank
***IMPORTANT REMINDER***
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5008431
Caution: Always check the vehicle
load rating before using this sprayer.
The loaded weight of the sprayer and
boom assembly is about 280 lbs.
when the tank is full. Care must be
taken not to tip the vehicle over back-
wards, especially when starting or
accelerating.
(04/16)]
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATV-25-71-QR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fimco ATV-25-71-QR

Summary of Contents for Fimco ATV-25-71-QR

  • Page 1 Correct Part Description and/or part number Model #/Serial # of your sprayer 1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049 Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440 Part descriptions and numbers can be obtained from the illustrated...
  • Page 2 Contents of your sprayer’s carton (ATV-25-71-QR - 5302321): Owner’s Manual Tank Lid & Lanyard (#5058188) Tank/Plumbing Pre-Assembly 7-Nozzle Boom (5274770) & 7-Nozzle Harness (#5277765) Contents of Parts Bag Contents of Bracket Kit #5278288 #5278289 Page 2...
  • Page 3 Step 1 Assembly Procedure (ATV-25-71-QR) Normally, the sprayer will be mounted on an ATV with the pump assembly at the operator’s back and the spray wand will be at the rear of the unit. Right Hand (RH) and Left Hand (LH) sides of the sprayer are...
  • Page 4 Step 3 Assembly Procedure (ATV-25-71-QR) After your boom mounting brackets are secured in place and the unit secured on your ATV, bolt the 7- nozzle boom (5308243) in place with (4) Carriage Bolts (5034482) and whiz nuts (5006259). A 1/2” socket or wrench is required for this step.
  • Page 5 Step 5 Assembly Procedure (ATV-25-71-QR) After your nozzle harness is attached to the boom, lo- cate the 48” hose and the (2) hose clamps from the parts bag. Place the hose clamps over each end of the hose loosely. Slip the ends of the hose over the hose barbs on both the manifold and the poly hose tee on the noz- zle harness.

  • Page 6: Operation

    Testing the Sprayer completely and if a lower pressure is desired, then slowly open the bypass valve until that pressure is obtained. NOTE: It is important that you test your sprayer for leakage and proper spray patters with plain water before chemical For the safest and most efficient chemical application, you will need application is attempted.
  • Page 7 Drain and then refill half full, add the recommended amount of Cams to hold and store boom in vertical position. a good quality tank cleaner, such as FIMCO Tank Neutralizer and Winter Storage Cleaner. (If no tank cleaner is available, you may substitute dish soap Before storing your sprayer for winter or long term storage, for this step).

  • Page 8: Pump Specifications

    Pump Model: 5277982 Clean and rinse your pump after each use with Fimco Tank Neutralizer Winterize your pump or sprayer by rinsing, draining and Troubleshooting the Pump: running RV Antifreeze through it before storing for the winter. Use clean water for your spray mixture Motor does not run: Store inside a building when not in use.

  • Page 9: Exploded View

    Typical Spray Pa ern (7-Nozzle Boom) Manifold Manifold d Detail Detail 5302349 5302349 9 Intake Detail 5275877 Exploded View: ATV-25-71-QR (5302321) Page 9...
  • Page 10 Parts List: ATV-25-71-QR (5302321) 7-Nozzle (Deluxe) Boom Assembly (5302485) Opposite side has typical hardware setup See Hinge Detail Hinge Detail LH Elbow RH Elbow Page 10...
