Fimco ATVBK-200-QR Owner's Manual

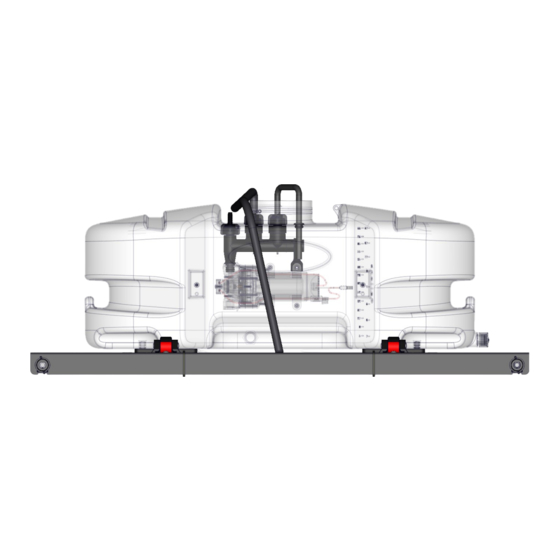

(Tank NOT Included
with Boom Kit)
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
Boom Kit.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your unit, as it will be required
to validate any warranty service.
Warranted against manufacturer or workmanship defects from
date of purchase with copy of receipt:
Homeowner Usage: One Year.
Commercial Usage: 90 Days.

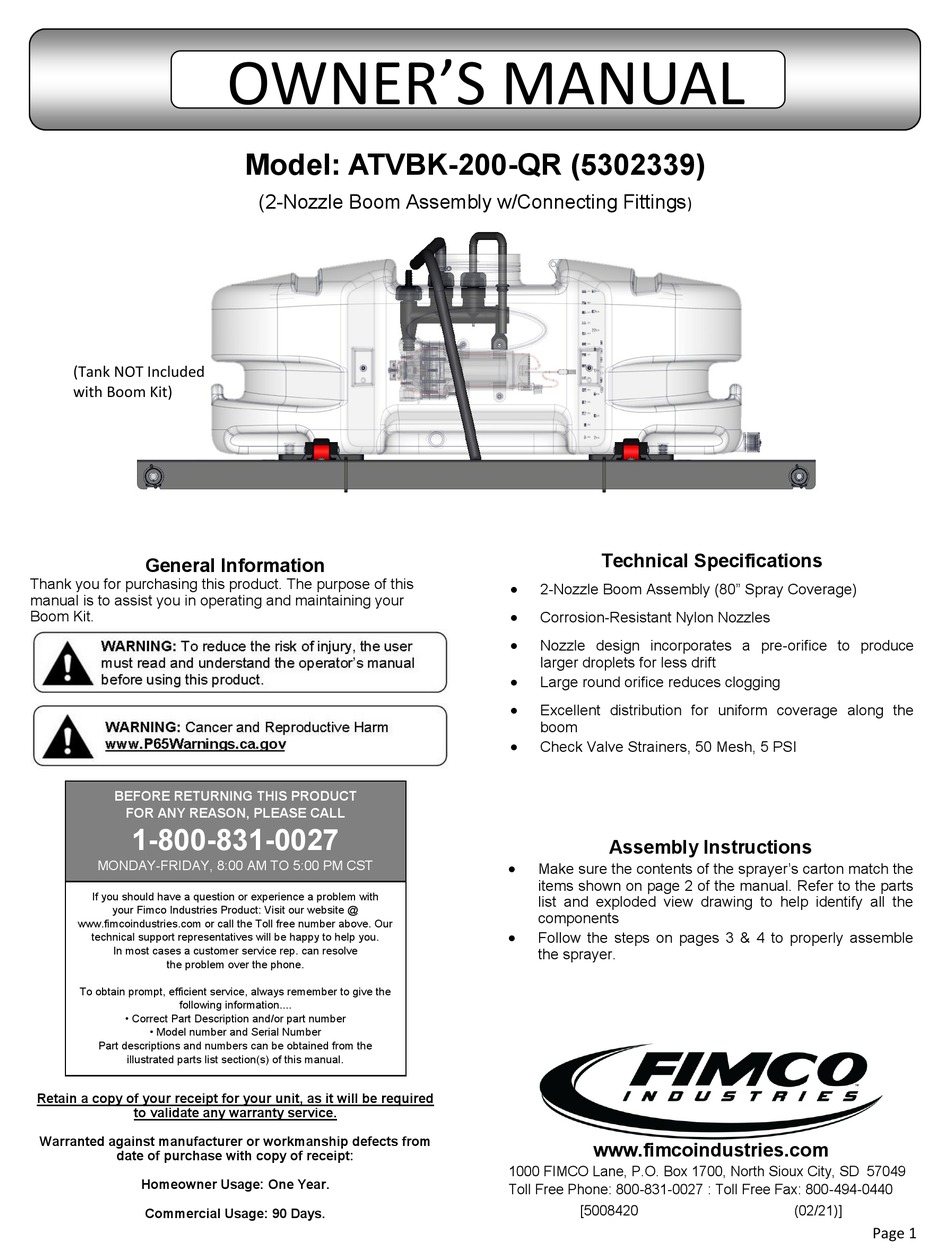

OWNER'S MANUAL
Model: ATVBK-200-QR (5302339)
(2-Nozzle Boom Assembly w/Connecting Fittings
)

Technical Specifications


2-Nozzle Boom Assembly (80" Spray Coverage)

Corrosion-Resistant Nylon Nozzles

Nozzle design incorporates a pre-orifice to produce
larger droplets for less drift

Large round orifice reduces clogging

Excellent distribution for uniform coverage along the
boom

Check Valve Strainers, 50 Mesh, 5 PSI

Assembly Instructions


Make sure the contents of the sprayer's carton match the
items shown on page 2 of the manual. Refer to the parts
list and exploded view drawing to help identify all the
components

Follow the steps on pages 3 & 4 to properly assemble
the sprayer.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5008420 (02/21)]
Page 1
