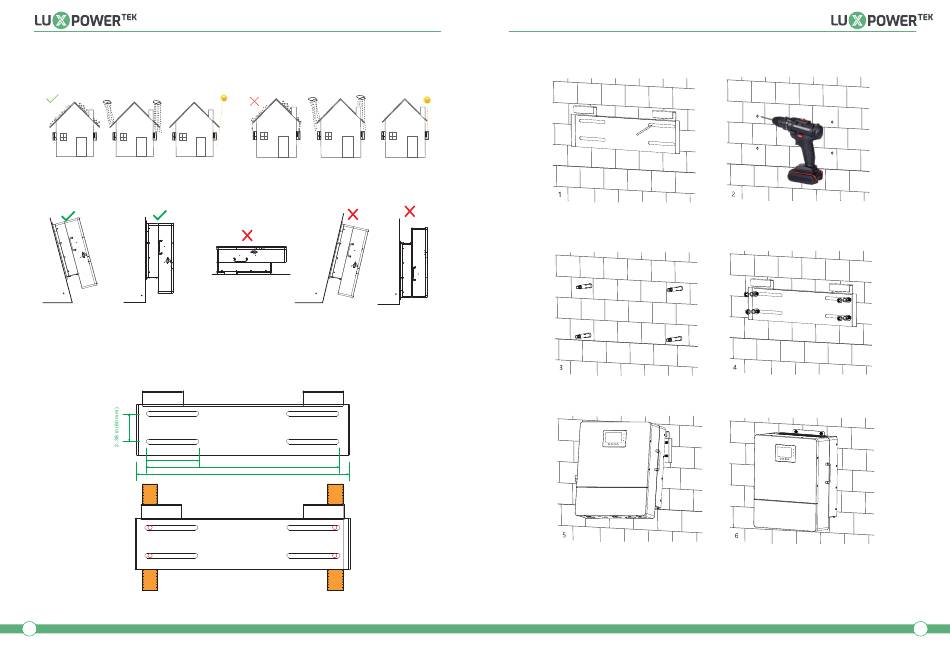

c. Never install the inverter in a place with direct sunlight, rain or snow. Please refer to below figure and select a well
shaded place or install a shed to protect the inverter from direct sunlight, rain and snow etc. PROTECT the LCD screen
from excessive UV exposure
d. The inverter should be installed upright on a vertical surface.
>75
90
3.2.2

Installing the inverter

The inverter is wall-mounted type, should be installed on a vertical, solid mounting surface, such as wood studs,
brick or concrete wall. Two or more persons may be needed to install the inverter due to its weight. The slots on
mounting bracket can accommodate various stud spacing from 12inch(305mm) to 16.46inch(418mm).
4.49in(114mm)
The mounting steps are as below: (Use brick wall as example)
05
>90 90
16.46 in(418mm)
18 in(458mm)
Step1. Mark the positions of drill holes with the mounting bracket, then drill 4 holes of 8mm(5/16inch) diameter
and make sure the depth of the holes is deeper than 50mm(2inch).
Step2. Install the expansion bolts into the holes and tighten them, then use the corresponding nuts and washers
(packaged together with the expansion bolts) to install and fix the wall-mounting bracket on the wall.
Step3. Hang the inverter onto the wall-mounting bracket and lock the inverter on the wall using 2 self-tapping
screws on the top of the inverter.
For installation on wood studs
Fasten the mounting bracket on the studs with 4 wood screws, then hang the inverter onto the bracket and lock
the inverter on the wall with 2 self-tapping screws.
Please note that the wood screws and self-tapping screws are not provided with the inverter. Installers need to
prepare the screws before installation.
