Brief Introduction

2.1

System Solution

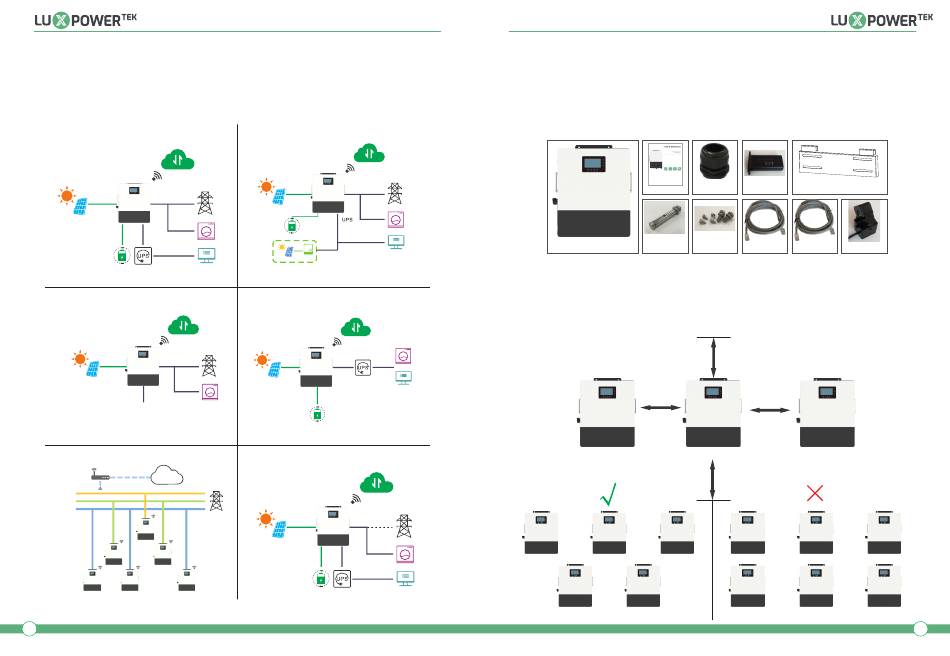

This product and relevant system is suitable for following system applications (system diagram):
A. Solar and battery storage system
C. On-grid solar system without battery
(Support EPS even without battery)
Reserved
Battery&UPS
Interfaces
E. Single and three phase paralleling system
Viewer
Router
03
B. AC Coupling with existed solar system
Existed On-grid
Solar System
D. Off-grid and back-up applications
F. Energy storage system with peak shaving Function
Grid
3.

Installation

3.1 Packaging List & Storing

Packaging List

When the packaging is unpacked, the inner components should be the same as described in below
packaging list.
User Manual X1
Expansion Screw
Hybrid Inverter X1
and Tube X4
3.2

Location Selection and Installation

3.2.1 Requirements for installation location

a. The wall for mounting should be strong enough to bear the weight of inverter .
b. Please maintain the minimum clearances below for adequate heat dissipation.
400mm
400mm
400mm
Wi-Fi dongle X1
Waterproof
Bracket: wall-mounted×1
PG Cable Gland X6
Optional
Cross Head Battery communication
Parallel communication
cable Length 2mx1(Grey) 1.3" CT x1
Screw X17 cable L=2m×1(Grey)
400mm
