Assembling the
QwikRig Rigging Frame
V2

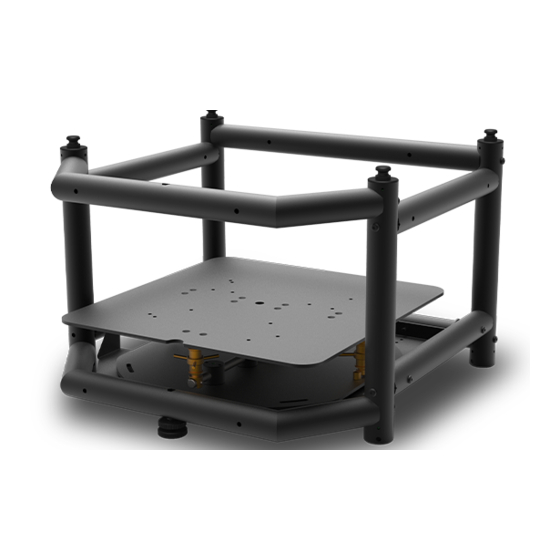

With the QwikRig Rigging Frame V2, the projector can be secured to trusses or structures built for the
purpose of positioning the projector.
With the frame:
• Up to three projectors can be stacked in landscape orientation.
• A single projector can be positioned in portrait mode but no stacking is permitted.
Christie ships the frame separately from the projector.
Affected products
The QwikRig Rigging Frame V2 is designed for use with the following projectors.
Projector model
GS Series DWU850-GS
DWU880(A)-GS
DWU1075-GS
DWU1082-GS
DWU8902-GS
DWU1100(A)-GS
DWU1400(A)-GS
DWU630-GS
DWU6322-GS
DWU7062-GS
Inspire Series DWU760(A)-iS
DWU860-iS
DWU960-iS
DWU960ST-iS
4K860(A)-iS
Assembling the QwikRig Rigging Frame V2 Instruction Sheet
020-103852-01 Rev. 1 (07-2023)
Copyright © 2023 Christie Digital Systems USA, Inc. All rights reserved.
If printed, please recycle this document after use.
Compatible lenses
0.37-0.4:1 zero offset L-shaped UST (P/N: 140-153100-XX)
0.65-0.75 zoom (P/N: 140-143109-XX)
0.75-0.95 zoom (P/N: 140-119102-XX)
0.95-1.22 zoom (P/N: 140-101103-XX)
1.22-1.52 zoom HP (P/N: 140-131106-XX)
1.52-2.89 zoom (P/N: 140-102104-XX)
2.9-5.50:1 zoom (P/N: 140-107109-XX
0.65-0.75 zoom (P/N: 140-143109-XX)
0.75-0.95 zoom (P/N: 140-119102-XX)
0.95-1.22 zoom (P/N: 140-101103-XX)
1.22-1.53 zoom (P/N: 140-132107-XX)
1.22-1.53 zoom (P/N: 140-132107-XX)
1.52-2.89 zoom (P/N: 140-102104-XX)
2.9-5.50:1 zoom (P/N: 140-107109-XX)
—
