Christie QwikRig rigging frame Assembling

Assembling the Christie
QwikRig rigging frame

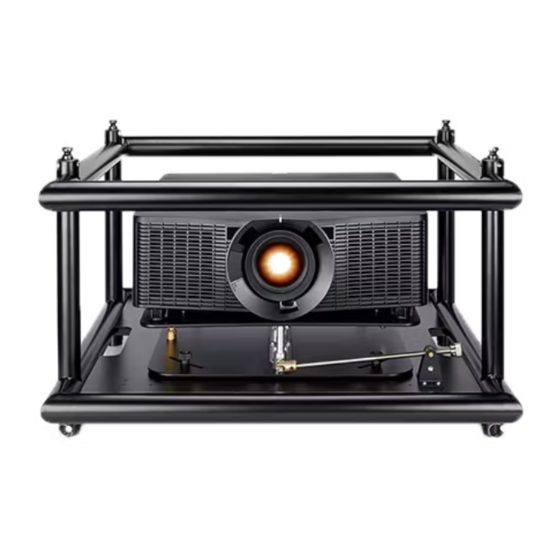

With the Christie QwikRig rigging frame, the projector can be secured to trusses or structures built for
the purpose of positioning the projector.
With the frame:
• Up to three projectors can be stacked in landscape orientation.
• A single projector can be positioned in portrait mode but no stacking is permitted.
Christie ships the frame separately from the projector.

Affected products

The Christie QwikRig rigging frame is designed for use with the following projectors.
• H Series (D12HD-H and D12WU-H)
• Q Series (DWU951-Q, DHD951-Q, DWX951-Q, DXG1051-Q, DWU851-Q, DHD851-Q, DWX851-
Q, DHD1052, DWU1052 )
• GS Series (DHD/DWU850-GS and DHD/DWU700-GS)
• D Series (LWU701i, LW751i, LX801i, LWU601i, LW651i)
The Christie QwikRig rigging frame does not support the DHD/DWU/DWX555-GS projector models.

Safety warnings and guidelines

Read all safety and warning guidelines before starting this procedure.
Danger! Failure to comply with the following results in death or serious injury.
• Do not stack the device unless specified in this manual.
• Do not stack more than three projectors in landscape orientation.
• The supporting structure must safely support the combined load of the product, all attached
hardware, and components following all local safety standards and regulations.
• Use all mounting points, including the safety point, when installing the product overhead.
Assembling the Christie QwikRig Rigging Frame Instruction Sheet
020-102083-05 Rev. 1 (10-2016)
Copyright 2016 Christie Digital Systems USA Inc. All rights reserved.
©
1
