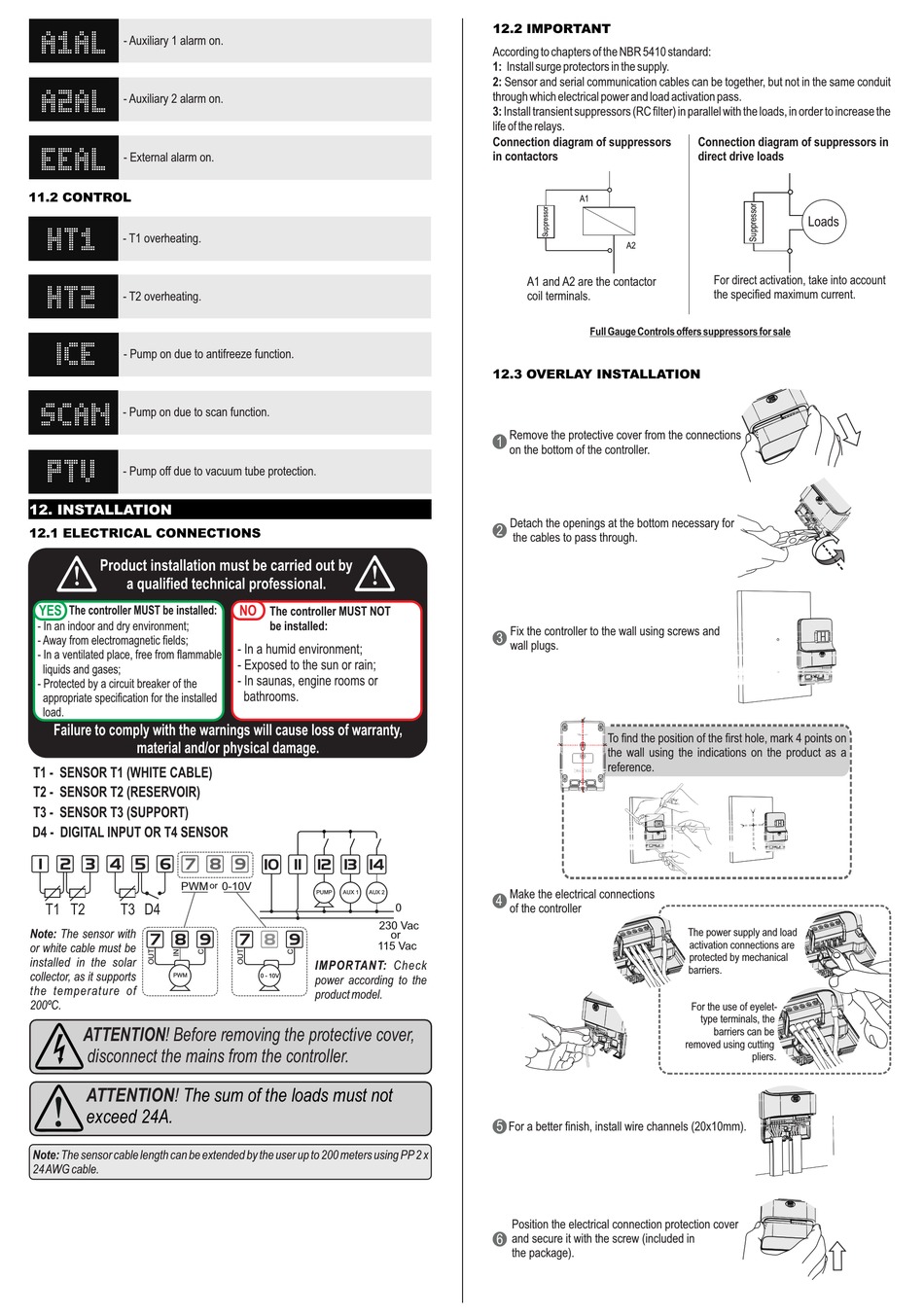

Full Gauge Controls Microsol BMP Advanced c-o-n-n-e-c-t Manual page 8

A1AL
- Auxiliary 1 alarm on.
am
ECLO A2AL
- Auxiliary 2 alarm on.
am am
ECLO EEAL
- External alarm on.
am am
11.2 CONTROL
HT1
- T1 overheating.
am
HT2
ECLO
- T2 overheating.
am am
ICE
ECLO
- Pump on due to antifreeze function.
am am
ECLO SCAN
- Pump on due to scan function.
am am
PTV
ECLO
- Pump off due to vacuum tube protection.
am am
12. INSTALLATION
12.1 ELECTRICAL CONNECTIONS
Product installation must be carried out by
a qualified technical professional.
YES The controller MUST be installed:
- In an indoor and dry environment;
- Away from electromagnetic fields;
- In a ventilated place, free from flammable
liquids and gases;
- Protected by a circuit breaker of the
appropriate specification for the installed
load.
Failure to comply with the warnings will cause loss of warranty,
material and/or physical damage.
T1 - SENSOR T1 (WHITE CABLE)
T2 - SENSOR T2 (RESERVOIR)
T3 - SENSOR T3 (SUPPORT)
D4 - DIGITAL INPUT OR T4 SENSOR
PWM
T1 T2 T3 D4
Note: The sensor with
or white cable must be
installed in the solar
collector, as it supports
PWM
the temperature of
200ºC.
ATTENTION! Before removing the protective cover,
disconnect the mains from the controller.
ATTENTION! The sum of the loads must not
exceed 24A.
Note: The sensor cable length can be extended by the user up to 200 meters using PP 2 x
24 AWG cable.
NO
The controller MUST NOT
be installed:
- In a humid environment;
- Exposed to the sun or rain;
- In saunas, engine rooms or
bathrooms.
or 0-10V
PUMP AUX 1 AUX 2
230 Vac
115 Vac
IMPORTANT: Check
0 - 10V
power according to the
product model.
12.2 IMPORTANT
According to chapters of the NBR 5410 standard:
1: Install surge protectors in the supply.
2: Sensor and serial communication cables can be together, but not in the same conduit
through which electrical power and load activation pass.
3: Install transient suppressors (RC filter) in parallel with the loads, in order to increase the
life of the relays.
Connection diagram of suppressors
in contactors
A1 and A2 are the contactor
coil terminals.
12.3 OVERLAY INSTALLATION
Remove the protective cover from the connections
1
on the bottom of the controller.
Detach the openings at the bottom necessary for
2
the cables to pass through.
Fix the controller to the wall using screws and
3
wall plugs.
Make the electrical connections
4
0 of the controller
or
5
For a better finish, install wire channels (20x10mm).
Position the electrical connection protection cover
6 and secure it with the screw (included in
the package).
Connection diagram of suppressors in
direct drive loads
A1
A2
For direct activation, take into account
the specified maximum current.
Full Gauge Controls offers suppressors for sale
To find the position of the first hole, mark 4 points on
the wall using the indications on the product as a
reference.
The power supply and load
activation connections are
protected by mechanical
barriers.
For the use of eyelet-
type terminals, the
barriers can be
removed using cutting
pliers.
Loads
