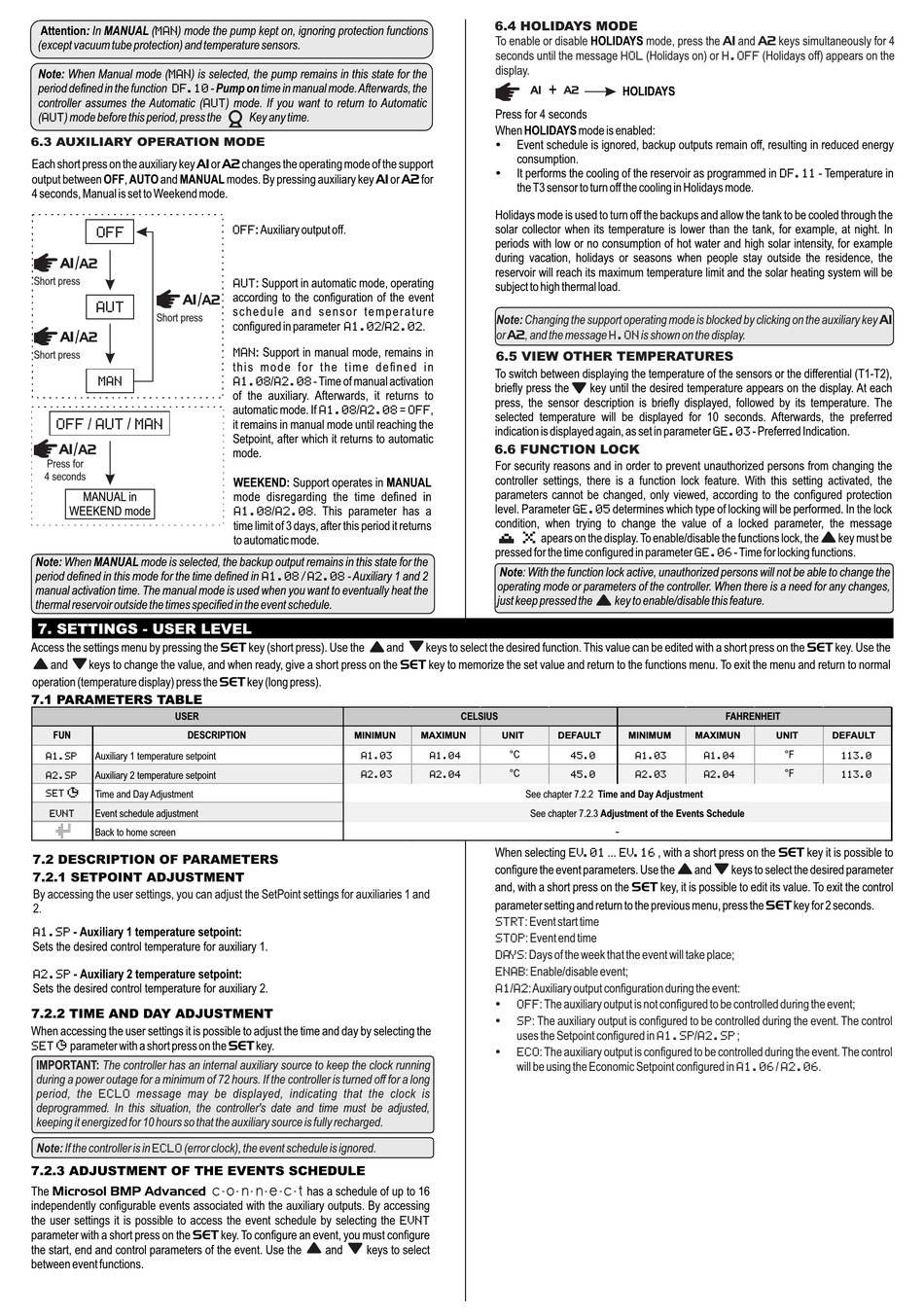

Attention: In MANUAL (MAN) mode the pump kept on, ignoring protection functions
(except vacuum tube protection) and temperature sensors.
Note: When Manual mode (MAN) is selected, the pump remains in this state for the
period defined in the function DF.10 - Pump on time in manual mode. Afterwards, the
controller assumes the Automatic (AUT) mode. If you want to return to Automatic
(AUT) mode before this period, press the
6.3 AUXILIARY OPERATION MODE
Each short press on the auxiliary key A1 or A2 changes the operating mode of the support
output between OFF, AUTO and MANUAL modes. By pressing auxiliary key A1 or A2 for
4 seconds, Manual is set to Weekend mode.
OFF
/
Short press
/
AUT
Short press
/
Short press
MAN
OFF / AUT / MAN
/
Press for
4 seconds
MANUAL in
WEEKEND mode
Note: When MANUAL mode is selected, the backup output remains in this state for the
period defined in this mode for the time defined in A1.08 / A2.08 - Auxiliary 1 and 2
manual activation time. The manual mode is used when you want to eventually heat the
thermal reservoir outside the times specified in the event schedule.
7. SETTINGS - USER LEVEL
Access the settings menu by pressing the SET key (short press). Use the
keys to change the value, and when ready, give a short press on the SET key to memorize the set value and return to the functions menu. To exit the menu and return to normal
111 and
operation (temperature display) press the SET key (long press).
7.1 PARAMETERS TABLE
USER
FUN DESCRIPTION
A1.SP Auxiliary 1 temperature setpoint
A2.SP Auxiliary 2 temperature setpoint
SETaa
Time and Day Adjustment
Event schedule adjustment
EVNT
Back to home screen
7.2 DESCRIPTION OF PARAMETERS
7.2.1 SETPOINT ADJUSTMENT
By accessing the user settings, you can adjust the SetPoint settings for auxiliaries 1 and
2.
A1.SP - Auxiliary 1 temperature setpoint:
Sets the desired control temperature for auxiliary 1.
A2.SP - Auxiliary 2 temperature setpoint:
Sets the desired control temperature for auxiliary 2.
7.2.2 TIME AND DAY ADJUSTMENT
When accessing the user settings it is possible to adjust the time and day by selecting the
parameter with a short press on the SET key.
SET
IMPORTANT: The controller has an internal auxiliary source to keep the clock running
during a power outage for a minimum of 72 hours. If the controller is turned off for a long
period, the ECLO message may be displayed, indicating that the clock is
deprogrammed. In this situation, the controller's date and time must be adjusted,
keeping it energized for 10 hours so that the auxiliary source is fully recharged.
Note: If the controller is in ECLO (error clock), the event schedule is ignored.
7.2.3 ADJUSTMENT OF THE EVENTS SCHEDULE
The Microsol BMP Advanced
independently configurable events associated with the auxiliary outputs. By accessing
the user settings it is possible to access the event schedule by selecting the EVNT
parameter with a short press on the SET key. To configure an event, you must configure
the start, end and control parameters of the event. Use the
between event functions.
Key any time.
OFF: Auxiliary output off.
AUT: Support in automatic mode, operating
according to the configuration of the event
s c h e d u l e a n d s e n s o r t e m p e r a t u r e
configured in parameter A1.02/A2.02.
MAN: Support in manual mode, remains in
t h i s m o d e f o r t h e t i m e d e fi n e d i n
A1.08/A2.08 - Time of manual activation
of the auxiliary. Afterwards, it returns to
automatic mode. If A1.08/A2.08 = OFF,
it remains in manual mode until reaching the
Setpoint, after which it returns to automatic
mode.
WEEKEND: Support operates in MANUAL
mode disregarding the time defined in
A1.08/A2.08. This parameter has a
time limit of 3 days, after this period it returns
to automatic mode.
and
MINIMUN
A1.03
A2.03
has a schedule of up to 16
and keys to select
6.4 HOLIDAYS MODE
To enable or disable HOLIDAYS
seconds until the message HOL (Holidays on) or H.OFF (Holidays off) appears on the
display.
+
Press for 4 seconds
When HOLIDAYS mode is enabled:
Ÿ Event schedule is ignored, backup outputs remain off, resulting in reduced energy
consumption.
Ÿ
It performs the cooling of the reservoir as programmed in DF.11 - Temperature in
the T3 sensor to turn off the cooling in Holidays mode.
Holidays mode is used to turn off the backups and allow the tank to be cooled through the
solar collector when its temperature is lower than the tank, for example, at night. In
periods with low or no consumption of hot water and high solar intensity, for example
during vacation, holidays or seasons when people stay outside the residence, the
reservoir will reach its maximum temperature limit and the solar heating system will be
subject to high thermal load.
Note: Changing the support operating mode is blocked by clicking on the auxiliary key A1
or A2, and the message H.ON is shown on the display.
6.5 VIEW OTHER TEMPERATURES
To switch between displaying the temperature of the sensors or the differential (T1-T2),
briefly press the key until the desired temperature appears on the display. At each
press, the sensor description is briefly displayed, followed by its temperature. The
selected temperature will be displayed for 10 seconds. Afterwards, the preferred
indication is displayed again, as set in parameter GE.03 - Preferred Indication.
6.6 FUNCTION LOCK
For security reasons and in order to prevent unauthorized persons from changing the
controller settings, there is a function lock feature. With this setting activated, the
parameters cannot be changed, only viewed, according to the configured protection
level. Parameter GE.05 determines which type of locking will be performed. In the lock
condition, when trying to change the value of a locked parameter, the message
111111111apears on the display. To enable/disable the functions lock, the
pressed for the time configured in parameter GE.06 - Time for locking functions.
Note: With the function lock active, unauthorized persons will not be able to change the
operating mode or parameters of the controller. When there is a need for any changes,
just keep pressed the
keys to select the desired function. This value can be edited with a short press on the SET key. Use the
CELSIUS
MAXIMUN UNIT DEFAULT
°C
A1.04 45.0
°C
A2.04 45.0
See chapter 7.2.2 Time and Day Adjustment
See chapter 7.2.3 Adjustment of the Events Schedule
When selecting EV.01 ... EV.16 , with a short press on the SET key it is possible to
configure the event parameters. Use the
and, with a short press on the SET key, it is possible to edit its value. To exit the control
parameter setting and return to the previous menu, press the SET key for 2 seconds.
STRT: Event start time
STOP: Event end time
DAYS: Days of the week that the event will take place;
ENAB: Enable/disable event;
A1/A2: Auxiliary output configuration during the event:
Ÿ
OFF: The auxiliary output is not configured to be controlled during the event;
Ÿ
SP: The auxiliary output is configured to be controlled during the event. The control
uses the Setpoint configured in A1.SP/A2.SP ;
Ÿ ECO: The auxiliary output is configured to be controlled during the event. The control
will be using the Economic Setpoint configured in A1.06 / A2.06.
mode, press the A1 and A2 keys simultaneously for 4
HOLIDAYS
key to enable/disable this feature.
FAHRENHEIT
MINIMUM MAXIMUN UNIT
°F
A1.03 A1.04
°F
A2.03 A2.04
-
and keys to select the desired parameter
key must be
DEFAULT
113.0
113.0
