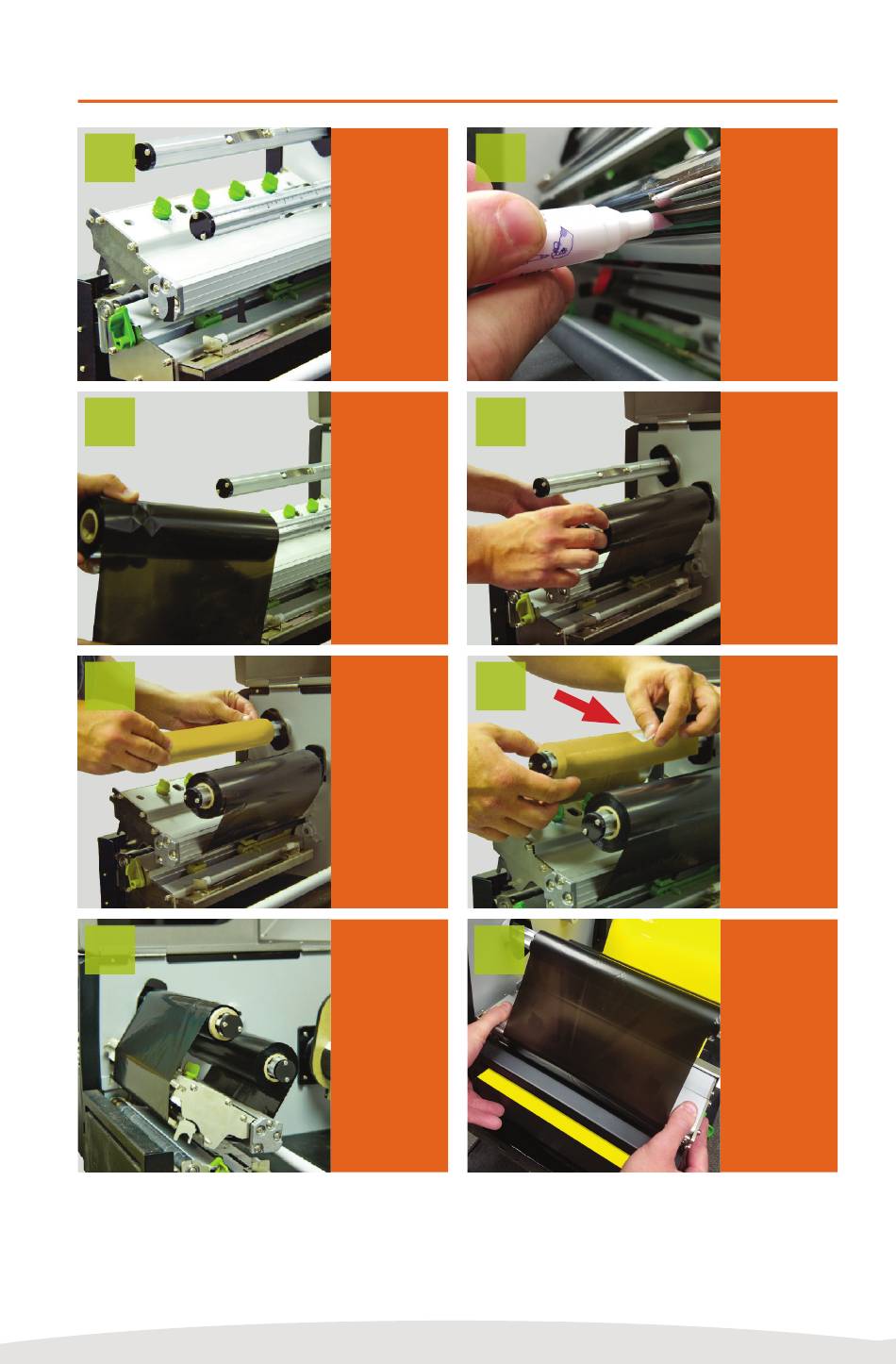

Loading VnM®8 Ink Roll
1
3
5
7
NOTE: Always have the VnM printer cover closed when powering on.
5
With printer
turned off,
open the
cover, press
down on the
printhead
and push
back the
green lever
to raise the
printhead.
Slide VnM8
ink roll onto
rear spindle.
Attach empty
take-up core
to the front
ink spindle.
Hand wind
the ink to
remove any
slack.
Copyright © 2016 Cobra Systems, Inc. All rights reserved
2
4
6
8
Use the
cleaning pen
to gently
clean the
surface of
the print
head before
each ribbon
installation.
Center
ink roll on
spindle and
feed above
black plastic
sensor under
printhead.
Pull ink
through and
up to the
take-up core
and securely
attach with
tape.
With hands
on both
sides, push
down on the
printhead
until the
green latch
clicks.
