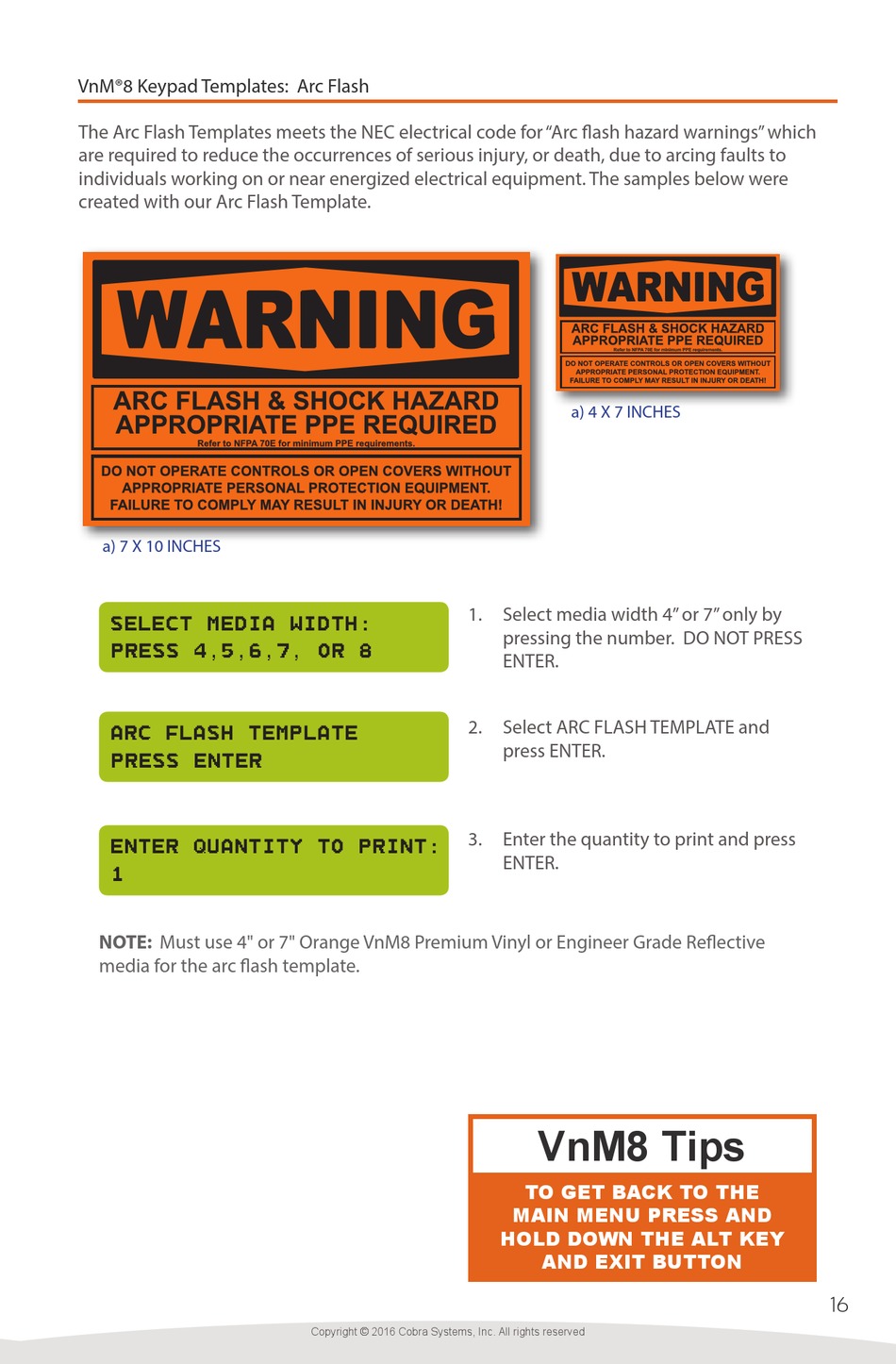

VnM®8 Keypad Templates: Arc Flash
The Arc Flash Templates meets the NEC electrical code for "Arc flash hazard warnings" which
are required to reduce the occurrences of serious injury, or death, due to arcing faults to
individuals working on or near energized electrical equipment. The samples below were
created with our Arc Flash Template.
w
a) 7 X 10 INCHES
SELECT MEDIA WIDTH:
PRESS 4,5,6,7, OR 8
ARC FLASH TEMPLATE
PRESS ENTER
ENTER QUANTITY TO PRINT:
1
NOTE: Must use 4" or 7" Orange VnM8 Premium Vinyl or Engineer Grade Reflective
media for the arc flash template.
1.
2.
3.
Copyright © 2016 Cobra Systems, Inc. All rights reserved
w
a) 4 X 7 INCHES
Select media width 4" or 7" only by
pressing the number. DO NOT PRESS
ENTER.
Select ARC FLASH TEMPLATE and
press ENTER.
Enter the quantity to print and press
ENTER.
VnM8 Tips
TO GET BACK TO THE
MAIN MENU PRESS AND
HOLD DOWN THE ALT KEY
AND EXIT BUTTON
16
