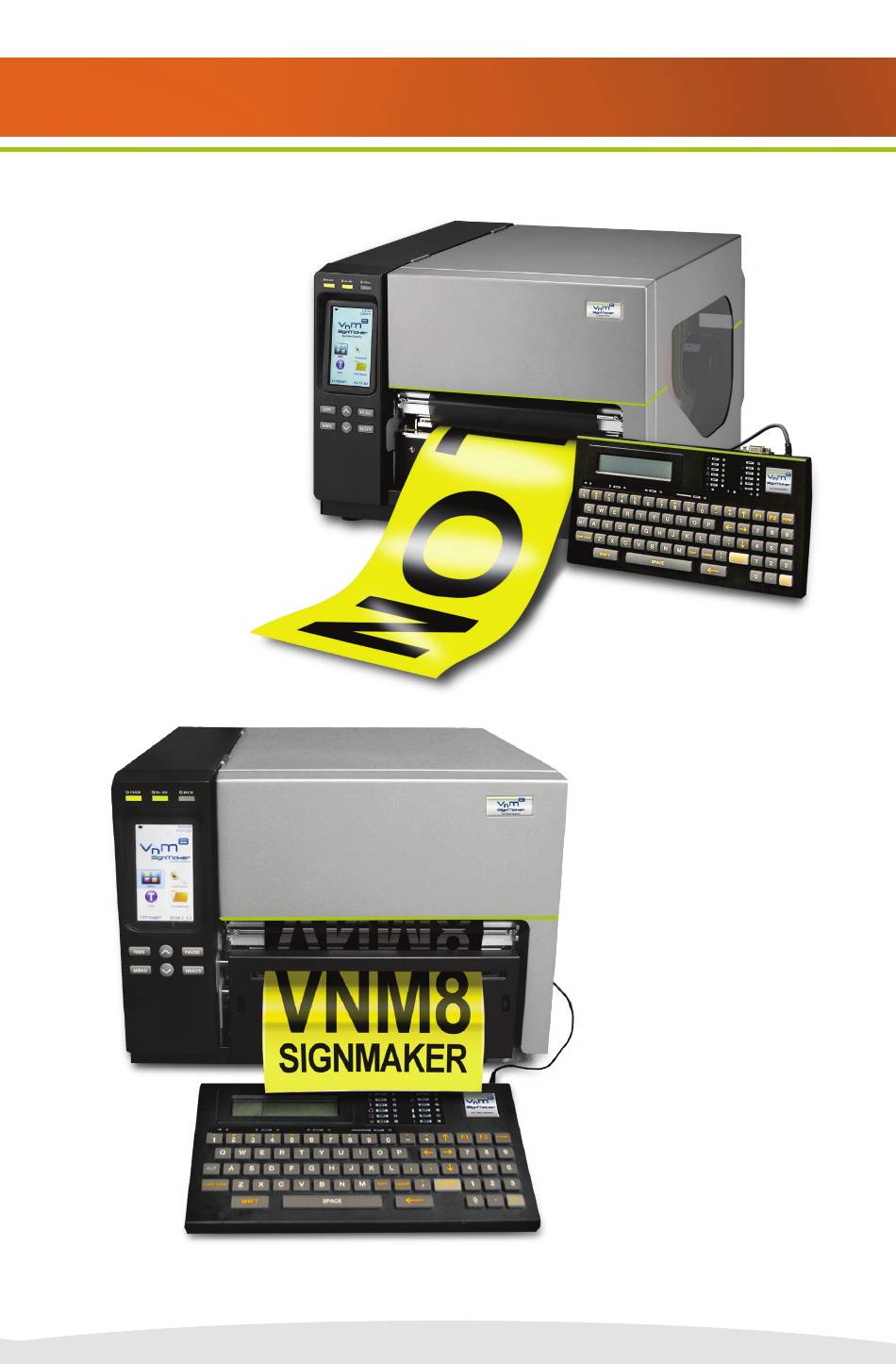

- Page 1 VnM SignMaker, Safety Signs & Labels VnM SignMaker, Safety Signs & Labels User Manual Version 2.2D Updated: 1/2017 VnM 8 SignMaker Copyright © 2016 Cobra Systems, Inc. All rights reserved...
-
Page 2: Table Of Contents
Custom 1 Line i) Hazardous Waste j) VnM8 Apps OSHA and ANSI Safety Identification Fonts and Symbols 21-22 Connecting to a PC Maintenance/Troubleshooting Accessories Frequently Asked Questions Technical Support/Service and Repair Copyright © 2016 Cobra Systems, Inc. All rights reserved... -
Page 3: Introduction
Introduction Thank you for purchasing the VnM®8 SignMaker by Cobra Systems, Inc. Throughout this manual you will find User Tips, Troubleshooting, and step-by-step instructions that will show you how to create signs and labels that are perfect for all of your safety and identification requirements. -
Page 4: Quick Start
5. Plug in VnM8 Keypad. 6. Connect power cord to the VnM8 SignMaker and outlet. Turn ON VnM8 SignMaker. NOTE: Always have the VnM printer cover closed when powering on. Copyright © 2016 Cobra Systems, Inc. All rights reserved... -
Page 5: Overview
16. Ribbon sensor 17. Media sensor 18. Platen roller 19. Print head release lever 20. Ribbon supply spindle 21. Label roll guard 22. Label supply spindle 23. Media guide bar 24. Label guide Copyright © 2016 Cobra Systems, Inc. All rights reserved... -
Page 6: Loading Ink Roll
Hand wind on both the ink to remove any sides, push slack. down on the printhead until the green latch clicks. NOTE: Always have the VnM printer cover closed when powering on. Copyright © 2016 Cobra Systems, Inc. All rights reserved... -
Page 7: Loading Media
IMPORTANT: To prevent smudges and fingerprints, handle media on the ends of the roll. Copyright © 2016 Cobra Systems, Inc. All rights reserved... -
Page 8: Power Up
4. Turn on the VnM8. GPIO Interface (Optional) Ethernet Interface SD Socket Interface USB Host PS/2 Interface RS232 Plug to Outlet Power Socket Power On/Off IMPORTANT: Keep all magnetic devices away from the VnM8 printer. Copyright © 2016 Cobra Systems, Inc. All rights reserved... -
Page 9: Print And Font Settings
Recommended density based on the ink CHOOSE FONT/SYMBOLS: color being used: UTILITY Black: 6-9, White: 10-13 CHOOSE FONT/SYMBOLS: Blue: 2-4, Green: 2-4, Red: 2-4 ITALIC ENTER DENSITY: NOTE: See pages 21-22 for fonts and symbols. Copyright © 2016 Cobra Systems, Inc. All rights reserved... -
Page 10: Keypad Navigation
Press ENTER foot marks, press the SHIFT key + PERIOD key (on the numeric keypad). Do not use VnM8 APPS the keypad QUOTATION key, you will have Press ENTER blank text. Copyright © 2016 Cobra Systems, Inc. All rights reserved... - Page 11 1.(Y)ES or 2.(N)O DANGER! b) 1 Line Template, (Y) reverse text VnM8 Tips TO GET BACK TO THE MAIN MENU PRESS AND HOLD THE ALT AND EXIT BUTTONS AT THE SAME TIME. Copyright © 2016 Cobra Systems, Inc. All rights reserved...
-
Page 12: B) 1 Line Vertical
Press Y or 1 for Yes, Press N or 2 for No. 1.(Y)ES or 2.(N)O VnM8 Tips IF YOU ARE USING A 8 INCH MEDIA, TRY USING A 6 INCH TEMPLATE TO GET A SMALLER FONT Copyright © 2016 Cobra Systems, Inc. All rights reserved... -
Page 13: C) 2 Line Horizontal
TO BOILER #5 Enter the quantity to print and press ENTER QUANTITY TO PRINT: ENTER. VnM8 Tips MAKE SURE YOU ARE USING THE RIGHT PRINT SETTING WITH THE PROPER INK AND MEDIA Copyright © 2016 Cobra Systems, Inc. All rights reserved... -
Page 14: D) Multi Line Header
WITHIN 25 FEET Enter the text/symbols for your third ENTER LINE 3: line of text and press ENTER. OF MACHINERY Enter the quantity to print and press ENTER QUANTITY TO PRINT: ENTER. Copyright © 2016 Cobra Systems, Inc. All rights reserved... -
Page 15: E) Ansi Header
ENTER. HIGH Enter the text/symbols for your second ENTER LINE 2: line and press ENTER. VOLTAGE Enter the quantity of signs to print and ENTER QUANTITY TO PRINT: press ENTER. Copyright © 2016 Cobra Systems, Inc. All rights reserved... -
Page 16: F ) Die Cut
ENTER. Enter the text/symbols for your second ENTER LINE 2: line and press ENTER. SURFACE Enter the quantity of signs to print and ENTER QUANTITY TO PRINT: press ENTER. Copyright © 2016 Cobra Systems, Inc. All rights reserved... -
Page 17: G) Arc Flash
NOTE: Must use 4" or 7" Orange VnM8 Premium Vinyl or Engineer Grade Reflective media for the arc flash template. VnM8 Tips TO GET BACK TO THE MAIN MENU PRESS AND HOLD DOWN THE ALT KEY AND EXIT BUTTON Copyright © 2016 Cobra Systems, Inc. All rights reserved... -
Page 18: H) Custom 1 Line
ENTER. 140 VOLTS NOTE: Text copy will be condensed or expanded to accommodate the width & height of the media and size selection. b) 4 x 2 inches (actual size) Copyright © 2016 Cobra Systems, Inc. All rights reserved... -
Page 19: I) Hazardous Waste
To Select the Physical State and SELECT PHYSICAL STATE Hazardous Properties, use the UP & SOLID Down arrows to navigate to Solid or Liquid and Flammable, Toxic, Corrosive, Reactivity, or other. Copyright © 2016 Cobra Systems, Inc. All rights reserved... -
Page 20: J) Vnm8 Apps
1. Scroll to VnM8 APPS and press ENTER. EYE WASH 2. Select EYE WASH and press ENTER. 3. Enter the quantity to print and press ENTER. STATION KEEP THIS AREA CLEAR b) Eye Wash Template 5x7 Copyright © 2016 Cobra Systems, Inc. All rights reserved... -
Page 21: Osha And Ansi Safety Identification
SAFETY Create your sign in SAFETY seconds and save Indicates general information SAFELY IDENTIFYING money and time. necessary to avoid any confusion. HAZARDS IS IMPORTANT IN SAVING LIVES Copyright © 2016 Cobra Systems, Inc. All rights reserved... -
Page 22: Fonts And Symbols
Copyright © 2016 Cobra Systems, Inc. All rights reserved... - Page 23 Copyright © 2016 Cobra Systems, Inc. All rights reserved...
-
Page 24: Connecting To A Pc
Adobe Illustrator, and other popular label design software applications such as VnM® LabelDirect.* *Please note that Cobra Systems does not support custom label design software applications or programs. For technical support on software applications please contact the respective software developer. -
Page 25: Maintenance/Troubleshooting
Check the test print section on the VnM keyboard for the correct print setting. For optimal print quality, and to keep the media and ribbon fingerprint-free, minimize direct contact with the media. Copyright © 2016 Cobra Systems, Inc. All rights reserved... -
Page 26: Accessories
Also, make sure the print head is clean. (Recommend cleaning the print head each time vinyl media and/or ink ribbon is installed.) Keep skin contact to a minimum when working with vinyl media. Copyright © 2016 Cobra Systems, Inc. All rights reserved... -
Page 27: Technical Support/Service And Repair
