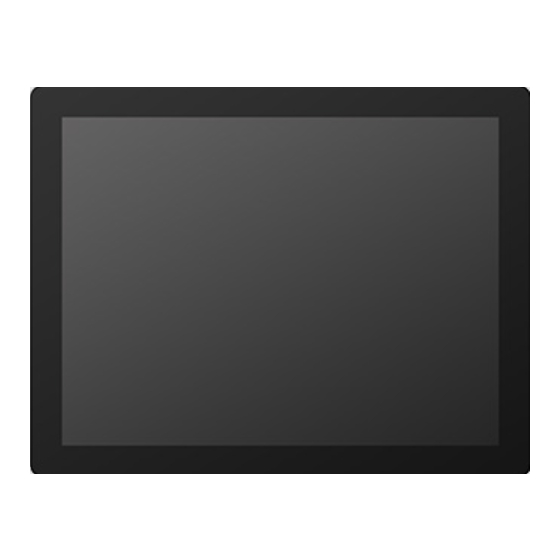

- Page 1 Touch your Imagination Today ProFlat Touch Monitor User Manual : IDP-31150 15〞Projected Capacitive Touch Monitor Version 0.1...
-
Page 2: Disclaimer
Advantech Co., Ltd. Disclaimer The information in this document is subject to change without notice. Advantech Co., Ltd. makes no representations or warranties with respect to the contents hereof and specifically disclaim any implied warranties of merchantability or fitness for a particular purpose. -
Page 3: Table Of Contents
LED on monitor is not lit (no green or amber color can be seen) ....... 13 Display image is not properly sized ..............13 Selected resolution is not displayed properly ............. 13 No touch function ....................13 Enabling an Intelligent Planet www.advantech.com Page 2 of 13... -
Page 4: Important Safety Notice
Use only a properly grounded plug and receptacle. An improper ground may cause electric shock or equipment damage. If you can’t insert the plug into Enabling an Intelligent Planet www.advantech.com Page 3 of 13... - Page 5 Unplug the power cord from the power outlet when monitor is not used. Do not install the product in places with poor ventilation, high light, high temperature or moisture. Enabling an Intelligent Planet www.advantech.com Page 4 of 13...
-
Page 6: Introduction
Introduction About this Manual This manual is intended as a reference guide for the Advantech ProFlat Touch Monitors. This Manual provides the information needed to install, set up and maintain the Advantech ProFlat Touch Monitors. In addition, this manual describes basic technical information about the touch sensor, troubleshooting and contact information. -
Page 7: The Features
Horizontal (left/right) 160°(80°/80°) (From Centre, CR>=10) Vertical (up/down) 160°(80°/80°) Touch Technology Projected Capacitive Touch (P-Cap) Touchscreen Interface Physical Specifications Model IDP-31150 Parameter Length 353.7mm Width 277.7mm Thickness 46.0mm Active area 305.1x229.1mm Enabling an Intelligent Planet www.advantech.com Page 6 of 13... -
Page 8: Unpacking
4. VGA/DVI 2 cable, 5. USB touch cable If any items are missing, please contact your local dealer or the Advantech Service Department. Note: please save the original package in order to ship the monitor in the future. Enabling an Intelligent Planet www.advantech.com... -
Page 9: Hardware Installation
Hardware Installation 3.1 VESA standard installation The IDP-31 touch monitor’s mounting functions include ProFlat, removable base VESA and wall mount. VESA installation holes 3.2 OSD Functions A. MAIN MANU Enabling an Intelligent Planet www.advantech.com Page 8 of 13... -
Page 10: Osd Structure
OSD POSITION HORIZONTAL 0-100 VERTICAL 0-100 SETUP WHITE BALANCE YES/NO LIGHT SENSOR INPUT SELECT VGA/DVI FACTORY RESET YES/NO 3.3 OSD Key Information A. OSD BOARD DOWN MENU AUTO POWER MT-OSD Enabling an Intelligent Planet www.advantech.com Page 9 of 13... -
Page 11: Key Events
Display the OSD Menu or Select highlighted function Select Previous Select Brightness menu item Adjust menu or increase value DOWN Select next menu Select Contrast item or Adjust menu Decrease value Enabling an Intelligent Planet www.advantech.com Page 10 of 13... -
Page 12: Warranty
Warranty Advantech is only under obligation to offer the following Warranty Repair and Services except those authorized formal documents in written form: LCD & Screen repairable: 2 years The above warranty period takes the front four places of the Serial Number label on the Advantech products as the starting date. -
Page 13: Troubleshooting
Check the monitor and your graphics card with respect to compatibility and recommended signal timings. If your text is garbled, change the video mode to non-interlace and use 60Hz refresh rate. Enabling an Intelligent Planet www.advantech.com Page 12 of 13... -
Page 14: Led On Monitor Is Not Lit (No Green Or Amber Color Can Be Seen)
If there is no problem about the software driver, Please replace the Digitizer Pen to have a try. If the problem persists, please contact our technical support engineer. Enabling an Intelligent Planet www.advantech.com Page 13 of 13...
