  • Page 1: Table Of Contents

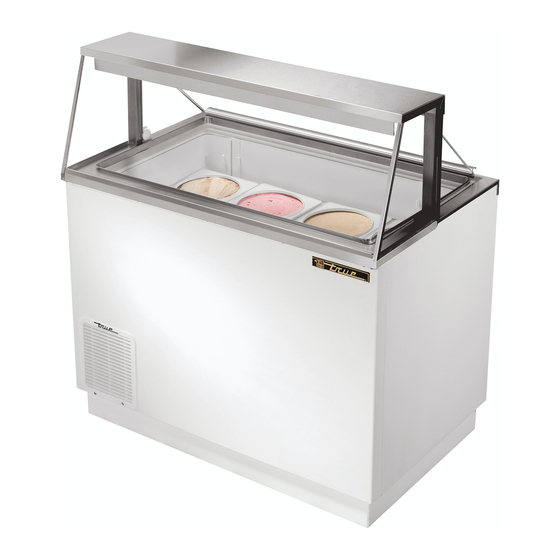

    WARRANTY Warranty TDC-67 INSTALLATION MANUAL tdc dipping cabinets TRUE MANUFACTURING CO., INC. 2001 East Terra Lane • O’Fallon, Missouri 63366-4434 (636)-240-2400 • FAX (636)-272-2408 • INT'L FAX (636)272-7546 • (800)-325-6152 Parts Department (800)-424-TRUE • Parts Department FAX# (636)-272-9471 Web: www.truemfg.com...

  • Page 2: Safety Information

    You have selected one of the finest commercial refrigeration units made. It is manufactured under strict quality controls with only the best quality materials available. Your TRUE cooler when properly maintained will give you many years of trouble-free service. WARNING: Use this appliance for its intended purpose as described in this Owner Manual.

  • Page 3: Proper Disposal, Connecting Electricity, & Adapter Plugs

    NEMA plugs TRUE uses these types of plugs. If you do not have the right outlet have a certified electrician install the correct power source. NOTE: International plug configurations vary by voltage and country.

  • Page 4: Installation

    • Lamps must be replaced by identical lamps only. Before you start to install your TRUE unit, carefully inspect it for • Appliance tested according to the climate classes 5 and 7 freight damage. If damage is discovered, immediately file a claim with temperature and relative humidity.

  • Page 5: Wire Gauge Chart

    TRUE truemfg WIRE GAUGE CHART 115 Volt s Distance In Feet To Center of Load 230 Volts Distance In Feet To Center of Load Amps 20 30 40 50 60 70 80 90 100 120 140 160 Amps 20 30 40 50 60 70 80 90 100 120 140 160...

  • Page 6: Locating And Leveling

    INSUFFICIENT. the side. D. Applicance tested according to the climate classes 5 and 7 for Proper leveling of your TRUE cooler is critical to operating temperature and relative humidity. success (for non-mobile models). Effective condensate removal and door operation will be effected by leveling.

  • Page 7: Installation Of Legs Or Castors

    Four leveling shims have been provided for leveling on uneven floors when using optional castors. Shims must be positioned between the base of the unit and bearing race (See image 3). TRUE recommends a four shim limit to any single castor.

  • Page 8: Sealing Cabinet To The Floor

    CABINET DRAIN (Level should be parallel to cabinet front). Level cabinet. TRUE Dipping Cabinets have a drain at the bottom of the unit. (See Position level at the inside rear of cabinet. (Again level should image 1). The drain hose is located behind the rear grill of the unit.

  • Page 9: Setup

    TRUE provides container holders in each dipping cabinet. The container holders attached to the top of the ice cream containers. TRUE's Dipping Cabinet is built for limited display time before See image 2 to view the container holder. deterioration begins to occur. Ice cream will need long term storage temperatures.

  • Page 10: Operation

    Allow unit to function several hours, completely cooling cabinet before changing the control setting. D. Good air flow in your TRUE unit is critical. Be careful to load product so that it neither presses against the back wall, Temperature Control Location and Settings.

  • Page 11: Mechanical Temperature Controls Sequence Of Operation

    TRUE truemfg MECHANICAL TEMPERATURE CONTROLS COIL SENSING An evaporator coil sensing temperature control ensures that the evaporator coil will remain clear of frost and ice by not allowing the compressor to restart until the coil temperature is above the freezing temperature. This is considered an off cycle defrost.
  • Page 12 TRUE truemfg WHEN TO MAKE AN ADJUSTMENT TO A MECHANICAL TEMPERATURE CONTROL We advise to make a mechanical temperature control adjustment only for a high altitude location. HOW TO ADJUST A MECHANICAL TEMPERATURE CONTROL OPERATION INSTRUCTIONS: Scale Guide for Measuring...
  • Page 13 TRUE truemfg INSTRUCTIONS: DANFOSS TEMPERATURE CONTROL ADJUSTMENT FOR HIGH ALTITUDE APPLICATIONS STEP 1 - Unplug cooler. STEP 2 - Remove the screws that secure the temperature control to the inset box. STEP 3 - To make these adjustments it may be necessary to remove the temperature control from the housing.
  • Page 14 TRUE truemfg CHART CCW Adjustment (based on 360°/ Height complete turn) 2000' 42° 3000' 78° 4000' 114° 5000' 150° 6000' 186° 7000' 222° 8000' 258° 9000' 294° 10,000' 330° BUL. NO.
  • Page 15 TRUE truemfg DEFROST OPERATIONS MANUAL DEFROST: IF ICE BUILDS UP ON INTERIOR WALLS The unit will need to be manually defrosted. Unplug unit until all frost A. Remove product, unplug and roll unit so defrost plug is above is gone. The manual defrost frequency will depend on the units usage, floor drain (or large flat pan).

  • Page 16: Maintenance, Care, Cleaning

    MAINTENANCE, CARE, CLEANING CLEANING THE CONDENSER COIL When using electrical appliances, basic safety precautions should be followed, including the following: TRUE DIPPING CABINETS ARE EQUIPPED WITH REVERSING FAN MOTORS KEEPING THE CONDENSER COIL CLEANER THAN THE CONVENTIONAL FAN MOTORS. TOOLS REQUIRED •...

  • Page 17: Important Warranty Information

    If you cannot remove the dirt adequately, please call your refrigera- tion service company. If you have any questions, please call TRUE Manufacturing at 636-240- 2400 or 800-325-6152 and ask for the Service Department. Direct On most of the reach-in units the condenser is accessible in the to Service Department 1(855)372-1368.

  • Page 18: Stainless Steel Equipment Care And Cleaning

    TRUE truemfg STAINLESS STEEL EQUIPMENT CARE 8 STEPS THAT CAN HELP PREVENT RUST ON AND CLEANING STAINLESS STEEL: CAUTION: Do not use any steel wool, abrasive or chlorine based USING THE CORRECT CLEANING TOOLS products to clean stainless steel surfaces.

  • Page 19: General Maintenance

    TRUE truemfg GENERAL MAINTENANCE MAINTENANCE CLEANING CLEANING: Before cleaning out the interior locate the drain hose in the rear grill area and be prepared to open the line and drain the water into a pan or floor drain. The lid can be removed from the cabinet. (See image 1). If the lid has been removed, wash it with nonabrasive soap or detergent and water.

  • Page 20: Warranty

    TRUE and upon proper installation and start-up in accordance with the instruction packet supplied with each TRUE unit. TRUE’s obligation under this warranty is limited to a period of three (3) years from the date of original installation or 39 months after shipment date from TRUE, whichever occurs first.
