Argos 411/3883 Assembly Instructions Manual

Argos 411/3883 Assembly Instructions Manual

Washington - 2 door 1 drawer

Advertisement

Quick Links

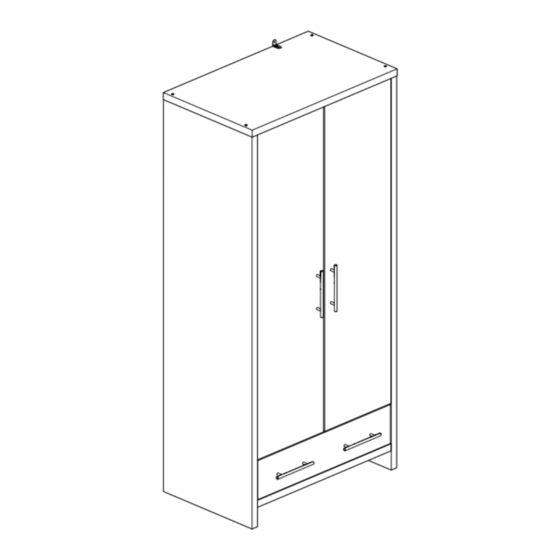

Washington - 2 Door 1 Drawer
Assembly Instructions
Dimensions
Width - 90.2cm
Depth - 55.3cm
Height - 193.4cm
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos 03456 400 800
- Please keep for future reference
411/3883
SMOKEY OAK
414/9015
WARM OAK
Tip : To prevent damage,
we recommend that you
build your unit on the
carton(s) it was packed in.
411/3883
414/9015
Issue 1 - 19/06/15

Advertisement

loading
Need help?

Need help?

Do you have a question about the 411/3883 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Argos 411/3883

  • Page 1 411/3883 SMOKEY OAK 414/9015 WARM OAK Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: Argos 03456 400 800 Issue 1 - 19/06/15...
  • Page 2: Handy Hints

    Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • Do not stand or put weight on •To reduce the components and tools listed the product, this could cause likelihood of on the following pages.
  • Page 3 Components - Panels If you have damaged or missing components, 03456 400 800 call the Customer Helpline: Please check you have all the panels listed below ID-hole Left side Right side Left door Right door (55.1 x 190cm) (55.1 x 190cm) (41.2 x 157.5cm) (41.2 x 157.5cm) P8320...
  • Page 4: Tools Required

    Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. FK1011 FK1010 FK1012 15mm 12mm Locking screw x 14 Locking nut x 2 Large locking nut x 12...
  • Page 5 Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. FK12781 FK12791 PM1515 LA Hinge door x 6 Hinge back x 6 Runner left part A x 1 PM1515 LB...
  • Page 6 Assembly Instructions Step 1 Press the Nylon plug S firmly into left side 1. Screw 11mm locking screw J into left side 1. Note: Insert 11mm locking screw J as far as shown. Finished Do not over tighten. front edge Press the double nylon plug P firmly into left side 1.
  • Page 7 Assembly Instructions Step 2 Press the Nylon plug S firmly into right side 2. Screw 11mm locking Finished front edge screw J into right side 2. Note: Insert 11mm locking screw J as far as shown. Do not over tighten. Press the double nylon plug ID-hole P firmly into right side 2.
  • Page 8 Assembly Instructions Step 3 Insert Support pin W into top 5. Let the flat side of support pin W face the same side as the finished front edge of top 4. Do not overtighten. Finished front edge Step 4 Insert expando housing K into Plinth back 6.
  • Page 9 Assembly Instructions Step 7 Put drop of glue g into the 4 holes of plinth 0. Insert wood dowel M into the 4 holes of plinth 0. Step 8 Attaching panels I AG Put drop of glue g into the2 holes of left side 1 and the 2 holes of right side Position left side 1 and I AG...
  • Page 10 Assembly Instructions Step 10 Fitting back panel Attach foldy back 9 to the back with the coloured surface facing the inside using nails L. Use nail holder X to hold the nails L vertical and at correct distance as you secure the foldy back 9.
  • Page 11 Assembly Instructions Step 12 Hanging doors With help, slot hinge door Z onto hinge back Y. Tighten hinge door screw to lock hinges in postion. Repeat a and b for other door. For adjusting the hinges see ‘adjustment’ on page ‘hinge adjustment’.
  • Page 12 Assembly Instructions Step 13 Preparing drawer Insert locking nuts B into left drawer side # and right drawer side %. Make sure the ‘arrow’ on locking nuts B points towards the hole in the edge of left drawer side # and right drawer side %.
  • Page 13 Assembly Instructions Step 16 Turn over drawer. a: Fix runner left part B b on left drawer side # as shown using screw F. Fix runner right part B d on right drawer side % as shown using screw F. Fix runner left part B b and runner right part B d using screw F.
  • Page 14 V in, as far as you require, under the end of the side of the forniture. Then snap off flush with the side. Assembly is complete. If you need help or have damaged or missing parts, call the Customer Helpline: Argos 03456 400 800...
  • Page 15 A Guide to - Hinge adjustment Adjustment Warning: Do not use an electric screwdriver to attach the hinges as this can weaken the fixing. To move doors up or down: loosen screws shown and move doors to suit. Once doors are aligned, re-tighten.
  • Page 16 A Guide to - Drawer adjustment Adjustment Runner left part A x 2 Runner right part A x 2 Note: Each drawer can be adjust for approximately 1mm up or down on each site of the drawer. Remove drawer, adjust the wheel from runner left part A and runner right part A as shown.
  • Page 17: A Guide To - Wall Mounting & Fixings

    A Guide to - Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your are suitable for supporting your unit.
