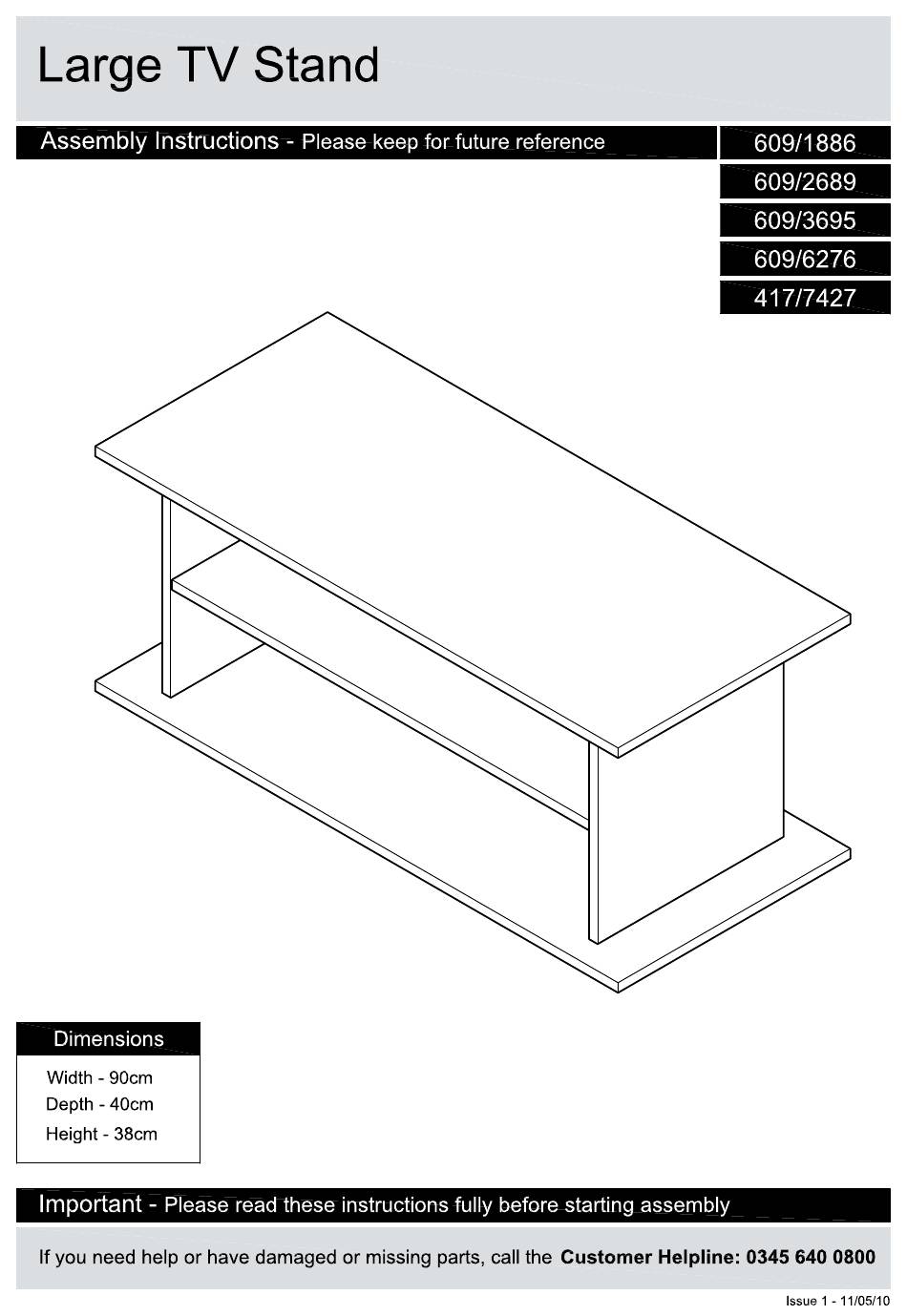

- Page 9 Black Large TV Unit Assembly Instructions - 609/6276 Please keep for future reference Dimensions Width - 90.1cm Depth - 40cm Height - 38cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Version 2 Date: 23/09/11...
- Page 10 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Check you have all the • Do not stand on the product, • We do not components and tools listed on this could cause damage. recommend the pages 2 and 3.
- Page 11 Components - Panels If you have damaged or missing components, call the Customer Helpline: 08456 400800 Please check you have all the panels listed below Pilot holes for guidance only Top panel Bottom panel (90 x 40cm) (90 x 40cm) Right side panel Left side panel Shelf...
- Page 12 Components - Fittings Note: The quantities below are the correct amount to complete the assembly. in some cases mor may be supplied than are required. Wooden dowel x 2 50mm Screw x 16 Screw cover x 8 Locking pin x 4 Locking nut x 4 Foot x 5 14mm Screw x 5...
- Page 13 Assembly Instructions Step 1 Attaching side panels It would be useful Note: back edge to ask someone to help you at this stage. Right side panel Finished Left side panel onto front surface the Shelf Use Screw covers cover the screw heads. back edge Step 2 Attaching back panels...
- Page 14 Assembly Instructions Step 2 - continued Right back panel onto the Right side panel Un nished back panel onto the Left side panel back surface Use Screw cover cover the screw heads. Right back panel Left back panel onto the unit.
- Page 15 Assembly Instructions Step 3 Attaching top panel Screw Locking pins into the Top panel Note: Insert Locking pins as far as shown. Do not over tighten. Note: It would be useful to ask someone to help you at this stage. Position unit onto the Top panel back edge...
- Page 16 Assembly Instructions Step 3 - continued Insert Locking nuts into the Right side panel and Left side panel Use a screwdriver to turn Locking nuts clockwise to lock. Step 4 Attaching feet onto the Bottom panel back surface...
- Page 17 Assembly Instructions Step 5 Attaching bottom panel Bottom panel onto the unit. back edge Step 6 Finishing the unit Note: It would be useful to ask someone to help you at this stage. Carefully stand the TV unit upright. Place the TV unit in the intended position.
