Summary of Contents for Argos 411/7023

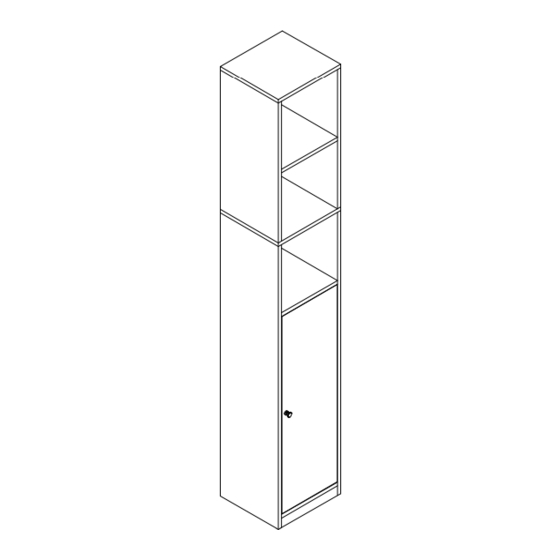

- Page 1 BASIC TALLBOY CABINET 411/7023 30cm 28cm 180cm Issue 1- 30/03/15...
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • During assembly do not stand • We do not components and tools listed on or put weight on the product, recommend the use pages 2 and 3..
- Page 3 Top panel x 1 Upper left side panel x 1 Upper right side panel x 1 (30(w)cm x 28(d)cm) (58.5(w)cm x 28(d)cm) (58.5(w)cm x 28(d)cm) Lower left side panel x 1 Lower right side panel x 1 Shelf panel x 1 (118.8(w)cm x 28(d)cm) (118.8(w)cm x 28(d)cm) (30(w)cm x 28(d)cm)
- Page 4 35mm Male camlock x 24 Female camlock x 24 30mm Wooden dowel x 4 45mm Screw x 4 Hinge x 2 12mm Screw x 10 12mm Screw x 28 Shelf bracket x 4 Knob x 1 16mm Screw x 1 12mm Screw x 1 Safety strap x 1 35mm Screw x 1...
- Page 5 Using Camlocks Connect the male Push the male camlock camlock as directed in into the entry hole. the assembly instructions using a screwdriver. Turn the female camlock lnsert the female clockwise with a camlock as shown in the screwdriver. instructions You should feel a click Note: ensure that the when the camlock is...
- Page 6 Insert 12 x male camlock into top panel upper left side panel upper right side panel and shelf panel shown. Fix 1 x magnetic catch on underside of shelf panel using 2 x 14mm screw as shown. Insert 12 x male camlock into lower left side panel and lower right...
- Page 7 Attach shelf panel upper right side panel using 2 x female camlock as shown. Tighten female camlocks with a screwdriver. Please refer to the “Using Camlocks” section at the front of this instruction for further assistance. Attach upper left side panel to shelf panel using 2 x female...
- Page 8 Attach shelf panel shelf panel and shelf panel to lower right side panel using 6 x female camlock as shown. Tighten female camlocks with a screwdriver. Insert 2 x wooden dowel into cross bar attach it to the lower right side panel as shown.
- Page 9 Connect the assembled upper part to the assembled lower part using 4 x female camlock as shown. Tighten female camlocks with a screwdriver. Attach upper back panel and lower back panel to the assembled part using 28 x 12mm screw as shown.
- Page 10 Insert 4 x shelf bracket into inside of the lower left side panel and the lower right side panel then put shelf panel on them as shown. Gently tighten the upper and the lower 8 x female camlocks and paste 8 x 20mm sticker over the holes of them as shown.
- Page 11 2 x hinge 8 x 12mm screw shown. If you need help or have damaged or missing parts, call the Customer Helpline: 0345 640 0800 Argos LTD. 489-499 Avebury boulevard, Central Milton Keynes, MK9 2NW...
