Altronix RESERV ReServ5WP Installation Manual page 4

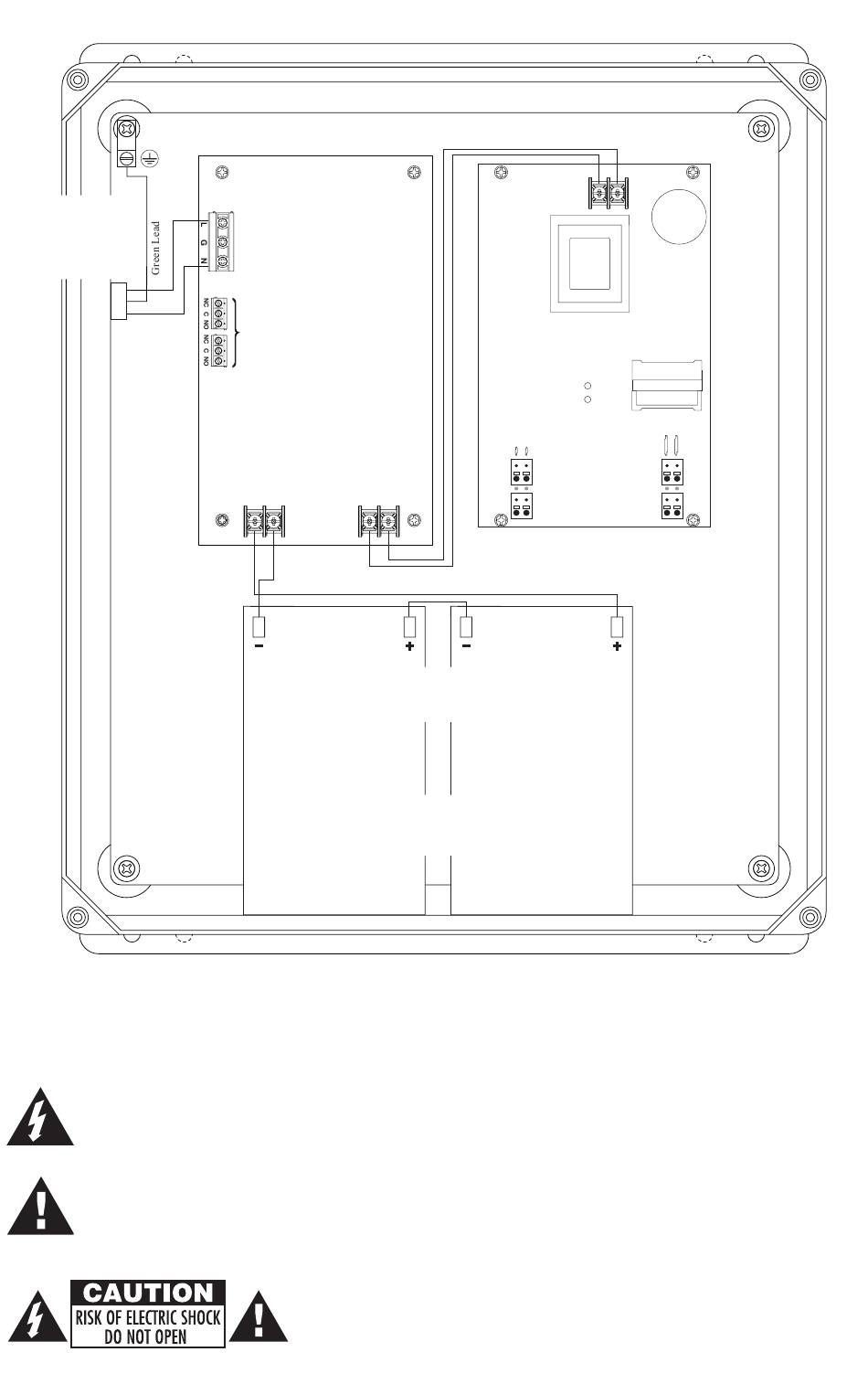

Fig. 1 - ReServ5WP
Ground Lug
Unswitched
115VAC
60Hz, 3.5A
power mains
(non power-limited)
CAUTION: Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteires according to the instructions.
The lightning flash with arrow head symbol within an equilateral triangle is intended to alert the
user to the presence of an insulated DANGEROUS VOLTAGE within the product's enclosure that
may be of sufficient magnitude to constitute an electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying
the appliance.
- 4 -
power-
limited
+ BAT -- -- DC +
Supervised - Non power-limited
12VDC Rechargeable Battery
(order separately)
Note: Two (2) 12VDC rechargeable batteries
connected in series required.
CAUTION: To reduce the risk of electric shock do not open enclosure.
There are no user serviceable parts inside. Refer servicing to qualified
service personnel.
Non power-limited
Input
--- 24VDC +
LOW BATTERY
SHUTDOWN
P
N
1 2
12VDC
Outputs
(1A max.)
15 16
24VAC
Outputs
(4A max.)
ReServ5WP
