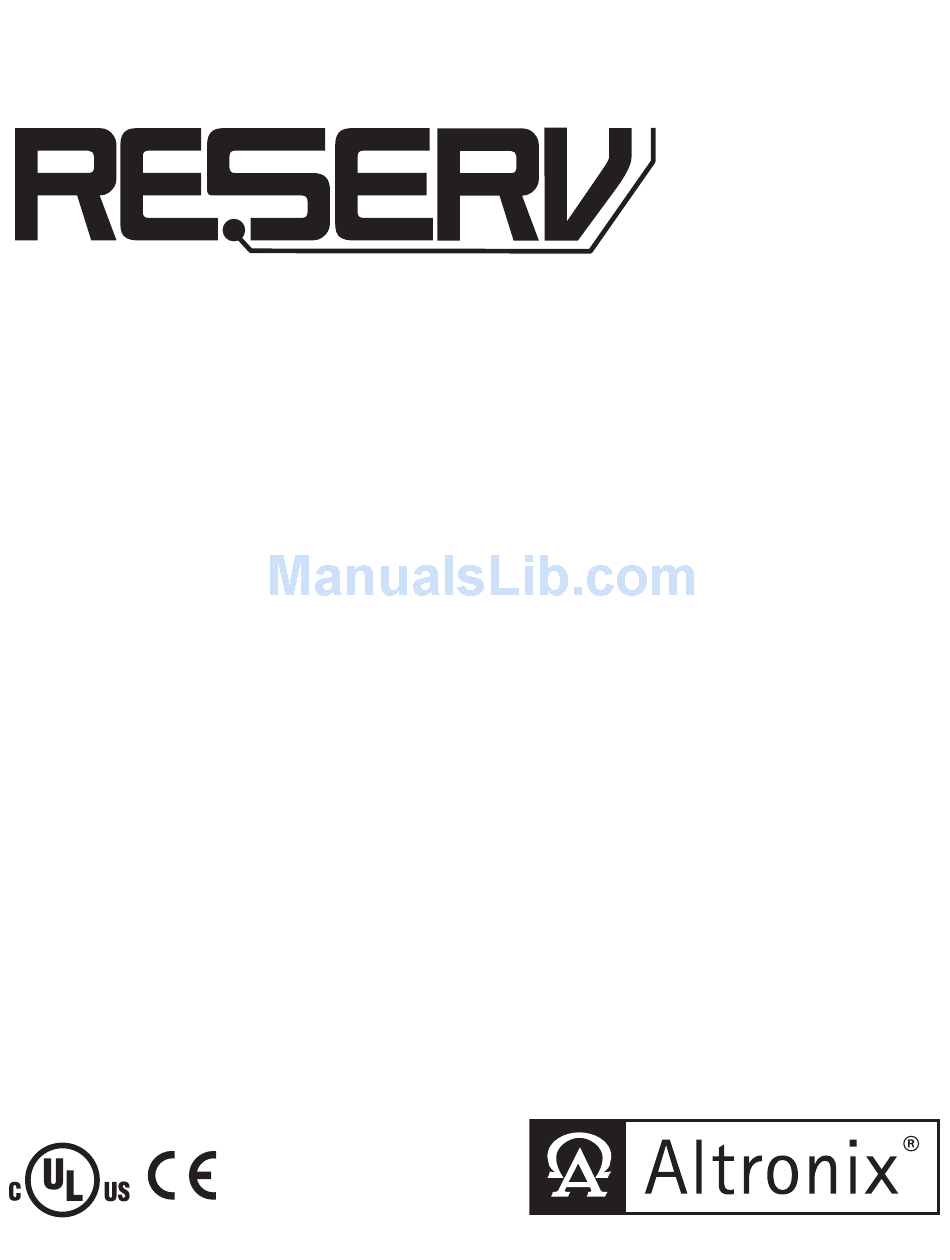

Video Surveillance UPS

Installation Guide

Models Include:
ReServ1
- Twelve (12) true sine wave regulated 24VAC outputs and four (4) regulated 12VDC outputs.
- 4A total supply current @ 24VAC and 2A total supply current @ 12VDC.
- PTC protected power-limited outputs.
ReServ2
- Sixteen (16) true sine wave regulated 24VAC outputs.
- 4A total supply current.
- PTC protected power-limited outputs.
ReServ3
- Sixteen (16) regulated 12VDC outputs.
- 8A total supply current.
- PTC protected power-limited outputs.
Rev. 082510
More than just power.™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ReServ1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Altronix ReServ1

Summary of Contents for Altronix ReServ1

  • Page 1: Installation Guide

    Video Surveillance UPS Installation Guide Models Include: ReServ1 - Twelve (12) true sine wave regulated 24VAC outputs and four (4) regulated 12VDC outputs. - 4A total supply current @ 24VAC and 2A total supply current @ 12VDC. - PTC protected power-limited outputs.

  • Page 2: Specifications

    Specifications: Output: Additional Features: • PTC protected power-limited outputs are rated @ 1A. • True sine wave regulated AC outputs (ReServ1 & Battery Backup: ReServ2). Regulated DC outputs (ReServ1 & ReServ3). • Unit maintains camera synchronization. • Built-in charger for sealed lead acid or gel type batteries.

  • Page 3: Installation Instructions

    6. Connecting cameras/devices: ReServ1 - Connect 12VDC cameras/devices to the terminals marked [P 1-4, N 1-4] (Fig. 1, pg. 5). Connect 24VAC cameras/devices to the terminals marked [5-16] (Fig. 1, pg. 5). ReServ2 - Connect 24VAC cameras/devices to the terminals marked [1-16] (Fig. 2, pg. 6).

  • Page 4: Terminal Identification

    LED Diagnostics (cont’d): ReServ Board LED State Unit Status ------ Normal operating condition. Output LEDs ------ OFF Loss of 24VAC and/or 12VDC output power. ------ Stand-by batteries are low. Low Battery ------ OFF Normal operating condition. ------ Loss of 24VAC and/or 12VDC output power. Discharged stand-by battery. Shutdown ------ OFF Normal operating condition.
  • Page 5 Fig. 1 - ReServ1 Input --- 24VDC + Unswitched 115VAC 60Hz, 3.5A power mains (non power-limited) power- limited LOW BATTERY SHUTDOWN 10 11 12 13 14 15 16 12VDC 24VAC Non power-limited Power- Power-Limited Outputs Limited Outputs CAUTION: Risk of explosion if battery is replaced by an incorrect type.
  • Page 6 Fig. 2 - ReServ2 Input --- 24VDC + Unswitched 115VAC 60Hz, 3.5A power mains (non power-limited) power- limited LOW BATTERY SHUTDOWN 10 11 12 13 14 15 16 24VAC Outputs Non power-limited CAUTION: Risk of explosion if battery is replaced by an incorrect type. Green Dispose of used batteires according to the instructions.
  • Page 7 Fig. 3 - ReServ3 Input --- 24VDC + Unswitched 115VAC 60Hz, 3.5A power mains (non power-limited) power- limited 1,2 V adjust 3,4 V adjust 5,6 V adjust 7,8 V adjust 9,10 V adjust 11,12 V adjust 13,14 V adjust 15,16 V adjust 1 OUT 2 3 OUT 4 5 OUT 6...

  • Page 8: Enclosure Dimensions

    (267mm) (25mm) Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A.
