SIIG DP 4-Port USB 3.0 PCIe i/e Quick Installation Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Introduction

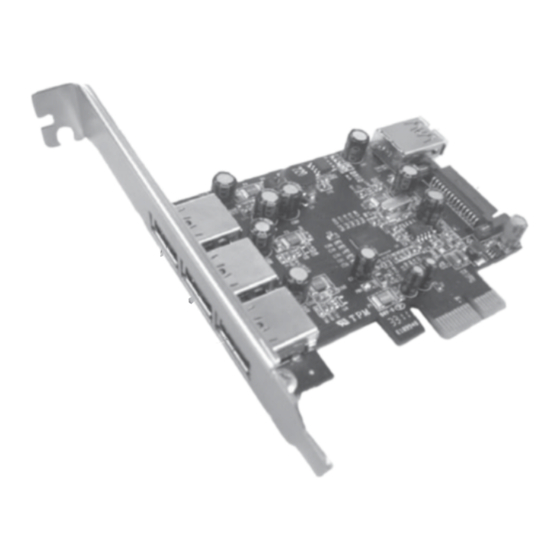

The DP 4-Port USB 3.0 PCIe i/e adds four USB 3.0
ports (1 internal & 3 external) to your
PCIe-enabled desktop PC enhancing existing
systems with the latest USB 3.0 technology.
Key Features and Benefits
•
Adds four SuperSpeed USB 3.0 ports to
PCIe-enabled desktop PC
•
Compliant with Universal Serial Bus 3.0
Specification
•
Compliant with PCI Express Base
Specification
•
Supports per port over-current protection
System Requirements
•
Desktop PC with an available PCIe slot
•
Windows
bit) / XP (32-/64-bit)
04-0816A
DP 4-Port USB 3.0 PCIe i/e
Quick Installation Guide
7 (32-/64-bit) / Vista (32-/64-
®
1

Advertisement

loading

Related Manuals for SIIG DP 4-Port USB 3.0 PCIe i/e

Summary of Contents for SIIG DP 4-Port USB 3.0 PCIe i/e

  • Page 1 DP 4-Port USB 3.0 PCIe i/e Quick Installation Guide Introduction The DP 4-Port USB 3.0 PCIe i/e adds four USB 3.0 ports (1 internal & 3 external) to your PCIe-enabled desktop PC enhancing existing systems with the latest USB 3.0 technology.

  • Page 2: Package Contents

    Package Contents • DP 4-Port USB 3.0 PCIe i/e adapter • Driver CD • Quick installation guide Layout USB 3.0 Port Power Connector (optional)* USB 3.0 Port Figure 1: Board Layout *Note: This power connector is designed to provide additional power to the board when needed.

  • Page 3: Hardware Installation

    Hardware Installation General instructions for installing the card are provided below. Since the design of computer cases and motherboards vary, refer to your computer’s reference manual for further information, if needed. Static Electricity Discharge may permanently damage your system. Discharge any static electricity build up in your body by touching your computer’s case for a few seconds.
  • Page 4 Carefully align the card's bus connector with the selected PCIe slot on the motherboard. Push the board down firmly, but gently, until it is well seated. Replace the slot bracket holding screw to secure the card. Replace the computer cover and reconnect the power cord.
  • Page 5 Windows Vista (32-/64-bit) Install the board and boot up Windows. At the Found New Hardware, click Cancel. Insert the driver CD, close the Windows Explorer screen when displayed. Click Start, in the Start Search box, type D:\setup.exe, press Enter. (Change D: to match your CD/DVD-ROM drive letter) At User Account Controls, click Continue.
  • Page 6 Select I accept the terms of the license agreement, click Next, click Install, then click Finish. To Verify Windows Installation Go to Device Manager to verify installation. For Windows 7, XP: Right click Computer, click Manage, click Device Manager. For Windows Vista: Right click Computer, click Manage, click Continue, then click Device Manager.

  • Page 7: Technical Support And Warranty

    SIIG will, at our discretion, repair or replace (with an identical product or product having similar features and functionality) the product if defective in materials or workmanship.
  • Page 8 Fremont, CA 94538-3152, USA Phone: 510-657-8688 DP 4-Port USB 3.0 PCIe i/e is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. All other names used in this publication are for identification only and may be trademarks of their respective owners.
