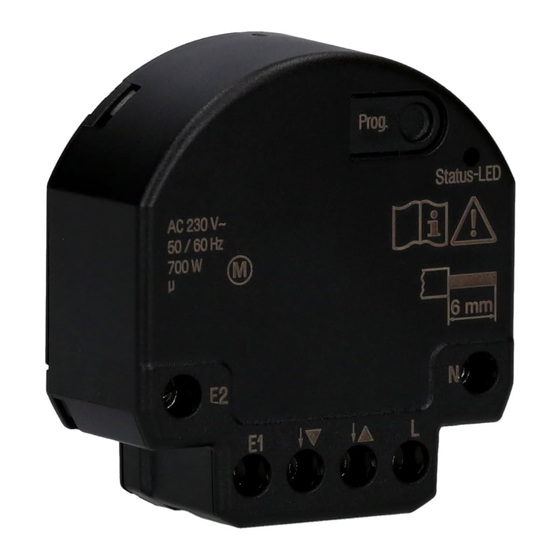

- Page 1 Operating instructions JUNG HOME blinds actuator 1-gang mini with 2 binary inputs Art. no. BTJ1B2U ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de 09.05.2023 82407503 J0082407503 www.jung.de...
-
Page 2: Table Of Contents
JUNG HOME blinds actuator 1-gang mini with 2 binary inputs Table of contents Safety instructions ...................... 3 Device components ...................... 3 Intended use ........................ 4 Product characteristics ..................... 5 Operation .......................... 6 Mounting and electrical connection .................. 8 Commissioning via app .................... 11 Resetting the device to the factory setting.............. -
Page 3: Safety Instructions
JUNG HOME blinds actuator 1-gang mini with 2 binary inputs Safety instructions To avoid potential damage, read and follow the following instructions: Installation only by persons with relevant knowledge and experience in the following areas: – Five safety regulations and standards for the installation of electrical systems –... -
Page 4: Intended Use
– Manual and automatic control of venetian blinds, shutters or awnings – Control via binary inputs of the JUNG HOME actuator, JUNG HOME push-but- ton, JUNG HOME sensors and JUNG HOME app – Polling of conventional switching contacts and push-button contacts for report- ing states, triggering scenes, operating loads, etc. -
Page 5: Product Characteristics
If the device was not previously added to a Bluetooth Mesh network (project) by means of the JUNG HOME app, it will switch to pairing mode for two minutes when the mains voltage returns and the status LED will flash slowly at a regular interval in blue. -
Page 6: Operation
(see table). Configuration in the JUNG HOME app: The two buttons of the Multi push-button are connected to input E1 and E2 to control a device, area or scene together. The link must be activated in the configuration view of the app for this purpose. - Page 7 (see table). Configuration in the JUNG HOME app: The two buttons of the venetian blind push- button are connected to input E1 and E2 to control a device or area together. The link must be activated in the configuration view of the app for this purpose.
-
Page 8: Mounting And Electrical Connection
– If JUNG HOME devices are installed on both sides of a solid wall, they should be positioned as close as possible to each other on the opposite sides of the wall. - Page 9 JUNG HOME blinds actuator 1-gang mini with 2 binary inputs Image 2: Connection example with 2 push-buttons (5) Image 3: Connection example with Multi push-button (6) 82407503 9 / 21 09.05.2023 J0082407503...
- Page 10 JUNG HOME blinds actuator 1-gang mini with 2 binary inputs Image 4: Connection example with venetian blind push-button (7) Image 5: Connection example with wind sensor interface (8) ￭ Connect the venetian blind actuator (4) according to connection examples (see figure 2) to (see figure 5). Observe the clampable conductor cross-sec- tions (see figure 8).
-
Page 11: Commissioning Via App
Mount the cover. Commissioning via app Prerequisite: the JUNG HOME device has not yet been made a participant in a Bluetooth Mesh network; otherwise reset the device to factory defaults. If a Bluetooth Mesh network (project) does not yet exist, start by creating a new pro- ject for the first JUNG HOME device in the JUNG HOME app. - Page 12 If the status LED flashes red very fast, pairing has failed and needs to be re- tried. The JUNG HOME app can then be used to link devices wirelessly and configure the parameters and operation (see list of functions and parameters).
-
Page 13: Resetting The Device To The Factory Setting
The status LED flashes in red more slowly for approx. five seconds. The device has been reset to the default setting. After resetting the device to the default setting, it must be removed from the JUNG HOME app provided it has not already been deleted from the app. -
Page 14: Technical Data
JUNG HOME blinds actuator 1-gang mini with 2 binary inputs Technical data Rated voltage AC 230 V ~ Mains frequency 50 / 60 Hz Standby power max. 0.2 W Power loss max. 4 W Ambient temperature -5 ... +45°C Storage temperature -5 ... -
Page 15: List Of Functions And Parameters
JUNG HOME blinds actuator 1-gang mini with 2 binary inputs List of functions and parameters Adjustable parameters via app The JUNG HOME app can be used to configure all functions of the JUNG HOME device and its behaviour in the Bluetooth Mesh project for the respective individual purposes. - Page 16 JUNG HOME blinds actuator 1-gang mini with 2 binary inputs Parameters Setting options, Explanations Default setting Input behaviour Rising edge: no reaction, The input behaviour can be configured for switch on / dim up / a rising edge (voltage at input is switched...
- Page 17 JUNG HOME blinds actuator 1-gang mini with 2 binary inputs Parameters Setting options, Explanations Default setting Astro timer** Off, sunrise or sunset The astro timer shows the sunrise and sunset times in the course of a calendar Default setting: Off year.
- Page 18 JUNG HOME blinds actuator 1-gang mini with 2 binary inputs Venetian blind actuator settings lj Parameters Setting options, default Explanation setting Operating mode Roller shutter Shutter: A shutter or an awning is con- Venetian blind trolled for which the Fabric-stretching Awning function is required.
- Page 19 JUNG HOME blinds actuator 1-gang mini with 2 binary inputs Parameters Setting options, default Explanation setting Ventilation posi- Ventilation position: 0 … The shutter or the venetian blind stops in tion and slat po- 100% this position when moving down. The...
- Page 20 JUNG HOME blinds actuator 1-gang mini with 2 binary inputs Parameters Setting options, default Explanation setting Slat position 0 ... 100% Slat position after the mains voltage re- when the mains turns. voltage re- Note: Applies only if the "stored position"...
-
Page 21: Accessories
FM-EBG Conformity Albrecht Jung GmbH & Co. KG hereby declares that the radio system type art. no. BTJ1B2U meets the directive 2014/53/EU. You can find the full article number on the device. The complete text of the EU Declaration of Conformity is available under the Internet address: www.jung.de/ce...
