H-9092
MOBILE CLEAR-VIEW
STORAGE CABINET
TOOLS NEEDED
11/32" Nut Driver
(included)
Screwdriver
4
3
5
8
6
14
15
13
16
15
14
PAGE 1 OF 15
1-800-295-5510
uline.com
Flathead
Hammer

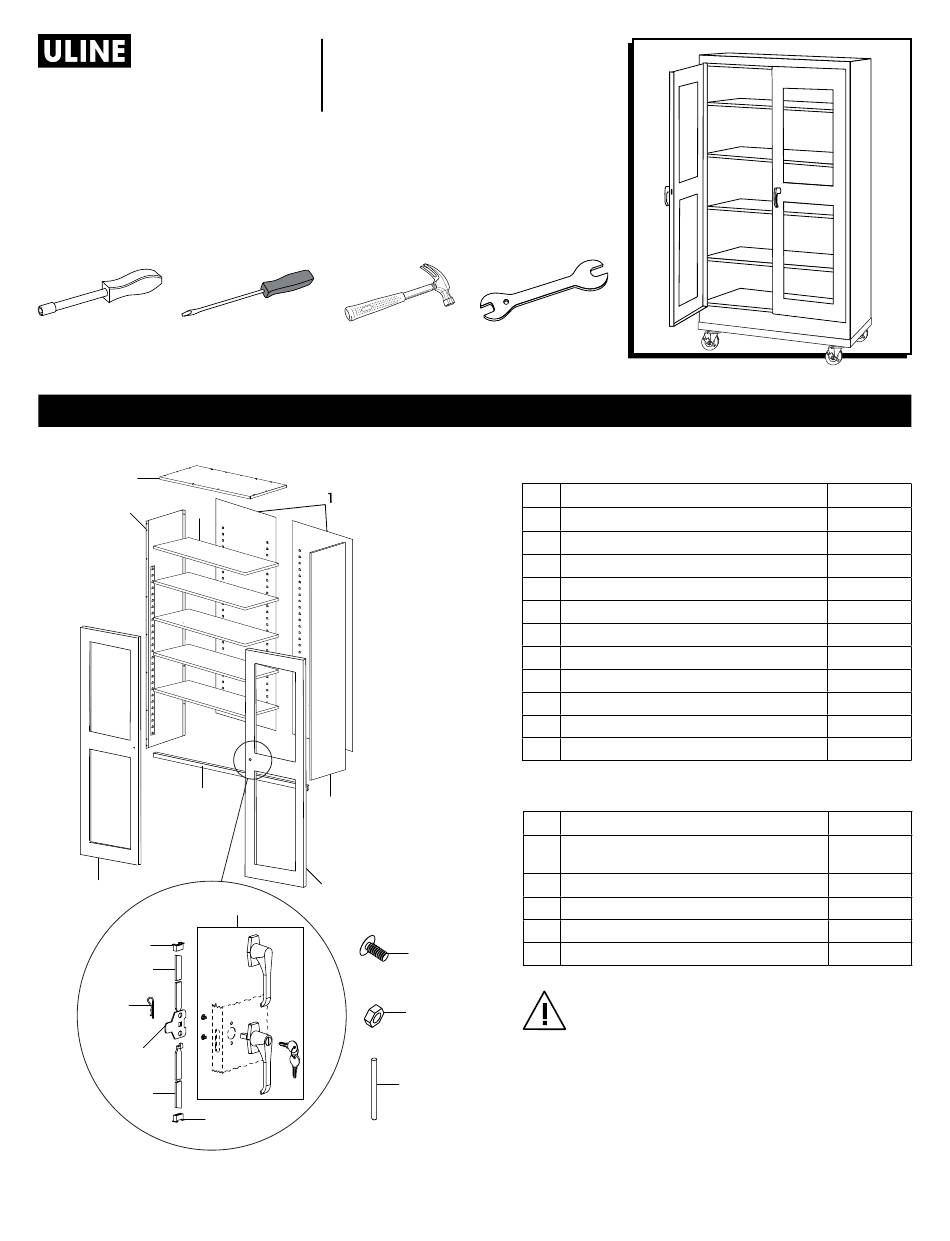

CABINET PARTS
2
7
12
14 mm Wrench
PRIMARY ASSEMBLY
#
DESCRIPTION
1
Back Panel
2
Right Side Panel
3
Left Side Panel
4
Top
5
Shelf
6
Left Door
7
Right Door
8
Sill
9
Bolts (#8-32 x 3/8")
10
Nuts (#8-32)
11
Hinge Pin
HANDLE ASSEMBLY
#
DESCRIPTION
Locking Handle with Keys and
12
Dummy Handle (Set)
13
Cotter Pin
14
Lock Bar Guide
15
Lock Bar (Set)
9
16
Locking Cam
CAUTION! Some parts may have sharp edges.
10
Take care when handling various pieces to
avoid injury. For safety, wear work gloves
when assembling.
11
Para Español, vea páginas 7-12.
Pour le français, consulter les pages 13-18.
0624 IH-9092
QTY.
2
1
1
1
5
1
1
1
25
35
8
QTY.
1
1
2
1
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the H-9092BL and is the answer not in the manual?

Questions and answers

Summary of Contents for U-Line H-9092BL

  • Page 1 Para Español, vea páginas 7-12. Pour le français, consulter les pages 13-18. H-9092 1-800-295-5510 uline.com MOBILE CLEAR-VIEW STORAGE CABINET TOOLS NEEDED 11/32" Nut Driver Flathead Hammer 14 mm Wrench (included) Screwdriver CABINET PARTS PRIMARY ASSEMBLY DESCRIPTION QTY. Back Panel Right Side Panel Left Side Panel Shelf Left Door...
  • Page 2 CABINET ASSEMBLY ASSEMBLING CABINET 3. Attach the top (4) to the unit by sliding the outer flange over the back of the unit and the side flange 1. Place the two back panels (1) on a protected on the top over the side panel. The threaded studs surface.
  • Page 3 CABINET ASSEMBLY CONTINUED 5. Attach the sill (8) to the sides. Place nuts loosely on 7. Using two people, set unit upright and tighten all each of the studs and slide the ends of the sill into nuts and bolts. Insert the remaining shelves. Ensure the slots on both sides of the unit.
  • Page 4 CABINET ASSEMBLY CONTINUED ATTACHING HANDLE 3. With the handle still in the open position, hook the lock bars (15) into the locking cam (16). Once in 1. Place the locking door handle (12) on the right-hand position, slowly rotate the door handle to the closed door and fasten with two slotted bolts and lock position so the lock bars protrude from the holes at washers.
  • Page 5 MOBILE BASE PARTS LIST Base x 1 Caster with Brake x 4 Bolt x 16 Lock Washer x 16 Nut x 16 MOBILE BASE ASSEMBLY 1. Align caster plate with bolt holes on base. Insert four Figure 13 bolts through base into caster plate. Attach bolts with lock washers and nuts.
  • Page 6 H-9092 800-295-5510 uline.mx GABINETE MÓVIL CON FRENTE TRANSPARENTE PARA ALMACENAMIENTO HERRAMIENTAS NECESARIAS Llave de Tuercas de Desarmador Plano Martillo Llave de 14 mm 11/32" (incluidaa) PARTES DEL GABINETE ENSAMBLE PRINCIPAL DESCRIPTION QTY. Panel Posterior Panel Lateral Derecho Panel Lateral Izquierdo Parte Superior Repisa Puerta Izquierda...
  • Page 7 ENSAMBLE DEL GABINETE ENSAMBLAR EL GABINETE 3. Fije el panel superior (4) a la unidad deslizando la pestaña exterior por detrás de la unidad y la 1. Coloque los dos paneles posteriores (1) sobre una pestaña lateral en la parte superior sobre el panel superficie protegida.
  • Page 8 CONTINUACIÓN DEL ENSAMBLE DEL GABINETE 5. Coloque el umbral (8) en los laterales. Coloque las 7. Con la ayuda de otra persona, enderece la unidad tuercas sin apretar en cada uno de los remaches y apriete todas las tuercas y pernos. Inserte las y deslice los extremos del umbral en las ranuras de repisas restantes.
  • Page 9 CONTINUACIÓN DEL ENSAMBLE DEL GABINETE COLOCAR EL ASA 3. Con el asa aún en la posición abierta, fije las barras de seguridad (15) a la leva con seguro (16). Una vez 1. Coloque el asa de bloqueo de la puerta (12) en la en posición, gire lentamente el asa de la puerta a puerta derecha y apriete con dos pernos ranurados la posición de cerrado de forma que las barras de...
  • Page 10 LISTA DE PARTES DE LA BASE MÓVIL 1 Base 4 Ruedas Giratorias con 16 Pernos 16 Rondanas de 16 Tuercas Freno Seguridad ENSAMBLE DE LA BASE MÓVIL 1. Alinee la placa de la rueda con los orificios de la Diagrama 13 base.
  • Page 11 H-9092 1 800 295-5510 uline.ca ARMOIRE DE RANGEMENT MOBILE À PORTES TRANSPARENTES OUTILS REQUIS Tournevis à douille de Tournevis à tête plate Marteau Clé de 14 mm 11/32 po (inclus) PIÈCES DE L'ARMOIRE MONTAGE INITIAL DESCRIPTION QTY. Panneau arrière Panneau latéral droit Panneau latéral gauche Tablette supérieure Tablette...
  • Page 12 MONTAGE DE L'ARMOIRE MONTAGE DE L'ARMOIRE 3. Fixez la tablette supérieure (4) à l'unité en glissant la bride extérieure sur l'arrière de l'unité et la bride 1. Placez les deux panneaux arrière (1) sur une surface latérale supérieure sur le panneau latéral. Les protégée.
  • Page 13 MONTAGE DE L'ARMOIRE SUITE 5. Installez le seuil (8) sur les panneaux latéraux. Placez 7. Avec l'aide d'une autre personne, placez l'unité les écrous lâchement sur chacun des goujons et à l'endroit, puis serrez tous les écrous et boulons. glissez les extrémités du seuil de cadre dans les Installez les tablettes restantes.
  • Page 14 ONTAGE DE L'ARMOIRE SUITE FIXATION DE LA POIGNÉE 4. Glissez les guides de barre de verrouillage en nylon (14) sur les extrémités de la barre de 1. Placez la poignée de verrouillage (12) sur la porte verrouillage (15) et à travers les fentes de la porte. droite et fixez à...
  • Page 15 LISTE DES PIÈCES DE LA BASE MOBILE Base x 1 Roulette avec frein x 4 Boulon x 16 Rondelle de blocage Écrou x 16 x 16 MONTAGE DE LA BASE MOBILE 1. Alignez la plaque de roulette avec les trous pour Figure 13 boulon sur la base.
