- Page 1 QUICK START GUIDE MCIMX93-EVKCM i.MX 93 APPLICATIONS PROCESSOR i.MX i.MX 93 EVKCM APPLICATIONS PROCESSOR QSG...

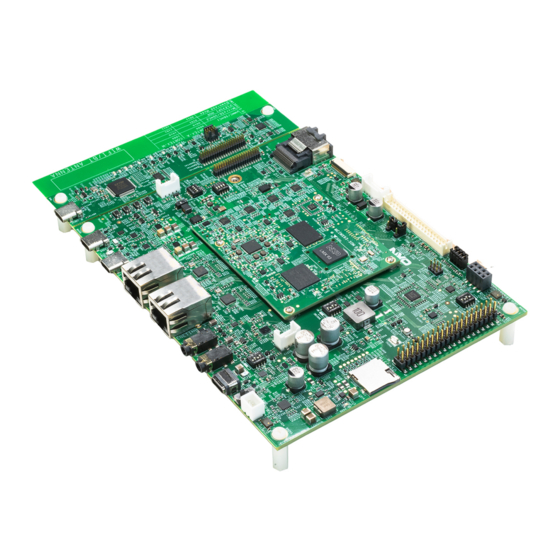

- Page 2 ABOUT THE i.MX 93 EVKCM The i.MX 93 applications processor is the latest member of the i.MX 9 family. It excels in machine learning, vision, advanced multimedia and industrial IoT applications. Elevating edge intelligence, i.MX 93 processors are the solid foundation for products built for smart homes, smart cities, and industrial applications.
- Page 3 QUICK START GUIDE MCIMX93-EVKCM i.MX 93 APPLICATIONS PROCESSOR FEATURES SOM Module • 6-axis IMU w/ I3C support • I C Expansion connector • i.MX 93 applications processor with: • Two 1 Gbps Ethernet – 2x Arm Cortex -A55 ® ®...
- Page 4 GET TO KNOW THE i.MX 93 EVKCM MIPI DSI MIPI DSI LVDS / Back Light LVDS / Back Light MIPI CSI MIPI CSI C EXP C EXP M.2 slot M.2 slot <BOT side> <BOT side> PDM MIC PDM MIC JTAG JTAG GPIO EXP GPIO EXP...

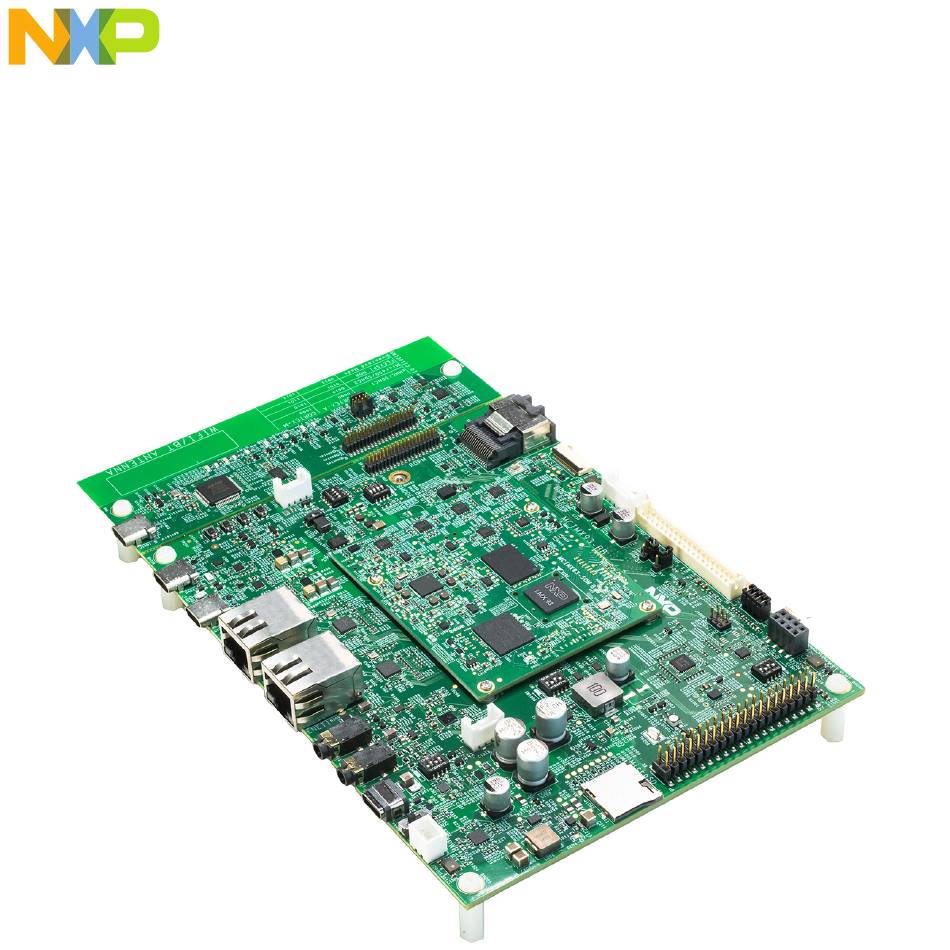

- Page 5 QUICK START GUIDE MCIMX93-EVKCM i.MX 93 APPLICATIONS PROCESSOR GET TO KNOW THE i.MX 93 EVKCM CONTINUED M.2 slot (E-KEY) M.2 slot (E-KEY) Figure 2: Back view i.MX 93 11x11 EVKCM board...
-
Page 6: Getting Started
GETTING STARTED Unpack the Kit The MCIMX93-EVKCM is shipped with the items listed in Table 1. Table 1 — Kit Contents ITEM DESCRIPTION MCIMX93-EVKCM i.MX 93 11X11 EVKCM board Power Supply USB C PD 45W, 5V/3A; 9V/3A; 15V/3A; 20V/2.25A supported USB Type-C Cable USB 2.0 C Male to USB 2.0 A Male... - Page 7 • i.MX 93 EVKCM Board User Manual • Power Consumption Measurement Software Development • Linux BSPs • SCopy of the latest Linux images that are available to program ® on to the eMMC Demo Images • MCIMX93-EVKCM software can be found at nxp.com/imxsw...
-
Page 8: Setting Up The System
Debug Cable run the pre-loaded Linux image on Connect the UART cable into the port JP1401 the MCIMX93-EVKCM (i.MX 93). (Figure 1). Connect the other end of the cable to a PC acting as a host terminal. UART connections will appear on the PC, this will be used as A55 Confirm Boot and M33 core system debugging. - Page 9 QUICK START GUIDE MCIMX93-EVKCM i.MX 93 APPLICATIONS PROCESSOR SETTING UP THE SYSTEM CONTINUED Board Boot Up Connect As the board boots up, you will see 4 penguins appear in the upper left-hand corner of the Power Supply monitor, and then you will see the Linux terminal Connect the USB C PD power supply to J301, Icon on the top left and timer on right top corner .
-
Page 10: Additional Information
ADDITIONAL INFORMATION Boot Switches SW1301[1-4] is the boot configuration switch, the default boot device is eMMC/uSDHC1, as shown in Table 4. If you want to try other boot devices, you need to change the boot switches to corresponding values as listed in Table 4. Note: 1 = ON 0 = OFF... -
Page 11: Boot Mode
QUICK START GUIDE MCIMX93-EVKCM i.MX 93 APPLICATIONS PROCESSOR Table 4 — Boot Device Settings BOOT MODE SW1301-1 SW1301-2 SW1301-3 SW1301-4 From internal fuses Serial Downloader USDHC1 8-bit eMMC 5.1 USDHC2 4-bit SD3.0 FlexSPI Serial NOR FlexSPI Serial NAND 2K page... - Page 12 ADDITIONAL INFORMATION CONTINUED Do more with Accessory Boards LVDS LCD: DY1212W-4856 IMX-MIPI-HDMI 12.1” (WXGA) TFT LCD (BOE EV121WXM-N10-1850) 1024*800 RGB with MIPI DSI output to HDMI adapter board Capacitive Touch Panel (CTP) AUDIO BOARD: MX93AUD-HAT WIFI/BT M.2 MODULE (LBES5PL2EL) Audio expansion board with Wi-Fi 6, IEEE 802.11a/b/g/n/ac + Bluetooth most of audio features 5.2 BR/EDR/LE, NXP IW612 chipset...
- Page 13 QUICK START GUIDE MCIMX93-EVKCM i.MX 93 APPLICATIONS PROCESSOR ADDITIONAL INFORMATION CONTINUED RPI-CAM-MIPI IAS camera to RPi camera adapter (AR0144 sensor)
- Page 14 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.
- Page 15 QUICK START GUIDE MCIMX93-EVKCM i.MX 93 APPLICATIONS PROCESSOR Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 16: Get Started
GET STARTED Download installation software and documentation at www.nxp.com/iMX93EVKCM SUPPORT Visit www.nxp.com/support for a list of phone numbers within your region. WARRANTY Visit www.nxp.com/warranty for complete warranty information. www.nxp.com/iMX93EVKCM NXP and the NXP logo are trademarks of NXP B.V. All other product or service names are the property of their respective owners.
