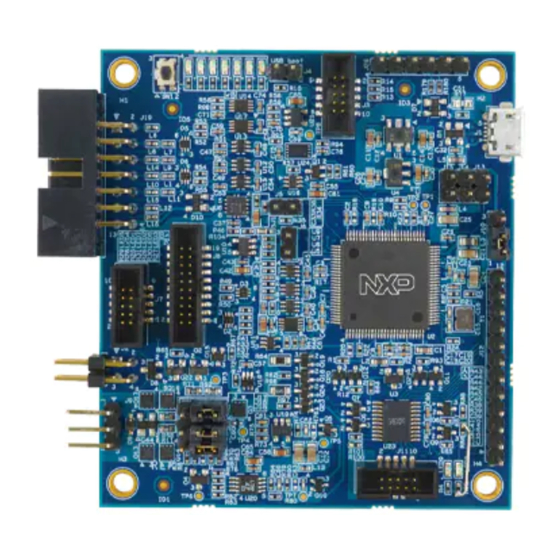

- Page 1 MCU-Link ProUM11673 UM11673 MCU-Link Pro Rev. 1.0 — September 13, 2021 User manual Document information Info Content Keywords MCU-Link Pro, MCU-Link, MCU-LINK-PRO Abstract MCU-Link Pro user manual...
- Page 2 UM11673 NXP Semiconductors MCU-Link Pro Revision history Date Description 20210831 First release Contact information For more information, please visit: http://www.nxp.com For sales office addresses, please send an email to: salesaddresses@nxp.com UM11673 All information provided in this document is subject to legal disclaimers.
-
Page 3: Introduction
USB bridging functions. MCU-Link Pro is one of a range of debug solutions based on the MCU-Link architecture, which includes a very low cost base model and implementations built into NXP evaluation boards. - Page 4 UM11673 NXP Semiconductors MCU-Link Pro • On-board, user-programmable LPC804 for peripheral emulation • Multiple status LEDs for diagnosis of issues • Target reset button UM11673 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2021. All rights reserved.
-
Page 5: Board Layout And Settings
VCOM features. 3.1 Host driver and utility installation A step-by-step installation guide for MCU-Link Pro is provided at the board web page on nxp.com (https://www.nxp.com/demoboard/MCU-LINK-PRO.) The rest of this section explains the same steps as can be found on that page. -
Page 6: Updating Mcu-Link Pro Firmware
(Windows). After setting up the OS drivers, your host computer will be ready to use with MCU-Link Pro, however it is advisable to update to the latest version of the firmware as this may have changed since your MCU-Link Pro was manufactured; see Section 3.2... -
Page 7: Setup For Use With Development Tools
11.3 onwards) will alert you to this when you use the probe in a debug session. If you are using another IDE with the MCU-Link Pro it is advisable to update the firmware to ensure the latest version of firmware is installed. -
Page 8: Target Swd/Swo Interface
(this can happen during profiling and during energy measurement.) A target reset button (SW1) is provided on MCU-Link Pro; note that this does not reset the LPC55S69 MCU-Link processor. 4.2 Powering the target MCU-Link Pro provides an option power to the target system (via the target SWD connector) from one of its on-board regulators. -
Page 9: Vcom (Usb To Target Uart Bridge)
MCU-Link Pro includes a UART to USB bridge (VCOM) function. A target system UART can be connected to the MCU-Link Pro via connector J19 (pin 8 and 9) using the supplied cable. The Violet wire connects to the MCU-Link Pro UART input (target TXD) and Gray to the UART output (target RXD). -
Page 10: Measurement Range Configuration
MCU-Link Pro not necessary to disconnect / reconnect the MCU-Link Pro. It is recommend to power the MCU-Link Pro first when not using the MCU-Link Pro to power the target as the MCU-Link could be back-powered through the current measurement circuit. -
Page 11: Analog Probe
MCU-Link Pro shares USB bandwidth between these devices. 4.6 Analog probe MCU-Link Pro includes an analog signal input that can be used with MCUXpresso IDE to provide a basic signal tracing feature. As at version 11.4 of MCUXpresso IDE this feature is included with the energy measurement dialogs. -
Page 12: Lpc804 User-Programmable Processor
NXP Semiconductors MCU-Link Pro 4.8 LPC804 user-programmable processor An LPC804 in a 20-pin package is included on MCU-Link Pro. This MCU can be used for any purpose but is intended for emulating peripherals or host computers to assist with prototyping. -
Page 13: Lpc55S69 Debug And Uart Connectors
MCU-Link Pro 4.9 LPC55S69 debug and UART connectors Most users of MCU-Link Pro are expected to use the standard firmware from NXP and so will not need to debug the LPC55S69 MCU-Link processor, however SWD connector J3 and may be used to develop code on this processor. One of the available UARTs... -
Page 14: Legal Information
Suitability for use — NXP Semiconductors products are not designed, authorized or warranted to be suitable for use in life support, life-critical or safety-critical systems or equipment, nor in applications where failure or malfunction of an NXP Semiconductors product can reasonably be expected to result in personal injury, death or severe property or environmental damage. -
Page 15: Table Of Contents
Host driver and utility installation ... 5 Updating MCU-Link Pro firmware ... 6 Setup for use with development tools..7 3.3.1...
