- Page 1 Quick Start Guide Multisensory Enablement Kit i.MX 8QuadMax MEK CPU Board Based on i.MX 8QuadMax Application Processor...

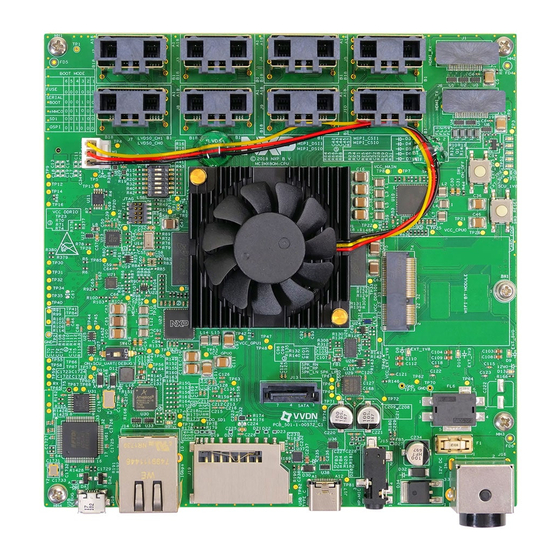

- Page 2 Quick Start Guide GET TO KNOW THE MEK BASED ON i.MX 8QUADMAX APPLICATION PROCESSOR ON-OFF M.2 Connector EXT 5V LED (D9) Button (SW1) (J12) EXT 3.3V LED (D10) Reset Status LEDs EXT 1.7V LED (D8) Button (See Table 5) (SW3 12V Power LED (D13) 12V Power input HDMI TX (J6)
- Page 3 www.nxp.com Board-to-Board Connector for Interface with Base Board Part Number: MCIMX8-8X-BB Figure 2: Bottom View i.MX 8QuadMax MEK CPU board Mini SAS Connector HDMI Connector Figure 3: LVDS to HDMI Adaptor Card Part Number: IMX-LVDS-HDMI...
- Page 4 Quick Start Guide ABOUT THE MULTISENSORY ENABLEMENT KIT BASED ON THE i.MX 8QUADMAX APPLICATION PROCESSOR. The i.MX 8QuadMax Multisensory Enablement Kit (MEK) is an evaluation platform for the i.MX 8QuadMax Application Processor. Hardware design files, software toolsand board support packages (BSPs) for Linux, Android, and FreeRTOS are available for customers to use as a reference for starting design of their products.
- Page 5 www.nxp.com FEATURES The following featuresare available with the MEK CPU board based on the i.MX 8QuadMax application processor: • i.MX 8QuadMax processor with 9 cores • HDMI Receiver-Compatible with (4x Arm Cortex -A53, 2x Cortex-A72, HDMI 2.0 ® ® 2x Cortex-M4F, 1x HIFI4 DSP) •...
-
Page 6: Getting Started
Quick Start Guide GETTING STARTED This section describes how to use the MEK and the required accessories to develop applications using the kit. Unpacking the Kit The MEK is shipped with the itemslisted in Table 1. Ensure the itemsare available in the i.MX 8QuadMax MEK. - Page 7 www.nxp.com Optional Accessories Table 2 lists additional equipment not included with the i.MX 8QuadMax MEK. ITEM DESCRIPTION HDMI Display HDMI Display would be needed to connect to the LVDS to HDMI Adapter card Table 2: Equipment provided by customer...
-
Page 8: Setting Up The System
Quick Start Guide SETTING UP THE SYSTEM Connect the Headphone Card (Optional) Insert the MicroSD card into socket J19 Connect the Headphone to the Audio on the MEK CPU Board. Jack J15 (close to USB type C Connector) Connect Ethernet Cable Connect USB (Optional) Debug Cable... -
Page 9: Display (Optional)
www.nxp.com LVDS Adapter Card and Connect Display (optional) Power Supply Connect the LVDS-to-HDMI daughter Connect the plug of the 12V power card to J2/J3/J7/J8 with the Mini SAS supply to the DIN connector J16. When cable supplied in the package. power is connected to the MEK, it will automatically begin the boot sequence. -
Page 10: Boot Process
Quick Start Guide BOOT PROCESS FOR LINUX IMAGE Boot Process • Switch SW2 to OFF, OFF, ON, ON, OFF, OFF (from 1-6 bit) to boot from the SD card, as shown in Figure 4. • Power on the MEK board. •... -
Page 11: Dip Switch Configuration
www.nxp.com DIP SWITCH CONFIGURATION Table 3 shows the switch (SW2) configuration of boot mode for i.MX 8QuadMax MEK. POS-6 POS-5 POS-4 POS-3 POS-2 POS-1 BOOT DEVICE BOOT From Fuse Serial Download EMMC0 Octal SPI Table 3: i.MX 8QuadMax MEK CPU DIP switch configuration... -
Page 12: Button Functions
Quick Start Guide BUTTON FUNCTIONS Table 4 shows the functions of the push buttons and switches on the board. ITEM DESCRIPTION MEK ON/OFF button • Press and hold f or 0.5 sec to turn ON, press and hold f or 5 sec to turn OFF. -
Page 13: Led Status
www.nxp.com LED STATUS Table 5 shows the status of LEDs on the board ITEM DESCRIPTION Processor RESET status • ON : i.MX 8QM is in Active State , OFF : i.MX 8QM is in Reset State Ethernet speed Indication • ON : 1 Gbps , OFF : 10/100 Mbps PMIC Standby •... -
Page 14: Warranty
SUPPORT Get Started Visit www.nxp.com/support for a list of phone numbers within your region. Download installation software and documentation WARRANTY under “Jump Start Your Design” Visit www.nxp.com/warranty for at www.nxp.com/iMX8QXPMEK. complete warranty information. HOME PAGE Visit www.nxp.com/imx8x for more information. www.nxp.com NXP and the NXP logo are trademarks of NXP B.V. - Page 15 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: MCIMX8QM-CPU...
