MINN KOTA ULTREX QUEST Owner's Manual page 53

2

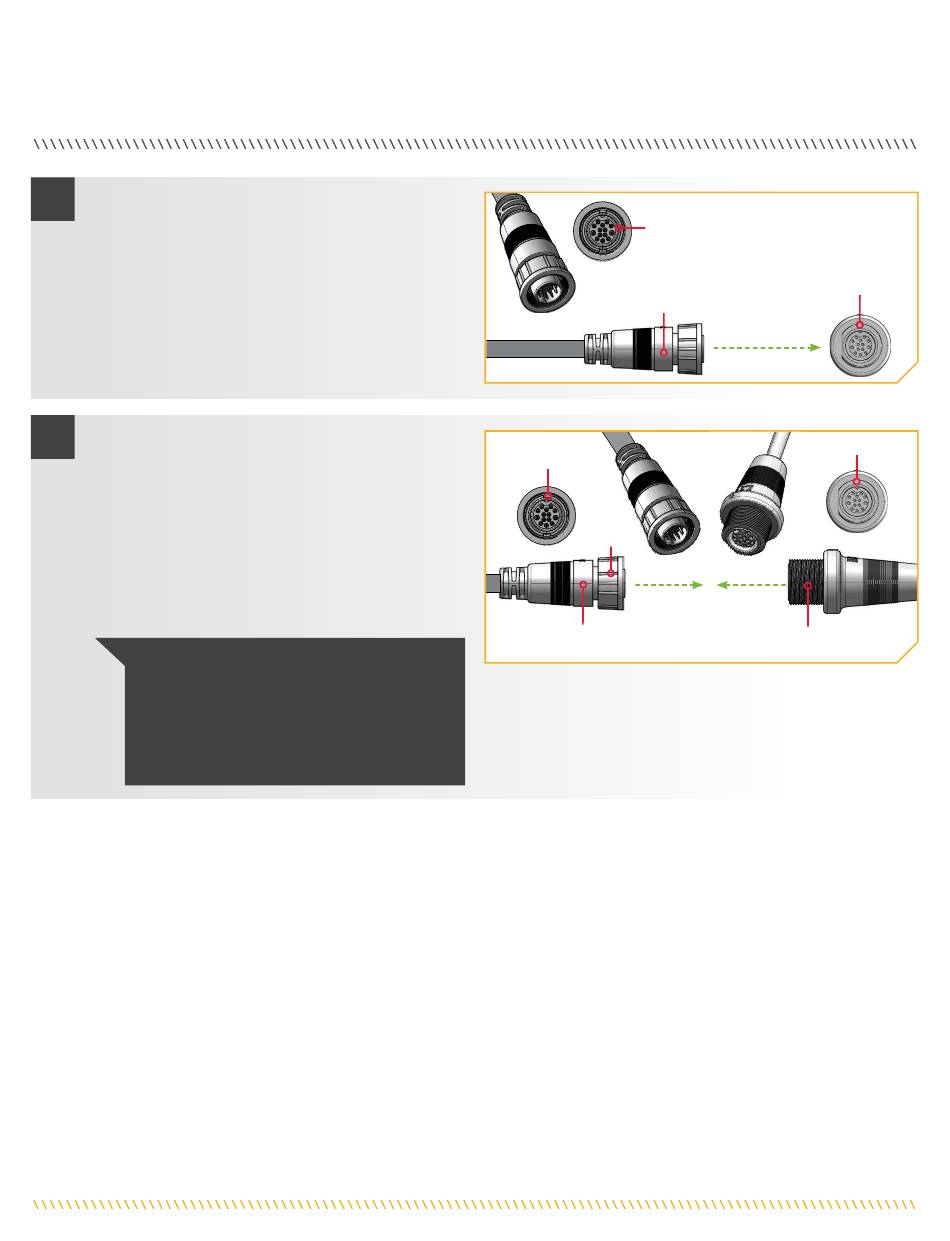

d. If installing directly to a Solix or Apex, the
connection will be flat on the back of the fish
finder display.
e. Align the pins on the Accessory Cable with the
receptacle on the fish finder. Notice the keyed
connectors. Tighten the Collar from the accessory
cable to secure the connection. Once directly
installed to the Solix or Apex, the connection
is complete.
3
f. If installing directly to a Dual Spectrum CHIRP
Extension Cable, align the pins on the accessory
cable with the receptacle on the extension cable.
Notice the keyed connectors. Tighten the Collar
from the accessory cable to secure the connection.
g. If the Dual Spectrum CHIRP extension cable will be
attached directly to a Humminbird
the connection will look exactly like the installation
directly into a Humminbird Solix or Apex fish finder.
NOTICE: A 10-foot extension cable
(EC M3 14W10 - 10' transducer extension
cable - 720106-1) and a 30-foot extension cable
(EC M3 14W30 - 30' transducer extension cable
- 720106-2) are available from
johnsonoutdoors.com.
©2023 Johnson Outdoors Marine Electronics, Inc.
Fourteen Pin Fourteen Pin
® Solix or Apex,
Dual Spectrum Accessory Cable Dual Spectrum Accessory Cable
humminbird.
duAl sPeCtrum ChirP
Fourteen Pin Fourteen Pin
Connector Connector
Dual Spectrum CHIRP Dual Spectrum CHIRP
Accessory Cable from Accessory Cable from
Trolling Motor Trolling Motor
Connector Connector
Collar Collar
from Trolling Motor from Trolling Motor
Solix or Apex Solix or Apex
Fish Finder Fish Finder
Receptacle Receptacle
Dual Spectrum CHIRP Dual Spectrum CHIRP
Extension Cable Extension Cable
minnkota.johnsonoutdoors.com | 53
