CE Master User Manual for
NOTE: Do not return your Minn Kota motor to your retailer. Your
retailer is not authorized to repair or replace this unit. You may
obtain service by:
• calling Minn Kota at 1-800-227-6433 or 1-507-345-4623;
• returning your motor to the Minn Kota Factory Service Center;
• sending or taking your motor to any Minn Kota authorized
service center on enclosed list.
Please include proof of purchase, serial number and purchase
date for warranty service with any of the above options.
serial number
purchase date
PLEASE THOROUGHLY READ THIS USER MANUAL. FOLLOW ALL
INSTRUCTIONS AND HEED ALL SAFETY & CAUTIONARY NOTICES
BELOW. USE OF THIS MOTOR IS ONLY PERMITTED FOR PERSONS THAT
HAVE READ AND UNDERSTOOD THESE USER INSTRUCTIONS. MINORS
MAY USE THIS MOTOR ONLY UNDER ADULT SUPERVISION.

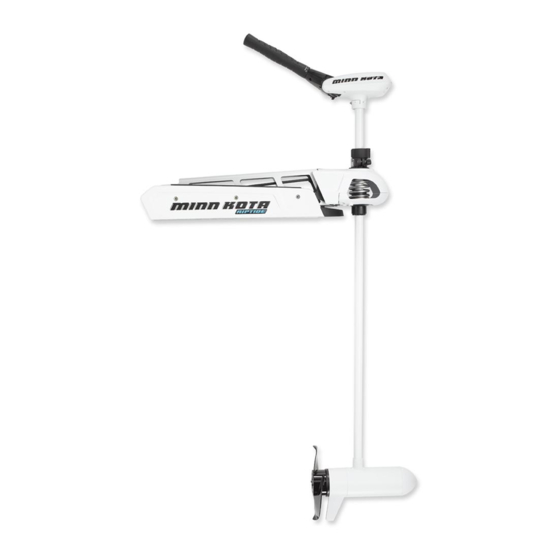

RIPTIDE
RIPTIDE
TRANSOM
MOUNT
MOTORS
pg. 2-3
pg. 4
pg. 5
pg. 6-8
Battery
pg. 9-10
pg. 10
pg. 11-12
pg. 13
pg. 13
pg. 13
pg. 13
pg. 14
