If the default template is used to create the area, the default occupancy set behavior is:
• Mode: Occupancy
• Occupancy Hold Time: 20 minutes
• Energy Saver Mode: Enabled
• Energy Hold Time: 10 minutes
Follow the steps in this section if:
• additional occupancy sets are needed because lights need to react to occupancy sensors in different ways within the same area (Part 1)
• zones have been added to an area with multiple occupancy sets and the zones need to be assigned to the correct occupancy set (Part 2)
Occupancy set behavior modification and renaming will be discussed in a later section. See "Modify Occupancy Sets in Networked Areas" on
page 87.
Part 1: Create New Occupancy Sets
It may be necessary to create additional occupancy sets if motion in one zone should not trigger lighting in another zone or if zones need to
operate differently with motion commands. In this case, each zone would need an occupancy set to separate out the motion response. Up to 6
occupancy sets can be created in the area.
An internet connection is not required to manage an occupancy set. A Bluetooth connection is not necessary to add or manage occupancy sets
unless devices have previously been provisioned to the area.

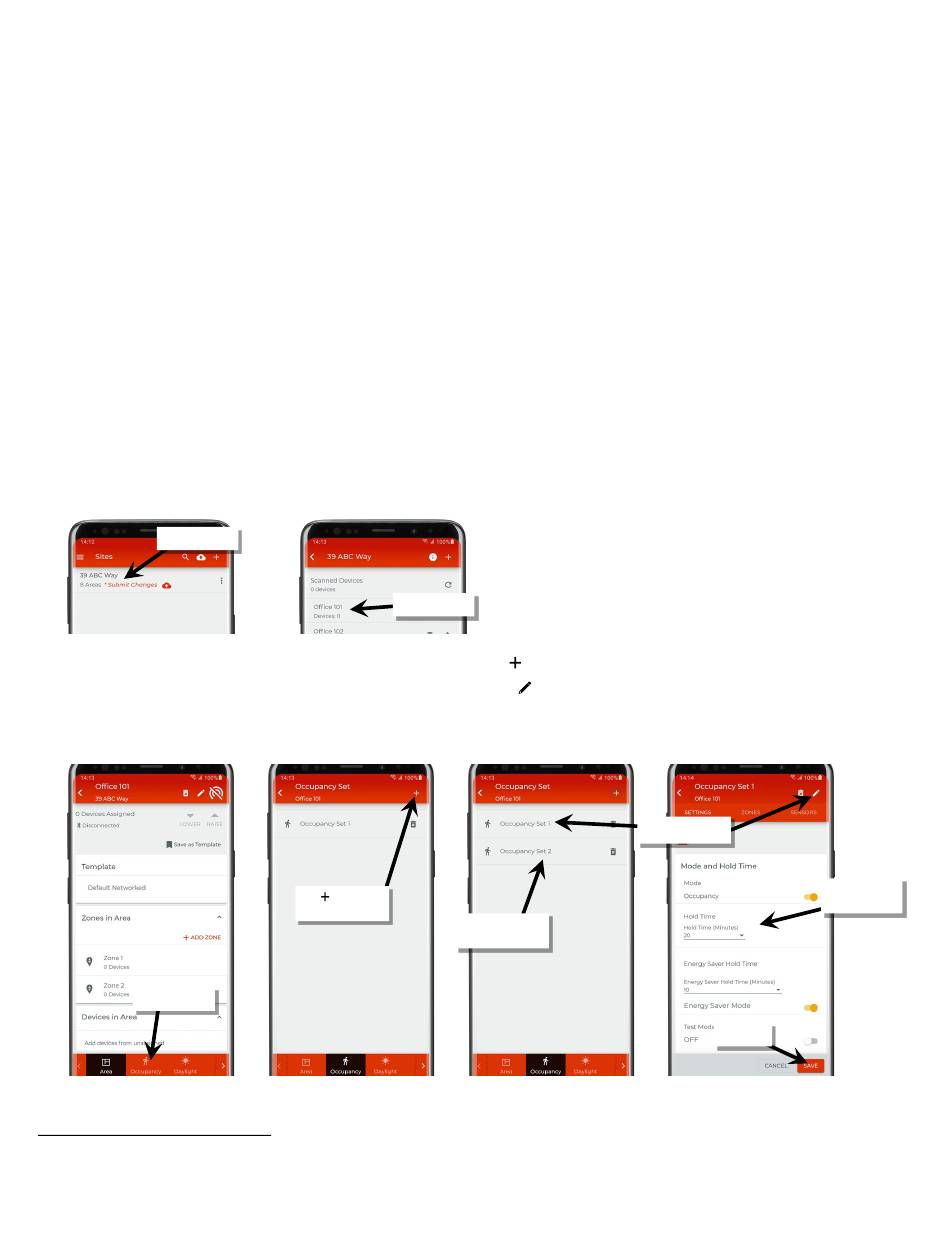

To create a new occupancy set:
1: Open the WaveLinx Lite Mobile Application.
2: In the site list, select a site and then select the desired area.
Select the site
3: Tap on the 'Occupancy' option to open the occupancy set list and then tap ' ' to add an occupancy set.
4. (Optional) Tap the occupancy set to open the details page and then tap edit '
5. Assign any necessary settings for the occupancy set. See "Adjust Occupancy Set Settings" on page 90 for details.
6. Repeat until all needed occupancy sets are created.
Tap 'Occupancy'
60 If occupancy is sensed in the 30 seconds after an unoccupied command is issued (grace period), the device will resume the previous light level. If outside of the grace
period, the light level issued when occupied will be as defined for the occupied command. Devices with older firmware may not observe the 30 second grace period.
61 If the area has devices provisioned, modification of a previously created area parameters will require a Bluetooth connection to the WaveLinx Lite network in the area. Stand
within range (within 60 feet) of any line voltage WaveLinx Lite device that is provisioned to this area.
61
Select the area
Tap ' ' to add an
occupancy set
Created occupancy
sets
• Occupied level/state: Default Zone level 100%/ON
• Energy Saver level: 50%
• Unoccupied level/state: Default Zone level 0%/OFF
' to give the occupancy set a descriptive name.
Tap to rename
60
Assign desired
settings
Tap 'Save'
