Viewing Battery Status of Battery Powered Wallstations

Along with LED indicators on board each wallstation, the mobile app allows visibility of the battery status of battery powered wallstations.

Battery powered wallstations are always provisioned in networked areas.

Please refer to "Battery Powered Wallstation Reference Sheet" on page 20 for details on monitoring battery status through the onboard

wallstation LED indicator.

To view the battery status through the mobile app:

1: Bring the mobile device within range (within 60 feet) of any line voltage powered provisioned WaveLinx Lite device in the desired area.

2: Ensure that the mobile device Bluetooth is turned on, and then open the WaveLinx Lite Mobile Application.

3: In the site list, select a site.

4: In the area list, select the desired area. After a short delay, verify that the area shows that the mobile application is connected to the network.

Tap on the

icon if it is necessary to refresh the connection.

5: In the 'Devices in Area' list, locate the battery powered wallstation. Tap on the wallstation to open it for configuration. When prompted to

wake the station, press any button on the wallstation and then tap 'Confirm'.

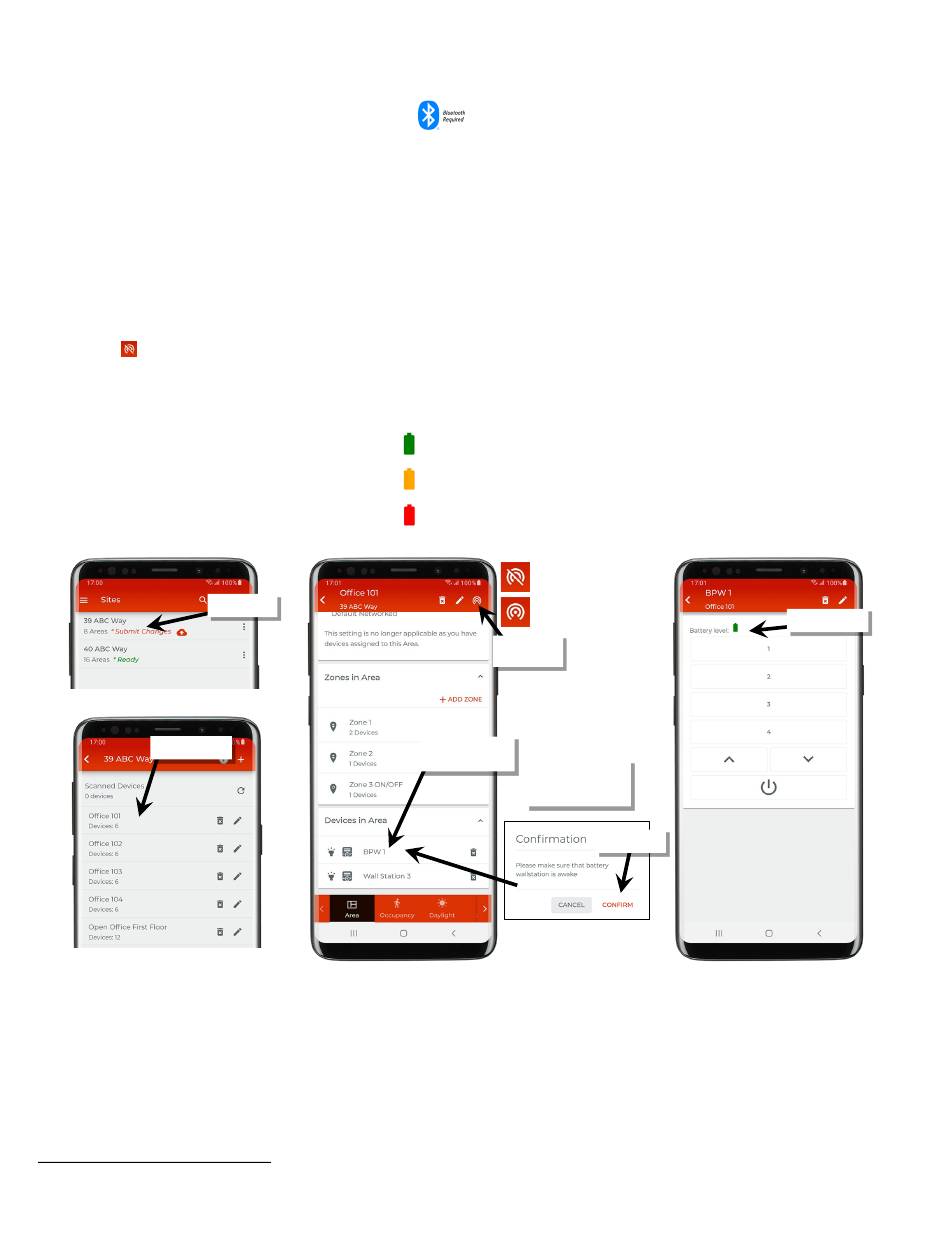

6: The icon above the wallstation on the display will indicate the current battery status:

• Battery OK (over 2.7V)

• Battery low (2.5V to 2.7V)

• Battery very low (under 2.5V)

Select the area

If the battery level falls below 2.5V, the wallstation will prompt for a battery replacement if the user attempts a firmware update and will not allow the firmware update to

proceed.

146

www.cooperlighting.com

= Green icon

= Yellow icon

= Red icon

Select the site

Not connected

Connected

Verify network

connection

Select the battery
