To modify scene levels:
1: Bring the mobile device within range (within 60 feet) of any provisioned line voltage powered WaveLinx Lite device in the desired area.
2: Ensure that the mobile device Bluetooth is turned on, and then open the WaveLinx Lite Mobile Application.
3: In the site list, select a site.
4: In the area list, select the desired area and verify that the network is connected.
5: Tap 'Scenes' to open the scene list.
6: Tap the gear icon ' ' on the row for the desired scene.
Note: Tapping the row of the scene anywhere other than on the gear icon will issue the scene command and change the light levels.
7: Set the scene attribute options first. This includes:
• Optionally changing the name. Tap the name field and type the
desired unique scene name.
• Slide the switch to select between the option to adjust in 'Static'
mode or 'Live' mode. Adjustments to the scene levels made in
'Static' mode will have no effect on current light levels.
Adjustments made in 'Live' mode happen in real-time to allow
visibility of the effect on lighting.
Note: If adjustments are made in 'static' mode and then mode is switched to
'live', lighting may not reflect the adjusted levels. Adjust to another level and
then back to the desired level to refresh light levels.
8: Assign the desired zone operation for each zone in the scene.
• Optionally uncheck a zone to ignore it from the scene. The ignored
zone will stay at its previous light level when this scene command
is issued. If zones should operate as part of the scene, make sure
they are checked.
• Use the adjustment tools in each zone section to modify the scene
response, adjusting the percentage for each dimmable zone or
selecting between ON and OFF for non-dimmable or receptacle
zones. Scroll down to see additional zones beyond the page view.
9: Tap 'Save' to save the changes and then repeat for any additional
scenes that require changes.
100
www.cooperlighting.com

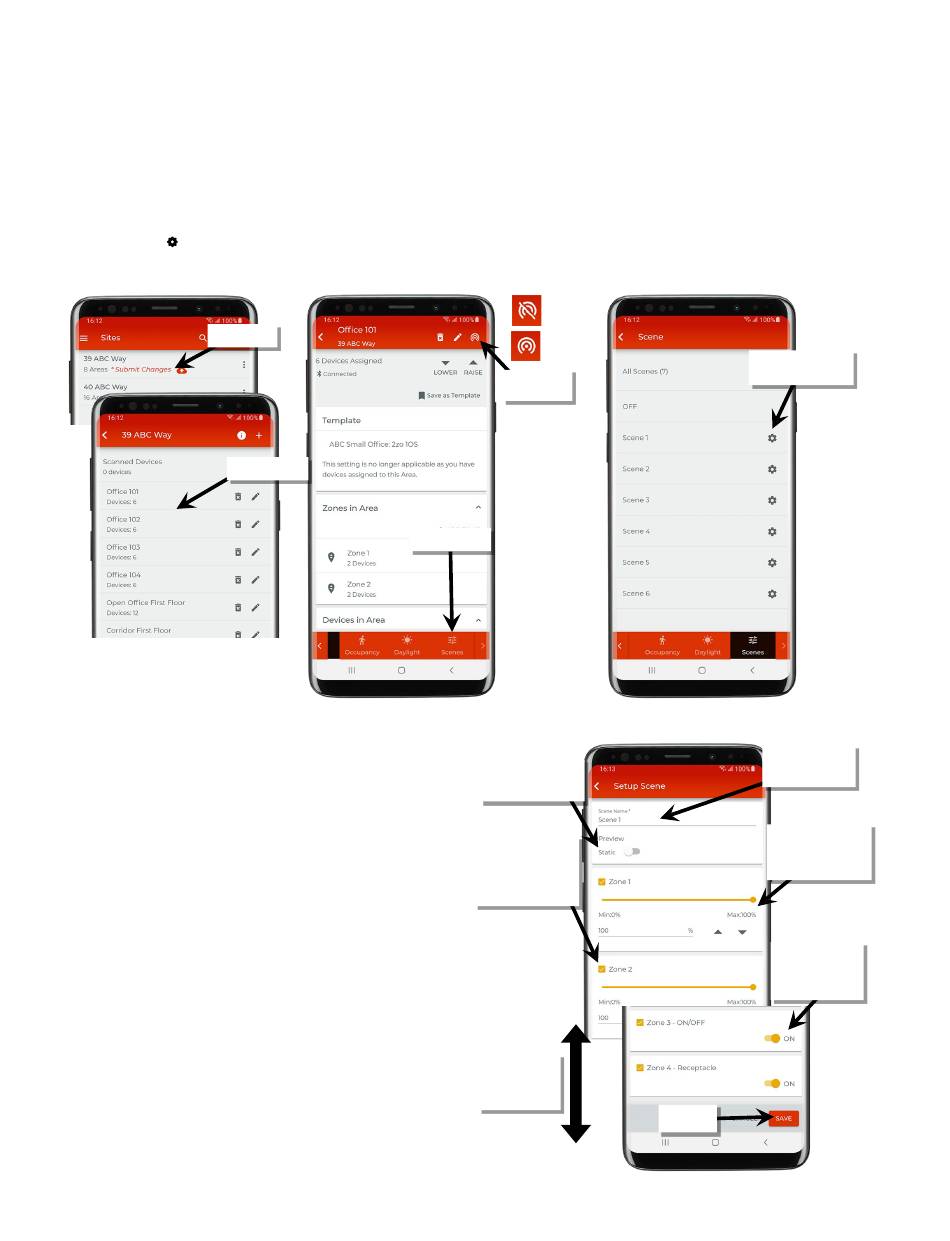

Select the site
