Control Lighting at Different Light Levels from the Same Daylight Sensor
One area can have up to six open loop daylight sets. A different sensor can be assigned to each open loop daylight set, or one sensor can be
assigned to multiple daylight sets. This section shows one common application in which one sensor is assigned to two open loop daylight sets.
The outputs for the lighting that belongs to Zone 1 are assigned to the daylight set labeled Window Zone 1. The outputs for the lighting that
belongs to Zone 2 are assigned to the daylight set labeled Window Zone 2. The same sensor is assigned to both daylight sets.
Each daylight set is adjusted for the optimal light level based on the incoming daylight. Note that Zone 1 is adjusted for a more aggressive
response than Zone 2 which is further from the window.
118
www.cooperlighting.com

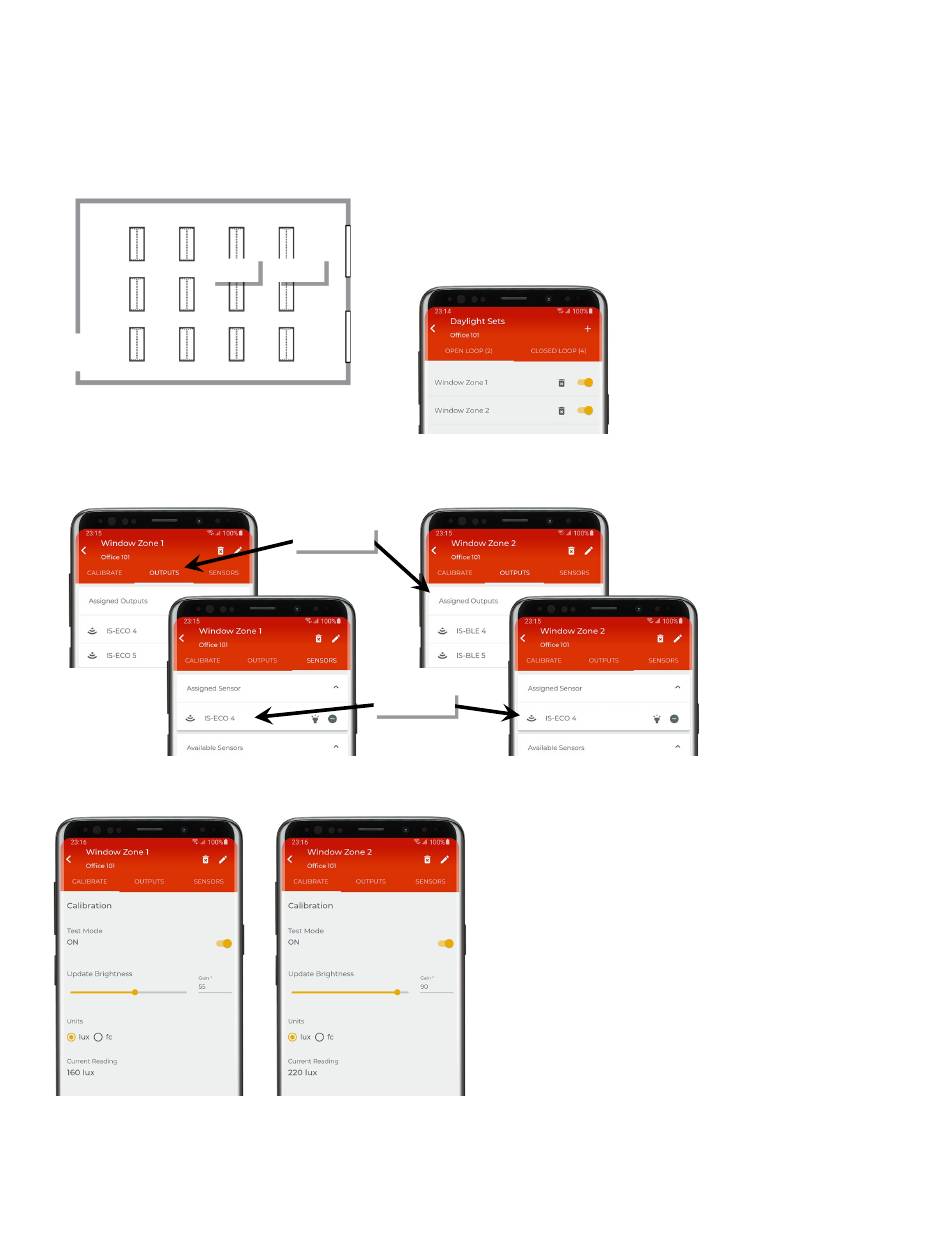

In this example, there are two daylighting zones in the space, the lighting closest to
the window is Zone 1. The secondary row of lighting further into the space is Zone 2.
Both zones need to perform open loop daylighting from the same daylight sensor.
Zone 1 needs to dim more aggressively than Zone 2 due to its proximity to the
window.
Two open loop daylight sets are created in the area.
Zone 2 Zone 1
Different outputs
Same sensor
