Summary of Contents for anko VCB45-16A

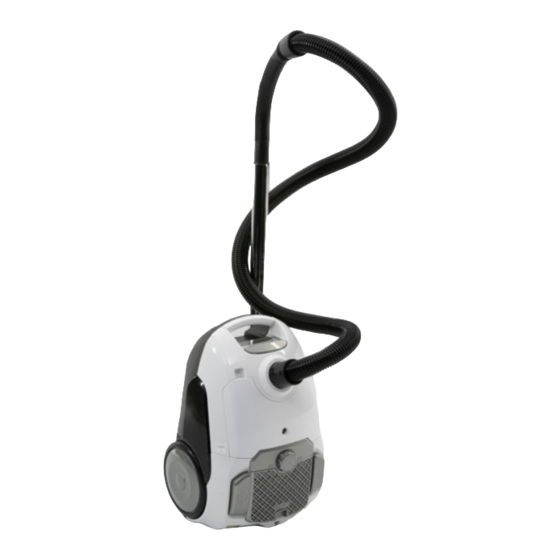

- Page 1 Vacuum Cleaner VCB45-16A User Manual PLEASE READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
Table of contents 1 Symbol explanation....................3 2 Safety instructions..................3 3 Operating elements..................... 7 4 Before first use.......................8 5 Assembly..........................8 6 Operation..........................9 6.1 General use ......................9 6.2 Suction power control settings..............10 6.3 Air flow regulator ..................10 6.4 Nozzle attachments ..................10 7 Care and cleaning ......................11 7.1 Dust bag replacement ..................11 7.2 Filter maintenance ......................12... -
Page 3: Symbol Explanation
1 Symbol explanation WARNING! This symbol warns the user against potential health hazards and points out risks of injuries. NOTE This symbol alerts user to the presence of important operating and servicing instructions. 2 Safety instructions 1. Before operating the appliance for the first time read these instructions carefully. - Page 4 11. Children should be supervised to ensure that they do not play with the appliance. 12. Do not leave the appliance unattended when in use. 13. Protect the appliance against heat, dust, direct sunlight, moisture, dripping and splashing water. If the appliance is wet or exposed to high humidity, unplug it immediately.
- Page 5 29. Never use the appliance without the filt ers in place. Never use the appliance without a dust bag. 31. DO NOT pull the power cord beyond the yellow marking. 32. DO NOT vacuum water, wet objects, liquids, ashes, hot coals, cigarette butts or any hot smoking or burning objects, etc.
-
Page 7: Operating Elements
3 Operating elements 1. Wheel 2. Power cord with plug 3. Storage holder, rear and bottom 4. Cable rewind button 5. Ventilation grille 6. Ventilation grille release lever 7. ON/OFF switch 8. Suction power control button 9. Dust bag full indicator 10. -
Page 8: Before First Use
4 Before first use 1. Remove all packaging materials from the product. Dispose of all the packaging materials in an appropriate way. Contact your local authorities about collection points or waste separation. 2. Check the shipment for completeness and possible shipping damage. In case of shipping damage or incomplete shipment, contact Kmart for replacement. -
Page 9: Operation
6 Operation 6.1 General use 1. Pull out the power cord (2) to the required length. Do not pull further than the yellow marking on the power cord to avoid damage. 2. Insert the power plug into a suitable mains supply socket. 3. -
Page 10: Suction Power Control Settings
6.2 Suction power control settings Turning the suction power control button (8) clockwise to increase power and turning anticlockwise to decrease the power(Fig.1). Please refer to the following recommended power settings: MIN: for curtains and delicate fabrics Medium: for high-pile carpets and textile flooring MAX: for sturdy rugs and floors Fig.1 6.3 Air flow regulator... -
Page 11: Care And Cleaning
7 Care and cleaning 1. Do not use alcohol, acetone, benzene, scouring cleaning agents, etc. to clean the synthetic parts of the appliance. Do not use hard brushes or metal objects. 2. Do not immerse the appliance or power plug in water or any other liquids. 3. -
Page 12: Filter Maintenance
7.2 Filter maintenance Your appliance is equipped with two filters. A motor filter (inlet filter) and an exhaust filter. Both filters need regular maintenance as per below instructions. Motor filter 1. Clean the motor filter (B) when changing the dust bag. The motor filter is washable. 2. -
Page 13: Storage
3. Remove the exhaust filter and wash it in clear warm water. Do not add any cleaning agents as they damage the filter. 4. After washing, dry the exhaust filter completely. If necessary, let it dry in the air. 5. Place the exhaust filter back to its original position. 6. -
Page 14: Technical Data
8 Technical data VCB45-16A Model No.: 22 0 - 2 40 V ~ 50/60 Hz Power supply: Power consumption: 2000W 9 Trouble shooting Problem Possible cause and solutions • Dust bag full - replace dust bag Poor suction power • Tube or hose blocked-remove blockage from tube or hose •... -
Page 15: 12-Month Warranty
12 MONTH WARRANTY Thank you for your purchase from Kmart. Kmart Australia Ltd warrants your new product to be free from defects in materials and workmanship for the period stated above, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where provided.
