Summary of Contents for Zeiss ACCURA

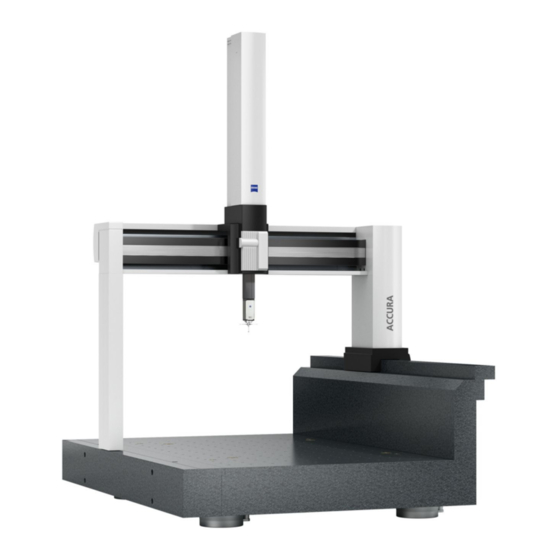

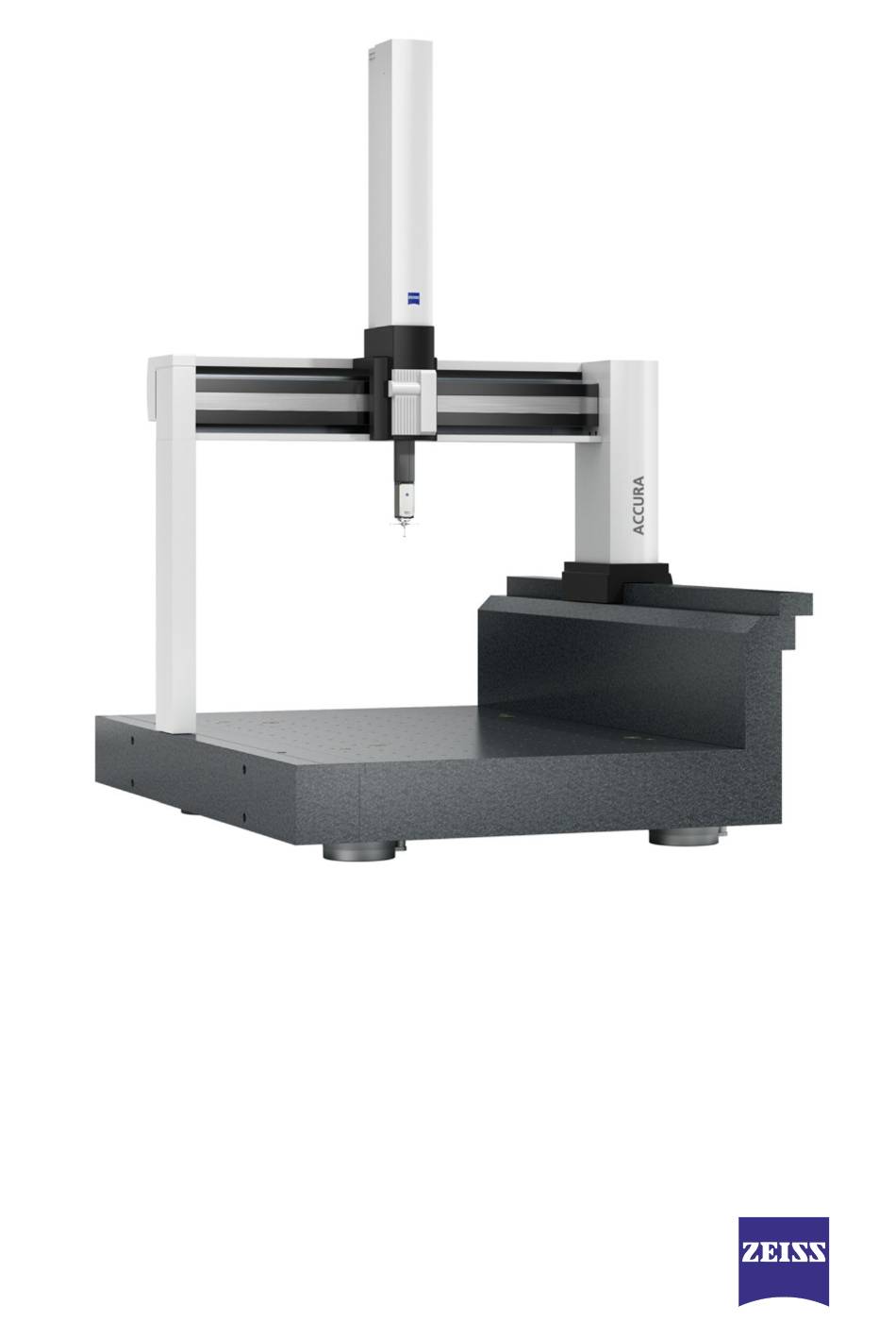

- Page 1 ACCURA Installation site requirements Coordinate measuring machine (CMM) Size: 16/24/15, 16/30/15, 16/42/15, 20/24/10, 20/30/10, 20/42/10, 20/24/15, 20/30/15, 20/42/15...
- Page 2 ACCURA Installation site requirements 2021-10-11 61221-1041202...
-
Page 3: Table Of Contents
IP rating of the controller cabinet...................... 7 Logistics and In-plant Transport................. 8 Unloading/ in-plant transport........................ 8 Shipping crates, boxes and pallets for ACCURA (X1600, X2000)............ 9 Intermediate storage/unpacking...................... 10 Adaptation to room temperature ...................... 10 Relocating an installed CMM ...................... 10 Planning and Measuring Lab Preparation ............ 11... - Page 4 Installation Dimensions/ Sample Installation/ Weights ........ 18 Controller cabinet installation ...................... 18 ACCURA 16/24/15 installation dimensions .................. 19 ACCURA 16/24/15 (bellows cover) installation dimensions .............. 20 ACCURA 16/30/15 installation dimensions .................. 21 ACCURA 16/30/15 (bellows cover) installation dimensions .............. 22 ACCURA 16/42/15 installation dimensions .................. 23 ACCURA 16/42/15 (bellows cover) installation dimensions ..............
- Page 5 Limit curves of permissible floor vibrations at the installation site.... 47 Permissible foundation acceleration for ACCURA X1600 with active damping ........ 47 Permissible foundation acceleration for ACCURA X2000 with active damping ........ 47 ACCURA Installation site requirements...
- Page 6 ACCURA Installation site requirements...
-
Page 7: General
To ensure trouble-free operation of the coordinate measuring machine, you must only use computer systems tested and approved by ZEISS. If the customer provides the computer systems, the computers must first be tested and approved by ZEISS. -
Page 8: Logistics And In-Plant Transport
— Secure the CMM assemblies being transported to prevent them from slipping and tipping. A high center of gravity increases the risk of tipping. — Secure the individual loose parts so that they cannot move. — Move the CMM assembly very carefully, slowly and smoothly. ACCURA Installation site requirements... -
Page 9: Shipping Crates, Boxes And Pallets For Accura (X1600, X2000)
Shipping crates, boxes and pallets for ACCURA (X1600, X2000) NOTE The coordinate measuring machine comes disassembled on shipping pallets. The individual parts are wrapped in insulated packaging. For overseas shipping, the individual parts are packed in shipping crates. Agenda Shipping... -
Page 10: Intermediate Storage/Unpacking
If possible, move the CMM assemblies to a storage location with an ambient temperature of at least +15°C 2 days before the arrival of the ZEISS service engineer. Relocating an installed CMM NOTE To avoid damage, the CMM may only be transported when a ZEISS service engineer is involved. ACCURA Installation site requirements... -
Page 11: Planning And Measuring Lab Preparation
A measurement is required to evaluate the extent of the floor vibrations. ZEISS can be requested to complete a vibration analysis; If required, contact your ZEISS representative. The results must be made available to ZEISS. Various parameters, such as frequency and amplitude of the prevalent acceleration, must be captured and analyzed for a comparable evaluation. -
Page 12: Environmental Conditions
(K/h) spatial (K/m) NOTE If the reference temperature is not maintained, the accuracy values listed in the specifications are not guaranteed. Please see the separate specifications brochure for information about permissible temperature varia- tions. ACCURA Installation site requirements... -
Page 13: Compressed Air
If the required air quality is still not achieved, ZEISS recommends involving a pneumatics specialist. If the required air quality is not pro- vided, it can result in damage not covered by the warranty. -
Page 14: Electrical Specifications And Network Data
— Route the cables in a cable conduit or cable duct. The cable conduit is fastened to the floor. The cable duct is embedded in the floor. NOTE The cable conduit is not included with delivery. The cable conduit or cable duct must accommodate all cables and hoses. ACCURA Installation site requirements... -
Page 15: Notes On Electrical Power Supply
If required, please contact us for more information. We will be glad to assist you and recommend suitable mea- sures. Usually, separate stub cables from the main distribution frame to the connection point of the CMM are suffi- cient. ACCURA Installation site requirements... -
Page 16: Required Connections
Circuit breaker [C 16 A at 230-240 V], [15 A at 100-125 V] ‚ Recommended: residual current circuit breaker ƒ Cable (included with delivery) „ Controller main switch … Shock-proof outlet Note: For maintenance work on the CMM ACCURA Installation site requirements... -
Page 17: Wiring Diagram For Mcc 800 Controller Cabinet
An Internet connection is not required for the installation of the CMM. Network topology System components are networked during start-up by a ZEISS service engineer (or a specialist authorized by ZEISS) in accordance with the applicable specifications and must not be modified by the customer. Any change may lead to connection problems. -
Page 18: Installation Dimensions/ Sample Installation/ Weights
— The air exchange between the controller cabinet and the environment must not be obstructed. Dimensions Height [mm] Width [mm] Depth [mm] TCC controller cabinet (standard) MCC 800 controller cabinet (optional) MCC 800 controller cabinet (option) with cooling unit (back 1060 door) ACCURA Installation site requirements... -
Page 19: Accura 16/24/15 (Bellows Cover) Installation Dimensions
ACCURA 16/24/15 installation dimensions ≥ 4556 Ž 3210 2700 ÷ 1651 2020 1564 ‘ 1927 Œ 2627 3140 All dimensions in millimeters, scale 1:50 Œ CMM width Length of granite plate, approx. 130 mm extra for service ≥... -
Page 20: Accura 16/30/15 Installation Dimensions
ACCURA 16/24/15 (bellows cover) installation dimensions ≥ 4556 3210 ÷ 2700 ‘ 1651 2020 1564 ’ 1927 Œ 2627 3140 Ž 3600 All dimensions in millimeters, scale 1:50 Œ CMM width Length of granite plate, approx. 130 mm extra for service ≥... -
Page 21: Accura 16/30/15 (Bellows Cover) Installation Dimensions
ACCURA 16/30/15 installation dimensions ≥ 4566 Ž 3210 2700 ÷ 1651 2020 1564 ‘ 1927 Œ 2627 3740 All dimensions in millimeters, scale 1:50 Œ CMM width Length of granite plate, approx. 130 mm extra for service ≥... -
Page 22: Accura 16/42/15 Installation Dimensions
ACCURA 16/30/15 (bellows cover) installation dimensions ≥ 4566 3210 ÷ 2700 ‘ 1651 2020 1564 ’ 1927 Œ 2627 3740 Ž 4520 All dimensions in millimeters, scale 1:50 Œ CMM width Length of granite plate, approx. 130 mm extra for service ≥... -
Page 23: Accura 16/42/15 (Bellows Cover) Installation Dimensions
ACCURA 16/42/15 installation dimensions ≥ 4616 Ž 3260 2750 ÷ 1651 2020 1564 ‘ 1927 Œ 2627 4940 All dimensions in millimeters, scale 1:50 Œ CMM width Length of granite plate, approx. 130 mm extra for service ≥... - Page 24 ACCURA 16/42/15 (bellows cover) installation dimensions ≥ 4616 3260 ÷ 2750 ‘ 1651 2020 1564 ’ 1927 Œ 4940 2627 Ž 5720 All dimensions in millimeters, scale 1:50 Œ CMM width Length of granite plate, approx. 130 mm extra for service ≥...
-
Page 25: Accura 20/24/10 (Bellows Cover) Installation Dimensions
ACCURA 20/24/10 installation dimensions ≥ 3610 Ž 2760 2250 1151 ÷ 1064 ‘ 2460 2367 Œ 3067 3140 All dimensions in millimeters, scale 1:50 Œ CMM width Length of granite plate, approx. 130 mm extra for ≥... -
Page 26: Accura 20/30/10 Installation Dimensions
ACCURA 20/24/10 (bellows cover) installation dimensions ≥ 3610 2760 ÷ 2250 1151 ‘ 1064 ’ 2460 2367 Œ 3067 3140 Ž 3600 All dimensions in millimeters, scale 1:50 Œ CMM width Length of granite plate, approx. 130 mm extra for ≥... -
Page 27: Accura 20/30/10 (Bellows Cover) Installation Dimensions
ACCURA 20/30/10 installation dimensions ≥ 3620 Ž 2760 1151 2250 1064 ÷ ‘ 2460 2367 Œ 3067 3740 All dimensions in millimeters, scale 1:50 Œ CMM width Length of granite plate, approx. 130 mm extra for ≥... -
Page 28: Accura 20/42/10 Installation Dimensions
ACCURA 20/30/10 (bellows cover) installation dimensions ≥ 3620 Ž 2760 1151 2250 1064 ÷ ’ 2460 2367 Œ 3067 3740 Ž 4520 All dimensions in millimeters, scale 1:50 Œ CMM width Length of granite plate, approx. 130 mm extra for ≥... -
Page 29: Accura 20/42/10 (Bellows Cover) Installation Dimensions
ACCURA 20/42/10 installation dimensions ≥ 3620 Ž 2760 2250 1151 ÷ 1064 ‘ 2460 2367 Œ 3067 4940 All dimensions in millimeters, scale 1:50 Œ CMM width Length of granite plate, approx. 130 mm extra for ≥... -
Page 30: Accura 20/24/15 Installation Dimensions
ACCURA 20/42/10 (bellows cover) installation dimensions ≥ 3620 Ž 2760 1151 2250 1064 ÷ ’ 2460 2367 Œ 3067 4940 Ž 5720 All dimensions in millimeters, scale 1:50 Œ CMM width Length of granite plate, approx. 130 mm extra for ≥... -
Page 31: Accura 20/24/15 (Bellows Cover) Installation Dimensions
ACCURA 20/24/15 installation dimensions ≥ 4556 Ž 3210 2700 1651 ÷ 2460 1564 ‘ 2367 Œ 3067 3140 All dimensions in millimeters, scale 1:50 Œ CMM width Length of granite plate, approx. 130 mm extra for ≥... -
Page 32: Accura 20/30/15 Installation Dimensions
ACCURA 20/24/15 (bellows cover) installation dimensions ≥ 4556 3210 ÷ 2700 1651 ‘ 2460 1564 ’ 2367 Œ 3067 3140 Ž 3600 All dimensions in millimeters, scale 1:50 Œ CMM width Length of granite plate, approx. 130 mm extra for ≥... -
Page 33: Accura 20/30/15 (Bellows Cover) Installation Dimensions
ACCURA 20/30/15 installation dimensions ≥ 4566 Ž 3210 2700 1651 ÷ 2460 1564 ‘ 2367 Œ 3740 3067 All dimensions in millimeters, scale 1:50 Œ CMM width Length of granite plate, approx. 130 mm extra for ≥... -
Page 34: Accura 20/42/15 Installation Dimensions
ACCURA 20/30/15 (bellows cover) installation dimensions ≥ 4566 3210 ÷ 2700 1651 ‘ 2460 1564 ’ 2367 Œ 3740 3067 Ž 4520 All dimensions in millimeters, scale 1:50 Œ CMM width Length of granite plate, approx. 130 mm extra for ≥... -
Page 35: Accura 20/42/15 (Bellows Cover) Installation Dimensions
ACCURA 20/42/15 installation dimensions ≥ 4616 Ž 3260 2750 1651 ÷ 2460 1564 ‘ 2367 Œ 4940 3067 All dimensions in millimeters, scale 1:50 Œ CMM width Length of granite plate, approx. 130 mm extra for ≥... - Page 36 ACCURA 20/42/15 (bellows cover) installation dimensions ≥ 4616 3260 ÷ 2750 1651 ‘ 2460 1564 ’ 2367 Œ 4940 3067 Ž 5720 All dimensions in millimeters, scale 1:50 Œ CMM width Length of granite plate, approx. 130 mm extra for ≥...
-
Page 37: Safety Zone
It is important to maintain the clearance distances on all sides of the CMM. See illustration. Floor marking or barrier tape (black/yellow). Scanner protective field (50 mm left and 500 mm right, top and bottom around the CMM must be clear) ACCURA Installation site requirements... -
Page 38: Foundation And Floor Load
CMM. See the chapter on installation dimensions for the required information. ACCURA with active damping Alignment of air dampers for X1600 The base is comprised of four air dampers and four leveling units which are suitable for screed floors as per DIN 18560. - Page 39 Note: The tolerances must not be exceeded. Floor load Measuring range X/Y/Z [mm] Value [N/mm Mean surface pressure on the 4 support surfaces: 1600/2400/1500 1600/3000/1500 1600/4200/1500 Determined from CMM weight and maximum permissible workpiece weight distributed over the 4 support surfaces. ACCURA Installation site requirements...
-
Page 40: Position And Alignment Of Air Dampers For X2000
Measuring range X/Y/Z [mm] Value [N/mm Mean surface pressure on the 4 support surfaces: 2000/2400/1000 and 2000/2400/1500 2000/3000/1000 and 2000/3000/1500 2000/4200/1000 and 2000/4200/1500 Determined from CMM weight and maximum permissible workpiece weight distributed over the 4 support surfaces. ACCURA Installation site requirements... -
Page 41: Granite Table Dimensions And Fastening Holes
Measuring range „ Threaded insert (4 x M36) for the ring bolts (to lift the granite plate) … Threaded insert (2 x M30) Note: must not be used to lift the complete granite plate. Grid positions Grid positions ACCURA Installation site requirements... -
Page 42: Measuring Table For Measuring Range Of X1600/Y3000
Measuring range „ Threaded insert (4 x M36) for the ring bolts (to lift the granite plate) … Threaded insert (2 x M30) Note: must not be used to lift the complete granite plate. Grid positions Grid positions ACCURA Installation site requirements... -
Page 43: Measuring Table For Measuring Range Of X1600/Y4200
Measuring range „ Threaded insert (4 x M36) for the ring bolts (to lift the granite plate) … Threaded insert (2 x M30) Note: must not be used to lift the complete granite plate. Grid positions Grid positions ACCURA Installation site requirements... -
Page 44: Measuring Table For Measuring Range Of X2000/Y2400
Measuring range „ Threaded insert (4 x M36) for the ring bolts (to lift the granite plate) … Threaded insert (4 x M30) Note: must not be used to lift the complete granite plate. Grid positions Grid positions ACCURA Installation site requirements... -
Page 45: Measuring Table For Measuring Range Of X2000/Y3000
Measuring range „ Threaded insert (4 x M36) for the ring bolts (to lift the granite plate) … Threaded insert (4 x M30) Note: must not be used to lift the complete granite plate. Grid positions Grid positions ACCURA Installation site requirements... -
Page 46: Measuring Table For Measuring Range Of X2000/Y4200
Measuring range „ Threaded insert (4 x M36) for the ring bolts (to lift the granite plate) … Threaded insert (4 x M30) Note: must not be used to lift the complete granite plate. Grid positions Grid positions ACCURA Installation site requirements... - Page 47 Limit curves of permissible floor vibrations at the installation site Permissible foundation acceleration for ACCURA X1600 with active damping Note: Acceleration values above the corresponding curve require an additional foundation. Vibration acceleration [mm/ s ²] 1000 X axis horizontal Y axis horizontal...
- Page 48 ACCURA Installation site requirements 2021-10-11 61221-1041202...
