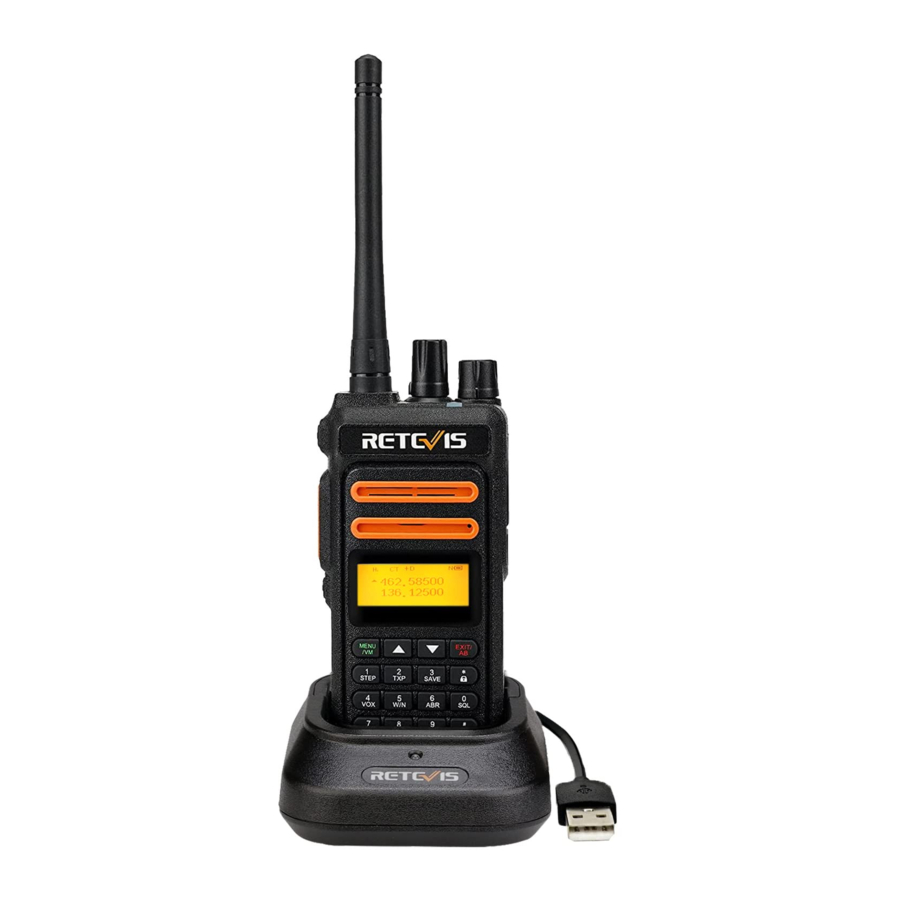

Retevis RT76P - Two Way Radio Manual

Unpacking and Checking the Equipment

Carefully unpack the transceiver. We recommend that you identify the items in the following table before discarding the packing material. If any item is missing or has been damaged during shipment, please contact your first seller.

Standard Accessories

Battery Information

Notice for charging battery
The battery is not charged at the factory, please charge it before using. Charge the battery for the first time after purchase or extended storage (more than 2 months) may not bring the battery to its normal operating capacity. After repeating fully charge/ discharge cycle for two or three times, the operating capacity will reach the best performance. The battery life will be over when the operating time decreases even though it fully and correctly charged. Please replace the battery.

Battery Charger Type

Please use our company's designated charger; other models may cause explosion and injure people.
Notice:

1. Do not short-circuit our company designated charger. Never attempt to remove the casing from the battery, we show no responsibility on the faulty caused by modifying freely without permission of our factory.
2. The ambient temperature should be between 0 and 40 in charging. Charging outside this range may not fully charge the battery.
3. Always switch off the transceiver equipped with a battery before charging. Otherwise, it will interfere with correct charging.

4. To avoid interfering the charging procedure, please do not cut off the power or take out the battery during charging.
5. Don't recharge the battery if it is already fully charged. This may shorten the life of the battery or damage the battery.
6. Don't charge the battery or transceiver if it is damp. Dry it before charging to avoid danger.
7. Don't charge the battery or the transceiver when it is wet. Wipe dry with a dry cloth before charging to avoid danger.

When buttons or ornamental chains and other electric metals with the battery terminals, the battery may cause damage or hurt bodies. If the battery terminal short circuit, it will generate a lot of heat, please be careful when you bring or use the battery, please put battery or radio into an insulated container. Do not put it into the metal container.

How to charge the battery
After installing the battery, if the battery capacity indicating icon shows , it means Low Battery, please charge the battery. Please use our company default charger to charge the battery; the charger light will indicate the charging status.

How to charge the Battery

1. Plug the charger into the AC power outlet.
2. Connect the battery or walkie-talkie with the battery to the Charging dock
3. Please make sure the battery is well connected to the charging contacts. indicator light turns red, charging starts.
4. Charging time is about 4 hours. After 4 hours, the indication light will turn green, charging finishes.

   Power-off the radio when charging.

Maintenance And Cleaning

• Do not directly hold the antenna or external microphone.
• Use the cloth without wool to wipe the dust on intercom, dirty quality, prevent contact bad.
• please cover the headphone jack when not using the intercom.
• after long-term use of the intercom, the keys, control buttons and the case is easy to get dirty, you can use a neutral detergent (do not use highly corrosive chemicals) warm cloth cleaning.

Accessory Installing

Installing/Removing the Battery Pack Install the battery pack, insert the top two ends of the battery pack into the two grooves on the top of the intercom, and then buckle the bottom. (1) When the battery is removed, please first confirm that the intercom is off, then break the bottom of the buckle, the battery can be removed from the ejection side. (2)

Installing/Removing the Belt Clip
Place the belt clip to the corresponding grooves on the back of the transceiver, and the
clockwise screw it. Anticlockwise turn screw to remove the belt clip.

Installing optional string
Insert the walkie-talkie strap into the middle ring of the walkie-talkie.

Installing optional Speaker/Microphone
Uncover the MIC-SP cover and the insert the HSO3 speaker/microphone plug into MIC-SP Jack.

Getting Acquainted

1. PTT button
   Transmit and receive the switch button. When transmitting, press this button and speak to the microphone. Release this button for receiving.

2. Side Button 1(Alarm button)
   Short press to turn on ID list. Long press to turn on the alarm function. There are 3 modes of alarm, which can be edited through menu operation and programming software.
3. Side Button 2
   The multi-function button. The multi-function button has two modes: long press and short press. The button functions can be edited by the programming software. There are 6 types of functions: FM radio, power switch, monitor, scan, NOAA and talk around.

4. LCD Display
   Display all working status of the two way radio.
5. 360 degree Channel Switch
   Replace buttons, for changing channels, frequency, and menu and so on.
6. A/B Band Switch
   under the standby status, short press to select A band or B band. When selected, the transmission will be transmitted with priority on the current channel.
7. Switch frequency mode / channel mode
   under the standby status, long press to select frequency model and channel mode.

Function Keyboard
Menu selection / confirmation button:
Button (Long press for more than two seconds, fast forward)
Button (Long press for more than two seconds, back fast)
Exit/Delete Button (In the input status, clear the entered information)

Number Keyboard
Used to input information to the programming menu of the radio; In the non-standard CTCSS editing status, you can directly input the non-standard CTCSS; press the number button in the transmitting state to send the corresponding DTMF code.
Button:
Press for a short time to turn on the reverse frequency function, and the receiving and transmitting frequencies will be reversed.
Long press for more than two seconds will turn on the keyboard lock; repeat the operation to unlock the keyboard.
Button:
Press and hold for more than 2 seconds in standby mode to start the scan function; In the FM radio state, short press this button to automatically search for FM radio stations.
Button: Press and hold for more than 2 seconds in standby mode to display the current battery voltage.

Power / Volume Switch
Turn on the radio when turning clockwise; tum it fully counterclockwise and turn off the radio when you hear a "click" sound;
Turn clockwise to increase the volume, decrease on the contrary.

Status indicator
Transmit: Red light on
Receive: Green light on

External Jack
Used to connect earphone and programming cable. When programming cable is connected, you can use programming software and update the program by computer.

LCD Screen Display
The corresponding function icon will be appeared on the screen during operation. This display allows you to know more about the meaning of the indicator and how to set the functions.

Icon Instruction

Icon	Instruction
	Channel strength indication
	The current transmit power is high power (the longest communication distance and the biggest power consumption);
	The current transmit power is low power (the most power saving, the communication distance is relatively not far)
	This symbol appears when the side tone switch is set to button side tone / button + identity code / identity code
	This symbol indicates that the current status is DCS
	This symbol indicates that the current status is CTCSS
	This symbol appears in the frequency mode, which indicates that the transmitting frequency is the receiving frequency plus a frequency difference frequency. The frequency of the frequency. difference is set in menu 27.
	This symbol appears in frequency mode, which means that the transmitting frequency is the receiving frequency minus a frequency difference frequency. The frequency difference frequency. is set in menu 27.
	The appearance of this symbol indicates that dual-frequency waiting is on, and itis ina dual-waiting state.
	This symbol appears when the buttonboard is locked; press the button to unlock and the symbol. disappears
	Indicates that the sound emission function is activated. When the sound pressure level of the microphone reaches the set value, the emission starts.
	Remote kill indication
	Reverse the receiving and transmitting frequency under channel mode and frequncy mode
	It appears when the channel is working in narrowband mode
	Display the current remaining power of the battery; [] Battery full charge indication; Battery remaining amount reminder; The battery is nearly empty, the icon frame will flash, and the radio is prohibited from transmitting at this time
Arabic NO.	Current channel number
Arabic NO.	Current channel number
	Current working channel
Arabic NO.	Current working frequency

Quick operation instructions

Menu No.	First level menu display characters	Second level menu display characters	Description of the secondary menu settings
0	Squelch	0,...,9	Squelch level. The lower the level, the more easily it will be disturbed. The higher the level, the worse the sensitivity. Best set to medium.
1	Step	2.5KHZ,5.0KHZ,6.25KHZ,10KHZ	In frequency mode, press [] or [] button to change the frequency step
		12.5KHZ.20KHZ.25KHZ50KHZ
2	Tx Power	High	Transmission at high power
		Low	Transmission at low power
3	Power save	OFF	Turn off power save mode
		ON	Turn on power save mode
4	Vox Level	OFF	Turn off VOX mode
		1, 2, ...10	Activated sound pressure level
5	Bandwidth	Wide	Wide band working
		Narrow	Narrow band working
6	Backlight	Bright	Backlight always on: :
		1Sec, 2Sec,...10Sec	Time from backlight to auto off
7	Dual Standby	OFF	Turn off Dual Standby
		ON	Turn on Dual Standby
8	Beep Prompt	OFF	Turn off Beep prompt
		ON	Turn on Beep Prompt
9	VOICE	OFF	Turn off VOICE
		ON	Turn on VOICE
10	Tx over time	OFF	Press and hold PTT Button to transmit
		15,30,---600	Numbers from 15 to 600, in 15-step increments, indicating the maximum time to transmit when the PTT button is pressed
11	Rx DCS	OFF	No CTCSS/DCS
		DO23N,...,D7541	DCS sequence
12	Rx CTCSS	OFF	No CTCSS/DCS
		67.0HZ,...,254.1HZ	CTCSS sequence, Simultaneous typing of standard or CTCSS non-standard by buttonboard
13	Tx DCS	OFF	No CTCSS/DCS
		DO23N,...,D7541	DCS sequence
14	Tx CTCSS	OFF	No CTCSS/DCS
		67.0HZ,...,254.1HZ	CTCSS sequence, Simultaneous typing of standard or CTCSS non-standard by buttonboard
15	Voice Compand	OFF	Turn off voice compandor
		ON	Turn on voice compandor
16	DTMFST	OFF
		DT-ST	Can monitor the DT - ST
		ANI-ST	Only monitor to the ANI - ST
		DT+ANI	Both monitor
17	R-TONE	1000Hz/1450Hz/ 1750Hz/2100Hz	Repeat signaling code selection
18	S-CODE	1,2, ...,15	When needed, send the group of information codes(Information code can only be written by frequency writing software)
19	Scan Mode	Time	Time mode scan, stay on the current channel for a while after scanning the signal, and then continue scanning
		Carrier	Carrier mode scanning, stop scanning after scanning the signal until the signal disappears
		SearCH	Search mode: stay on the current channel after scanning the signal
20	ANI Match	OFF	Turn off ANI - Match
		ON	Turn on ANI - Match, The speaker can only sound after receiving the correct identity signaling decode
21	PTT-ID	OFF	Press PTT without sending code
		BOT	Press PTT to send the code (the content of the transmission code is set by the frequency writing software)
		EOT	Release PTT sent code
21	PTT-ID	BOTH	Send and release codes when you release and press the PTT button
22	MDF-A	Frequency	Channel mode is _in frequency mode
		Name	Channels are displayed as channel names (The specific name is set in the writing software)
		CH NUM	Display by channel number
23	MDF-B	Frequency	Channel mode is in frequency mode
		Name	Channels are displayed as channel names (The specific name is set in the writing software)
		CH NUM	Display by channel number
24	Busy Lockout	OFF	Channel occupied also allows transmission
		ON	Channel is occupied and transmission is prohibited
25	Key Auto Lock	OFF	Turn off button auto lock
		ON	Turn on button auto lock
26	Direction	None	In frequency mode, there is no frequency difference between the transmitting frequency and the receiving frequency
26	Direction	Plus	In frequency mode, the transmitting frequency is equal to the receiving frequency plus the frequency difference
		Minus	In frequency mode, the transmitting frequency is equal to the receiving frequency minus the frequency difference
27	Offset	00.0000, ...,99.9975	In frequency mode, the difference between transmitting and receiving frequencies (whether it is effectively controlled by the frequency difference direction
28	WT-LED	Close, Blue, Orange, Purple	Standby time backlight colors selection. Default Color is Blue
29	RX-LED	Close, Blue, Orange, Purple	Receiving time backlight colors selection. Default Color is Purple
30	TX-LED	Close, Blue, Orange, Purple	Transmitting time backlight colors selection. Default Color is Orange
31	Alarm Mode	On Site	Local Alarm Sound
		Send Sound	Giving local alarm sound while sending alarm sound to other members automatically
		Send code	Giving local alarm sound while sending the pre-set DTMF identification code
32	TAIL	OFF	After releasing the PTT, the machine does not shut down. Usually, when it is relayed through the relay, it will make noise to confirm whether the local signal is relayed.
		ON	After releasing the PTT button, the machine sends a shutdown code to suppress the instantaneous noise from the listener.
33	PROGER	OFF	Turn off call end tone
		ON	Turn on call end tone
34	Language	Chinese
		English
35	OPENMGS	LOGO MESSAGE VOLTAGE	Preset icons can be set by the writing software
36	ANI ID		Query local identity ID code
37	Reset	VFO	Menu initialization
		ALL	Menu and channel initialization

• Automatic FM radio channel search
  Under FM radio mode, press button shortly to turn on the automatic FM radio channel search.
• Current voltage inquiry
  Under standby mode, press button to query the current battery voltage.
• Launch DTMF
  Press the [PTT] button and the number button, launching the relevant DTMF number, or through the PTT-ID function to launch DTMF number. PTT-ID will send the selected signaling code group.

Tip:
buttons are corresponding to DIMF [A] [B] [C] [D].

Main function operations

• VOX
  When this function is turned on, if the volume level of the user's speech reaches the selected electric frequency of the walkie talkie, the [ PTT ] button is not required, and the walkie talkie can also start the transmitting operation through voice. At some working stations, users can't call by pressing [ PTT], that can use this function.
  1. Under the standby condition, pressing [] button, voice prompt menu settings, enter functional menu settings.
  2. Pressing or buttons, select 4 menu numbers forward or backward. enter the number 4 directly to enter the 4 menu number.
  3. Pressing [ GM ] button, voice prompt "VOX launch", choose 1-10 by press or button. (The higher the value, the higher the sensitivity; as choose 3)
  4. Pressing button, voice prompt "sure", save and return to parent menu.
  5. Repeat operations above, choose OFF to turn off the VOX
     Tips: when turn on the VOX function, speak into the microphone, and the voice can be sent out. Stop talking, and the transmission will also stop. You can choose VOX sensitivity level according to quiet degree of using environment. If too much environmental noise, it will long launch when turn on the VOX.

• Keyboard Lock
  Keyboard lock forbidden number buttons to prevent you from activating a function by mistake. The radio can set as auto Keyboard lock function. The operation is as follows:
  1. Under the standby condition, pressing button, voice prompt menu settings, enter functional menu settings.
  2. Pressing or buttons, select 25 menu numbers forward or backward. Or enter the number 2 and 5 directly to enter the 25 menu number.
  3. Pressing button, pressing or button, choose ON.
  4. Pressing button, voice prompt "sure", save and return to parent menu. Automatic keypad lock active.
  5. Repeat operations above, choose OFF to turn off the automatic keypad lock and choose manual keypad lock. The operation is as follows:
     1. Under the stand by conditions, press the 2 seconds to turn on keypad lock function (voice prompt "keypad lock")
     2. Repeat press * button 2 seconds to turn off keypad lock. (voice prompt "keypad unlock")
        Tips: After the automatic keyboard locking function is turned on, when it is not locked, there is no keyboard operation for 10 seconds, and the number keyboard is automatically locked. LCD icon display after keyboard lock is opened "".

• Dual Standby
  Under this function, radio can receive frequency set by A or B channel. The operation is as follows:
  1. Under the standby condition, pressing button, voice prompt "menu setting", enter functional menu settings.
  2. Pressing or buttons, select 7 menu numbers forward or backward. Or enter the number 7 directly to enter the 7 menu number.
  3. Pressing button, voice prompt "Dual standby", pressing or button, choose ON.
  4. Pressing button, voice prompt "sure", save and return to parent menu. LCD panel display character D
     Tips: Repeat operations above; choose OFF to turn off dual standby. Under the menu model, dual standby turn off temporarily, and recover after exit.
• Voice Compandor
  Through this function, it can reduce noise of call effectively.
• DTMFST
  After it turns on, When the walkie talkie transmits, the speaker will send out the corresponding dual tone multi frequency sound. There are three modes for monitoring side tone: Button + ID code side tone, button side tone and ID code side tone.

• R-Tone
  Press PTT button to send tone while holding down side button to define 1 button. There are four tone tones, 1000HZz, 1450Hz, 1750Hz and 2000HZz, which can be selected through the menu or frequency write software.
• R-Code
  Used to extract the edited corresponding identity code group. The ID code group can be edited by frequency writing software. For editing method, please refer to DTMF editor description.
• Scan Mode
  There are three scanning modes: time scanning, carrier scanning and search scanning

1. TO, stay for a while after scanning the signal, and then continue scanning
2. CO, stop scanning after scanning the signal until the signal disappears
3. SE, the search mode scans and searches the signal and stays in the current channel

• ANI Match
  After turn on this function, the machine recognizes the effective identity code, the caller ID / GROUP / ALL/ CALL will be displayed on the screen. After the effective ID is recognized, the machine will turn on the horn and reset the effective TOT (5S). That is to say, ifa valid ID is recognized or a call is initiated actively, the horn can be turned on within 5S without ID recognition.
• Setting Methods of All Call / Group Call / Groups Call / Single Call
  At the same time of launching, directly input the call ID code on the keyboard. For example, all members in a certain place are divided into 6 groups and 2 groups. Each group has 5 members.

The member ID settings are as follows:

A Group			B Group
FirstTeam	SecondTeam	Third Team	Fourth Team	FifthTeam	Sixth Team
121	131	141	221	231	241
122	132	142	222	232	242
123	133	143	223	233	243
124	134	144	224	234	244
125	135	145	225	235	245

1. Only send the ID code, and only send the receiver's ID code when calling. Then the receiver's LCD will display "P: call" after identification
2. When sending the receiver's ID code + [*] + caller's ID code, the receiver will display "P: caller's ID code" on the LCD. For example: if A's ID 121, B's ID 123, then a sends 123 * 121, B shows P: 121, realizing personal call.
3. Send the first two numbers of the first group , then all members of the first group receive the signal, and after identification, it will be displayed as "P: group!" on the LCD to realize group call.
4. Send group A's first ID number , only all members of group A's three groups receive the signal, and the group call will be realized if it is displayed as "P: group!" on the LCD after identification.
5. Send any digit + + to call all members. After identification, the LCD displays "P: ALL" to realize all call.

Tips:

1. Only when turn onANI Match function, All Call / Group Call / Groups Call/ Single Call will be activated.
2. After ANI Match function is turned on, the speaker can only be turned on within 5 seconds after receiving the correct signaling code or active call.

• DTMF Editor
  This radio can realize fast code sending by editing the stored ID code in advance. The editing method is as follows:
  Open DTMF editor of write frequency software, as shown in the figure, edit ID code you want to edit:

  Tips: When editing the ID code in the ID editor, you do not need to edit your own ID code; the receiver and sender' s own ID code must be set to three digits to realize the call display.

• PTT-ID
  PTT-ID refers to sending DTMF code edited in advance when PTT button is pressed for transmission. There are three modes of PTT-ID: code sending when PTT button is pressed, code sending when PTT button is released, code sending when PTT button is pressed or released.
• Alarm Mode
  In case of emergency, the alarm function can be turn on to remind the nearby personnel to be vigilant. Long press 2 seconds to define side button 1 to turn on the alarm function, repeat the operation or press PTT button to turn off the alarm. There are three alarm modes: sending alarm tone, sending alarm code and on-site alarm.

1. Send alarm tone: send alarm tone at the same time as the local alarm
2. Send alarm code: send the current stored ID code at the same time of alarm
3. On site alarm means that only the local machine sends out an alarm tone

• Tail
  Tail means that the speaker is mute after the end of the transmission; the closing Tail means that the other speaker makes a "click" at the moment of the end of the transmission
• OPENMGS
  It has three modes: preset icon, preset information and battery voltage. Preset icon and preset information can be edited by frequency writing software.
• Remote Stun
  At the same time of transmission, the signaling code is sent, and the other party is remote stun after receiving the code. The LCD screen displays "kiss", which cannot be received or transmitted.
• Canceling Remote Stun
  Only after receiving the canceling remote stun code can the machine be returned to normal use.
• Talk Around
  This function can be realized by defining side button2. After talk around is turned on, the current channel transmits at the receiving frequency. LCD display character "t" when the function is turn on.
• Reverse Frequency
  In standby mode, press button to tun on the reverse frequency function. After it is turned on, the transceiver frequency will be exchanged. That is, RX frequency becomes TX frequency, and TX frequency becomes RX frequency. When the reverse frequency is turned on, the LCD simultaneously displays "R".

Technical Specifications

Specifications:
Frequency Range	GMRS
Frequency Sensitivity	+2.5 ppm
Rated Voltage	7.4V DC +20%
Antenna Impedance	50
Working Space	Same frequency single working or different frequency single working
Transmitter:
Modulation Mode	16K ¢ F3E/11K ¢ F3E
Maximum Frequency Deviation	= SkHz / <2.5kHz
Adjacent Channel Power	265dB 262dB
Spurious Power	<7.5uW
Preemphasis Character	6dB/every time the frequency will increase
Current	<1.6A
Wide/Narrow	0.75KHz +0.1kHz, 0.4KHzZ +0.1KHz
Modulation Sensitivity	8-12mV
Audio Distortion	<5%
Receiver:
Sensitivity	<-0.2uV <-0.25yuV
Voice Output Power	= 500mW
Audio Distortion	<=5%
Obstruct	= 85dB
Inter-modulation	= 65dB 260dB
Adjacent Channel Selection	= 65dB 260dB
Spurious Rejection	=> 65dB

Factory default settings

			GMRS
channel	RX	T™X	power	bandwidth	CTCSS/DCS	Remarks
1	462.5625	462.5625	5W	12.5KHz	67.0
2	462.5875	462.5875	5W	12.5KHz	118.8
3	462.6125	462.6125	5W	12.5KHz	127.3
4	462.6375	462.6375	5W	12.5KHz	131.8
5	462.6625	462.6625	5wW	12.5KHz	136.5
6	462.6875	462.6875	5W	12.5KHz	141.3
7	462.7125	462.7125	5W	12.5KHz	146.2
8	467.5675	467.5675	0.5W	12.5KHz	D243N
9	467.5875	467.5875	0.5W	12.5KHz	D032N
10	467.6125	467.6125	0.5W	12.5KHz	D047N
1	467.6375	467.6375	0.5W	12.5KHz	DO51N
12	467.6625	467.6625	0.5W	12.5KHz	DO53N
13	467.6875	467.6875	0.5W	12.5KHz	DO65N
14	467.7125	467.7125	0.5W	12.5KHz	D116N
15	462.5500	462.5500	5W	12.5KHz	123
16	462.5750	462.5750	5W	12.5KHz	D743l
17	462.6000	462.6000	SW	12.5KHz	D332
18	462.6250	462.6250	5W	12.5KHz	127.3
19	462.6500	462.6500	5W	12.5KHz	D243
20	462.6750	462.6750	5W	12.5KHz	D606N
21	462.7000	462.7000	5W	12.5KHz	D7311
22	462.7250	462.7250	5Ww	12.5KHz	136.5
23	462.5500	467.5500	SW	12.5KHz	136.5
24	462.5750	467.5750	5W	12.5KHz	136.5
25	462.6000	467.6000	5W	12.5KHz	136.5
26	462.6250	467.6250	5W	12.5KHz	136.5
27	462.6500	467.6500	5W	12.5KHz	136.5
28	462.6750	467.6750	5Ww	12.5KHz	136.5
29	462.7000	467.7000	5W	12.5KHz	136.5
30	462.7250	467.7250	5W	12.5KHz	136.5

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Retevis RT76P - Two Way Radio Manual
