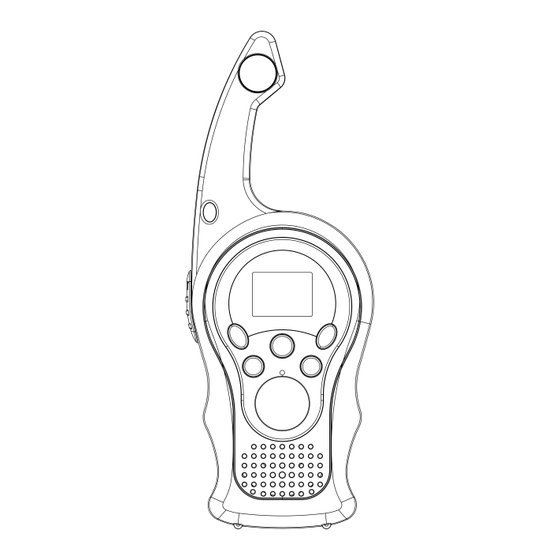

Retevis RT75 User Manual

0.5 watts handheld walkie-talkie
Hide thumbs
Table of Contents

Advertisement

Quick Links

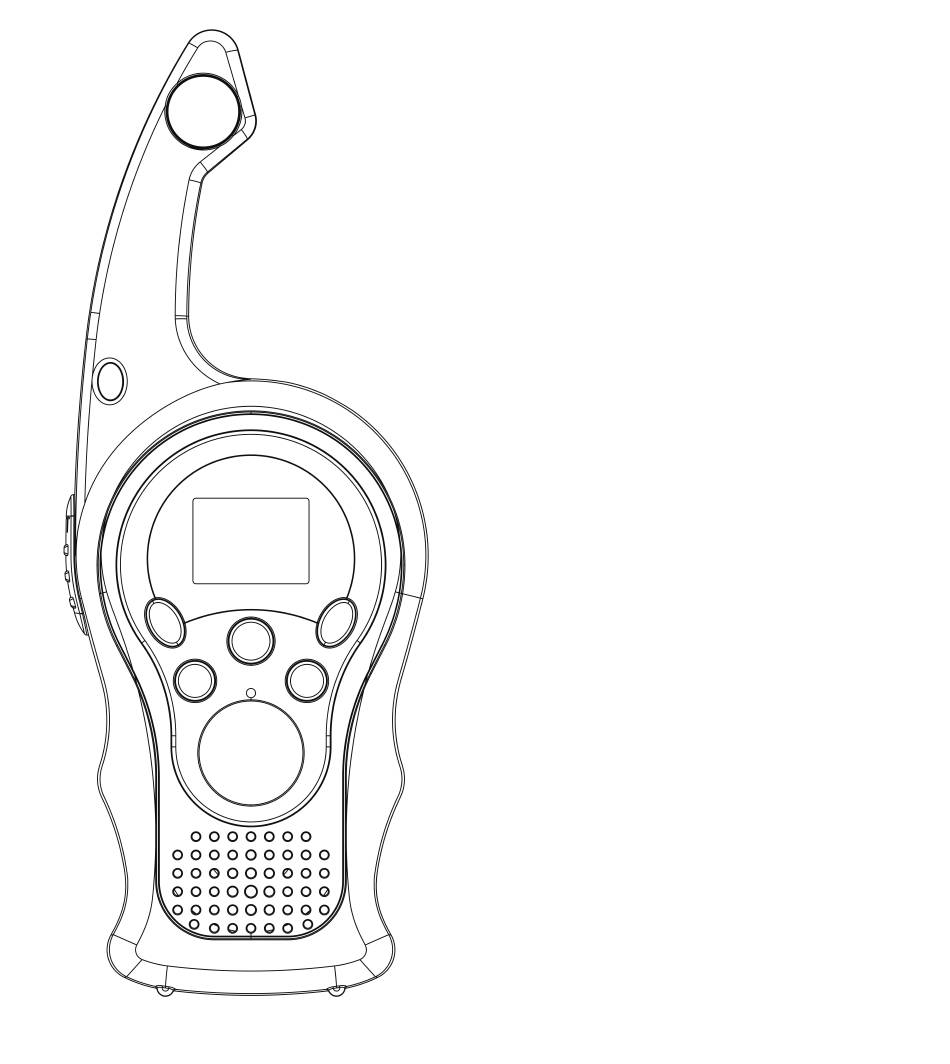

User's manual
0.5Watts Handheld walkie-talkie
Model US:RT75
EU:RT675

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RT75 and is the answer not in the manual?

Questions and answers

Related Manuals for Retevis RT75

Summary of Contents for Retevis RT75

  • Page 1 User’s manual 0.5Watts Handheld walkie-talkie Model US:RT75 EU:RT675...

  • Page 2: Specific Recommendations

    EN- Instruction for use This set includes 2 walkie-talkie units, these are communication devices which operate on mobile radio frequencies, They come with 16/22 (option) channels as well as a back-lit LCD screen, enabling you to communicate over several kilometers free-of-charge( up to 2 km in open areas) Note: Please read these user instructions carefully before using the equipment and retain for future consultation.
  • Page 3 PIC 01 Down Button Up Button...

  • Page 4: Installing The Batteries

    Before Use the device Remove the belt clip Before insert batteries into the device, first pull the belt clip latch away from the device(See PIC02) Installing the batteries 1.Slid down the battery compartment cover( See pic03). 2.Insert 3*AAA batteries(Not included) 3.Position the batteries according to polarity making on the battery compartment.

  • Page 5: Using The Device

    Using the device 1.Turning the device on/off: Switch on the device: press and hold on the on/off button for 3 seconds, then you will hear a beep sound. Switch of the device: press and hold on the on/off button for 3 seconds, then you will hear a beep sound.
  • Page 6 Note: 1.The maximum talking range is 2km, it will depended on your surroundings and environment. It will be affected by obstructions such as hills or buildings. 2.Don’t try to use two devices which are less than 1.5mm(5 feets) apart, otherwise, you may experience interference.
  • Page 7 7. VOX (Hands free function) Press the MENU button three times, the current VOX setting will flash on the display and the VOX icon will display. Press up button to set the VOX sensitivity level between 1 and 3 level( level 3 is the high sensitive level).
  • Page 8 11, Sending a call Tone. Press the CALL button one time quickly, the call tone will be transmitted on the setting channel. 12. Roger Beep On/Off After the PTT button is released, the device will send out a roger beep to confirm that have stopped talking.
  • Page 9 15. Battery saving function: When the device has not been used for 6 seconds, the economy mode is automatically activated, This does not affect the reception of transmission and the stand by mode is automatically re-activated as soon as signal is detected. 16.
  • Page 10 US（Frequency EU（Frequency Frequency Frequency 462.5625 446.00625 462.5875 446.01875 462.6125 446.03125 462.6375 446.04375 462.6625 446.05625 462.6875 446.06875 462.7125 446.08125 467.5625 446.09375 467.5875 446.10625 467.6125 446.11875 467.6375 446.13125 467.6625 446.14375 467.6875 446.15625 467.7125 446.16875 462.5500 446.18125 462.5750 446.19375 462.6000 462.6250 462.6500 462.6750 462.7000 462.7250...

  • Page 11: Radio License

    Exposure awareness can be facilitated by the use of a product label directing users to specific user awareness information. Your Retevis two-way radio has a RF Exposure Product Label. Also, your Retevis user manual, or separate safety booklet includes information and operating instruc- tions required to control your RF exposure and to satisfy compliance requirements.

  • Page 12: Fcc Requirements

    Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. CE Requirements: • (Simple EU declaration of conformity) Shenzhen Retevis Technology Co., Ltd.
  • Page 13 ROHS Directive 2011/65/EU and the WEEE Directive 2012/19/EU; the full text of the EU declaration of conformity is available at the following internet address: www.retevis.com. • Restriction Information This product can be used in EU countries and regions, including: Belgium (BE),...

  • Page 14: Rf Exposure Information

    RF Exposure Information • DO NOT operate the radio without a proper antenna attached, as this may damage the radio and may also cause you to exceed RF exposure limits. A proper antenna is the antenna supplied with this radio by the manufacturer or an antenna specifically authorized by the manufacturer for use with this radio, and the antenna gain shall not exceed the specified gain by the manufacturer declared.

  • Page 15: Hand-Held Mode

    • When operating in front of the face, worn on the body, always place the radio in a Retevis approved clip, holder, holster, case, or body harness for this product. Us- ing approved body-worn accessories is important because theuse of Non-Retevis approved accessories may result in exposure levels, which exceed the IEEE/ ICNIRP RF exposure limits.

  • Page 16: Protect Your Hearing

    Turn off your radio power in the following conditions: • Turn off your radio before removing (installing) a battery or accessory or when charging battery. • Turn off your radio when you are in a potentially hazardous environments: Near electrical blasting caps, in a blasting area, in explosive atmospheres WARNING (inflammable gas, dust particles, metallic powders, grain powders, etc.).

  • Page 17: Approved Accessories

    • The adapter shall be installed near the equipment and shall be easily accessible Approved Accessories • This radio meets the RF exposure guidelines when used with the Retevis accessories supplied or designated for the product. Use of other access- ories may not ensure compliance with the RF exposure guidelines and may violate regulations.
  • Page 19 Warranty Card Date of purchase: Product model: Serial Number: Seller: contact number: Username: contact number: Address: Zip code： Warranty description: 1. The warranty card is saved by the customer as the warranty certificate, and the loss is not compensated. 2. This card must be stamped and dated for sale to take effect.
  • Page 20 Shenzhen Retevis Technology Co., Ltd 7/ F, 13-C, Zhonghaixin Science & Technology Park, No.12 Ganli 6th Road, Jihua Street, Longgang District, Shenzhen, China EU Importer：Germany Retevis Technology GmbH Address：Uetzenacker 29,38176 wendeburg Web: www.retevis.com E-mail: kam@retevis.com Facebook: facebook.com/ retevis...

This manual is also suitable for:

Rt675
