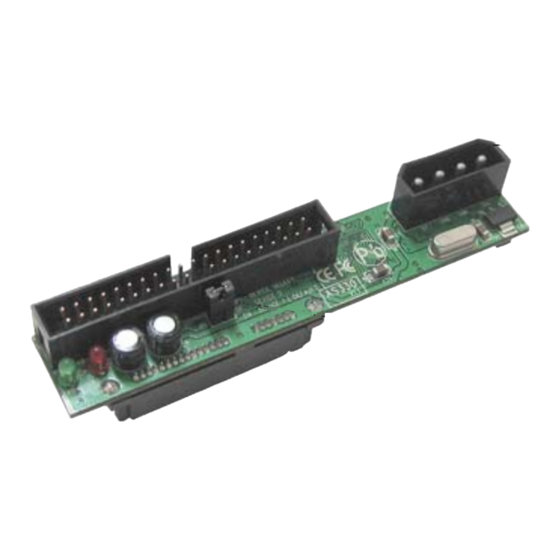

Introducing the IDE to SATA HDD Adapter
The IDE to SATA HDD Adapter allows you to connect a
newer Serial ATA hard drive to older IDE/UltraATA
host adapters.
Features and Benefits
•
Quickly add a Serial ATA hard drive to
IDE/UltraATA equipped systems
•
Compact design to reduce interference with other
devices
•
Connects directly to a Ssrial ATA hard drive - no
expansion slot required
•
Compliant with Serial ATA 1.0a specification
•
Supports data transfer rates up to 133MB/s
System Requirements
•
Pentium
IDE/UltraATA host adapter
•
Windows
(32-/64-bit) / Vista (32-/64-bit)
Serial Number Sticker
For future product return or exchange, this serial number
is required. Please keep it for your reference.
04-0524A
IDE to SATA HDD Adapter
Quick Installation Guide
or equivalent PC with an available
®
2000 / XP (32-/64-bit) / Server 2003
®
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SIIG SC-SA0512-S1
Summary of Contents for SIIG SC-SA0512-S1
-
Page 1: Quick Installation Guide
Introducing the IDE to SATA HDD Adapter The IDE to SATA HDD Adapter allows you to connect a newer Serial ATA hard drive to older IDE/UltraATA host adapters. Features and Benefits • Quickly add a Serial ATA hard drive to IDE/UltraATA equipped systems •... -
Page 2: Package Contents
Package Contents • IDE to SATA HDD Adapter • Quick Installation Guide Board Layout IDE cable connector • Power connector: plug in a power connector from the system power supply here • SATA connector: plugs directly into a SATA hard disk drive •... -
Page 3: Hardware Installation
Hardware Installation Static Electricity Discharge may permanently damage your system. Discharge any static electricity build up in your body by touching your computer case for a few seconds. Avoid any contact with internal parts and handle cards only by their external edges. Turn OFF the power to your computer. -
Page 4: Windows Driver Installation
Connect a power connector from the system power supply to the IDE to SATA Adapter, refer to Figure 6 and 7. Figure 6 Connect the other end of the IDE cable to the IDE/ UltraATA host adapter. Mount the Serial ATA hard disk drive into the computer. - Page 5 Blank Page...
- Page 6 Blank Page...
-
Page 7: Technical Support And Warranty
Step 1: Submit your RMA request. Go to www.siig.com, click Support, then click RMA to submit an request to SIIG RMA. If the product is determined to be defective, an RMA number will be issued. Step 2: After obtaining an RMA number, ship the product. - Page 8 Fremont, CA 94538-3152, USA PH: (510) 657-8688 IDE to SATA HDD Adapter is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft, Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
