Introduction

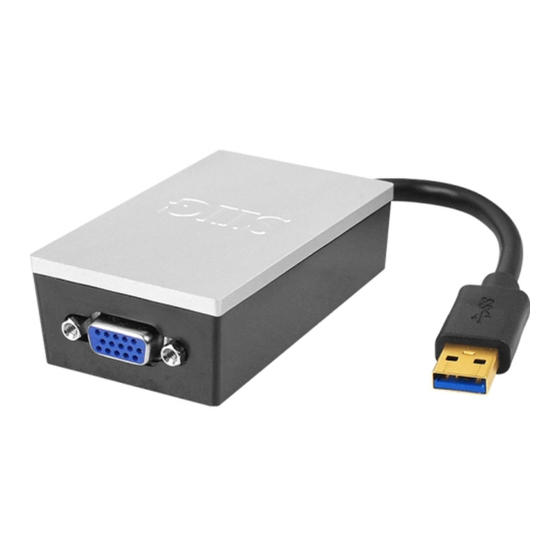

The USB 3.0 Display Adapter allows you to connect
a monitor, LCD or projector to your desktop or
notebook PC and use it as an extended desktop or
as an additional larger/different display for your
main screen.
Key Features and Benefits
•
Compliant with Universal Serial Bus 3.0
Specification
•
Works with standard and wide screen
monitors
•
Supports high resolutions up to 2048 x 1152
•
Video streaming is supported up to 1080p
•
Display modes: Primary Display, Extend,
Mirror
•
Connect up to 6 USB display adapters
simultaneously
04-0817A
USB 3.0 Display Adapter
Quick Installation Guide
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SIIG JU-VG0311-S1
Summary of Contents for SIIG JU-VG0311-S1
-
Page 1: Quick Installation Guide
USB 3.0 Display Adapter Quick Installation Guide Introduction The USB 3.0 Display Adapter allows you to connect a monitor, LCD or projector to your desktop or notebook PC and use it as an extended desktop or as an additional larger/different display for your main screen. -
Page 2: System Requirements
System Requirements • Desktop or notebook PC with a single core 1.2 GHz CPU or faster • An available USB 2.0/3.0 port (USB 3.0 recommended) • Windows 8 (32-/64-bit) / 7 (32-/64-bit) / ® Vista (32-/64-bit) / XP (32-bit, SP3) Package Contents •... -
Page 3: Windows Software Installation
DVI to VGA adapter VGA out Figure 2: USB 3.0 to DVI/VGA Pro - with VGA Output JU-VG0311-S1 USB 3.0 connector VGA out Figure 3: USB 3.0 to VGA Pro Windows Software Installation Make sure the proper driver for your graphics card is installed, the USB 3.0 Display Adapter is... - Page 4 Insert the driver CD. At the autoplay CD driver window, double click Setup. Or press Windows key and R, type D:\Setup.exe in the Run window, then click OK. (Change D: to match your CD/DVD-ROM drive letter) Click Yes or Allow at the User Account Control.
- Page 5 Double click USB Display Adapters. For USB 3.0 to VGA Pro: USB3 VGA Adapter should be displayed. For USB 3.0 to DVI/VGA Pro: USB3 DVI Adapter should be displayed. Uninstalling the Adapter Driver Windows 8 / Windows 7 For Windows 8, double click Control Panel on desktop.
- Page 6 Select DisplayLink Graphics, then click Uninstall, then click Yes. Click Allow, then click Yes to complete uninstalling the driver. Windows XP Click Start, and Control Panel. Double click Add/Remove Programs. Select DisplayLink Graphics, click Remove, then click Yes. Click Yes to complete uninstalling the driver. Windows Display Utility After successful driver installation, a display utility icon...
- Page 7 • Screen Rotation: Normal - No rotation is applied to the USB 3.0 Display Adapter display. Rotated Left - Rotates the extended or mirrored display by 270 degrees. Rotated Right - Rotates the extended or mirrored display by 90 degrees. Upside-Down - Rotates the extended or mirrored display by 180 degrees.
- Page 8 • Set as Main Monitor: This mode, makes the USB 3.0 Display Adapter the main display adapter in the system. • Mirror: In this mode, the USB 3.0 Display Adapter will mirror your desktop. You will see the same image on both monitors. •...
- Page 9 Following the instructions below to access the WDP functions: Position the mouse anywhere on the Windows Desktop, For Windows 8 / Windows 7: Right click and select Screen Resolution. For Windows Vista: Right click and select Personalize, then click Display Settings. For Windows XP: Right click then select Properties.
- Page 10 Portrait (flipped) - Sets the display to upside down landscape mode. • Multiple displays: Duplicates these displays - Reproduces the main display on the second display. Extend these displays - Extends the main display onto the secondary display. Show Desktop only on 1 - The desktop appears on the display marked 1.
-
Page 11: Windows Shortcut
The display will be highlighted with a blue border while you are moving the display to its new position. Select a display and drag to a preferred position. Figure 4: WDP functions Windows Shortcut Press Windows key and P to bring up the menu and choose a desirable mode. -
Page 12: Frequently Asked Questions
Video Playback in Extended Mode If the video or DVD playback quality is poor or low performance in the extended mode, please playback on the primary monitor instead of the add-on monitors. Frequently Asked Questions Q1: Why won't my DVD player work when I move it over to the extended display? A1: Some DVD playback software packages do not support playing on a second display... - Page 13 A3: This is due to a low or unsupported refresh rate setting. You can change this in Display Properties/Settings/Advanced/Monitor. Noted not to select the USB 3.0 Display Adapter and not set the refresh rate higher than what your monitor can support. Q4: Why my mouse can't return to the primary monitor when removing the adapter while in extended mode?
- Page 14 Q5: Why can't I make the USB 3.0 Display Adapter the primary display? A5: Some video cards ship their product with a utility that prevents other video cards from being set as the primary video card. Check the bottom right hand corner of the taskbar for the utility.
-
Page 15: Technical Support And Warranty
Go to www.siig.com, click Support, then REQUEST A PRODUCT REPLACEMENT to submit a request to SIIG RMA or fax a request to 510-657-5962. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued. - Page 16 Fremont, CA 94538-3152, USA Phone: 510-657-8688 USB 3.0 Display Adapter is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. All other names used in this publication are for identification only and may be trademarks of their respective owners.
