SIIG SC-M20211-S1 Quick Start Manual

Full speed m.2 nvme ssd to pcie adapter with heatsink

Enlarged version

Dear Valued Customer

(JUST WANTED YOU TO KNOW)

WE REALLY

APPRECIATE

YOUR PURCHASE

~thank you~

Features

• Support M.2 PCIe (AHCI or NVME) SSD

(*Do not support M.2 B key & M.2 SATA SSD)

• Support sizes 2230, 2242, 2260 and 2280

• Support PCIe 3.0 and backward

compatible with PCIe 1.0 and PCIe 2.0

• PCIe x16 slot and compatible with x4, x8

• Thermal Pad included, promote heat dissipation

• No driver installation required

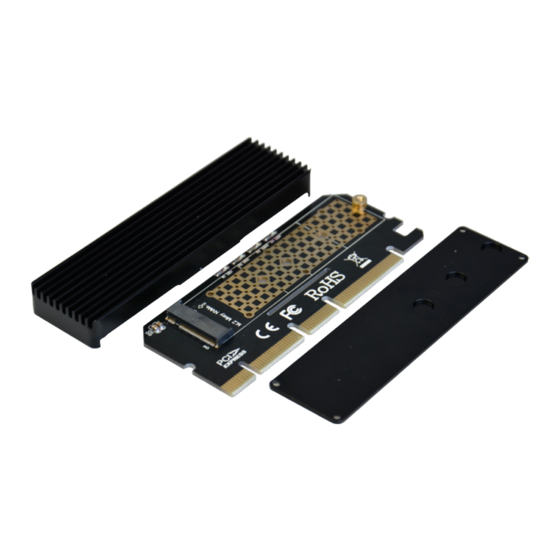

• M.2 SSD to PCIe Adapter with Heatsink

• Thermal Pad x3 (remove covers before use)

• Screwdriver

• Quick Start Guide

1. Desktop PC with an available x4/x8/x16 PCIe slot

2. Windows® 10 (32-/64-bit) / 8.x (32-/64-bit)

/ 7 (32-/64-bit) / Server 2012 R2 / 2008 R2

Table of Contents

Do you have a question about the SC-M20211-S1 and is the answer not in the manual?

Page 1 Features • Support M.2 PCIe (AHCI or NVME) SSD (*Do not support M.2 B key & M.2 SATA SSD) Dear Valued Customer • Support sizes 2230, 2242, 2260 and 2280 • Support PCIe 3.0 and backward (JUST WANTED YOU TO KNOW) compatible with PCIe 1.0 and PCIe 2.0 WE REALLY •...
Page 2 Base on thickness of M.2 SSD, choose two suit- able thermal pads to stick on M.2 SSD and make it closer to heatsink and PCB. Support For more info or tech support http://www.siig.com/support 04-1182A P/N: SC-M20211-S1 Sep, 2018 Copyright © 2018 by SIIG, Inc. All rights reserved.
