Summary of Contents for CHIEF FTRV4100

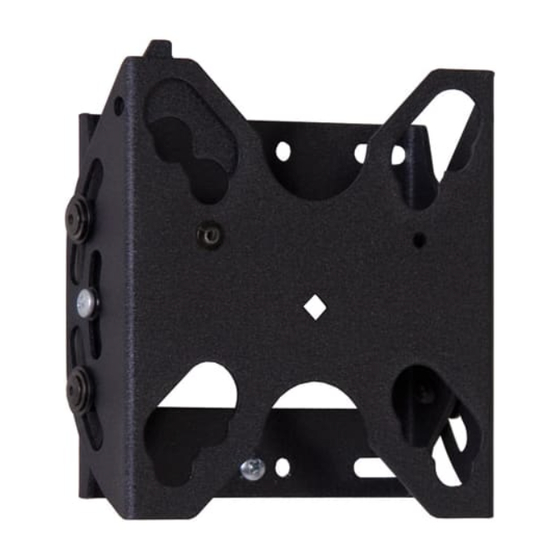

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Small Flat Panel Tilt Wall Mount Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description FTRV / FTR4100...
- Page 2 The FTRV/FTR4100 mounts are designed to be mounted to a single 2" x 4" wood stud. If necessary, they may Chief® is a registered trademark of Milestone AV Technologies. be installed to a single 2" x 4" wood stud on one side and drywall All rights reserved.
- Page 3 Installation Instructions FTRV / FTR4100 DIMENSIONS 5.56 2.50 4.00 4.00 1.38 1.02 1.88 100mm 2.38 MOUNTING 1.52 .25 x6 75mm 1.82 MOUNTING 5.61 4.75 FACE TILTS 5 UP 15 DOWN 1.69 3.38 DIMENSIONS: INCHES LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung...
- Page 4 FTRV / FTR4100 Installation Instructions TOOLS REQUIRED FOR INSTALLATION 1/8" (wood stud) 3/8" (drywall) PARTS B (2) 10-24 [Hollow wall anchor] D (2) #10 x 2-1/2" A (1) [FTR Assembly] C (4)
- Page 5 Installation Instructions FTRV / FTR4100 INSTALLATION Install Mount to a Single Wood Stud and Drywall The FTR may be installed either centered on a single 2" x 4" wood stud, or not centered on a single wood stud if anchored to WARNING: Drywall must be a minimum thickness of 1/2"...
- Page 6 FTRV / FTR4100 Installation Instructions Gently tap anchor (B) into anchor hole. Anchor barbs should be fully engaged in drywall. (See Figure 3) and (See Figure 4) (D) x 2 (B) x 2 (B) x 2 (C) x 2 (C) x 2 anchor screws x 2 Figure 3 Figure 5...
- Page 7 Installation Instructions FTRV / FTR4100 Lift and maneuver display such that all mounting buttons fit NOTE: An optional padlock may be used to secure latching flag into openings on FTR (A). (See Figure 7) in place. (See Figure 9) Lower display firmly into place. Ensure each mounting button has fully seated in the opening (See Figure 7) Close latching flag by rotating flag counterclockwise on FTR (A).
- Page 8 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief, a products division of Asia Pacific A Office No. 918 on 9/F, Shatin Galleria Milestone AV Technologies 18-24 Shan Mei Street...
