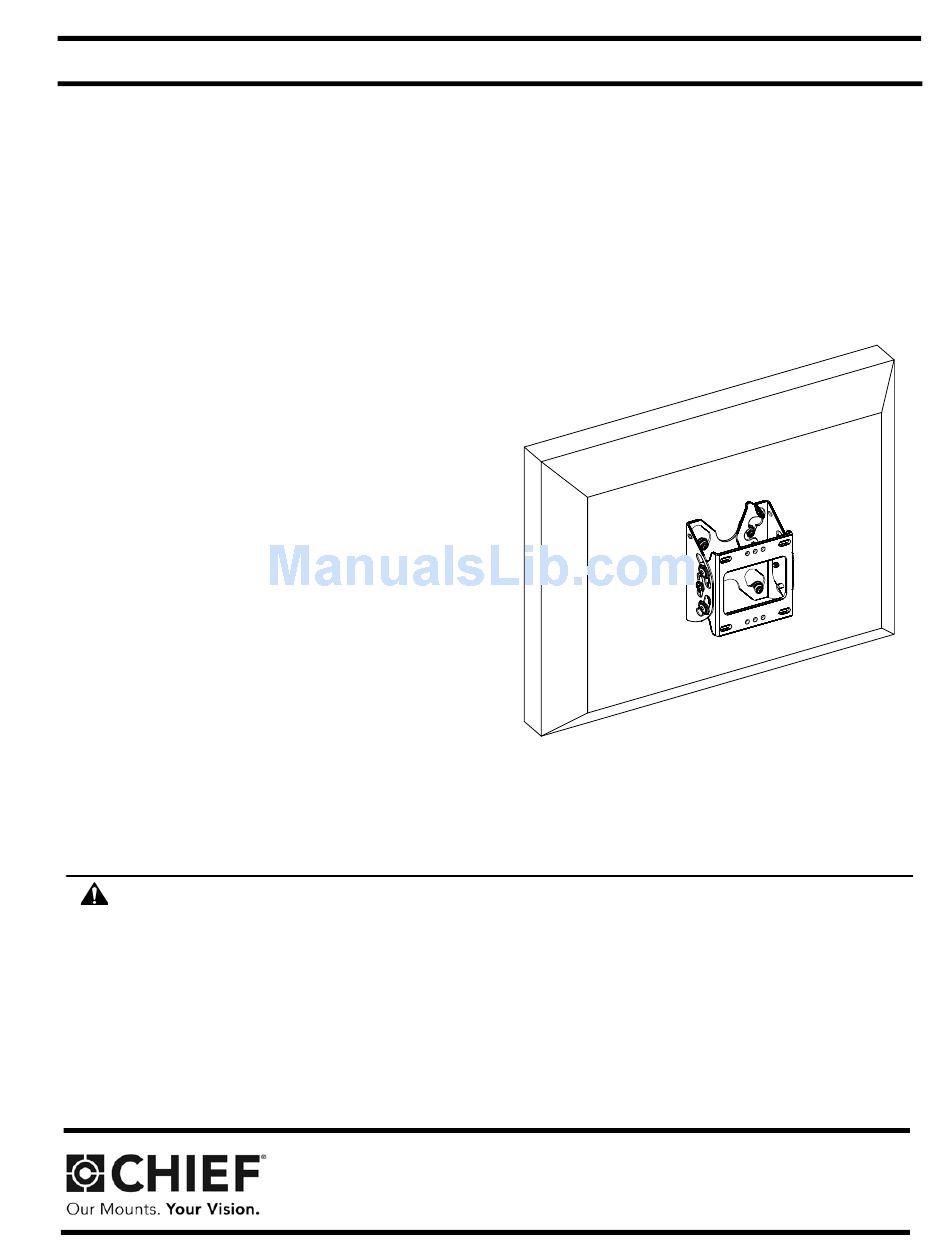

I N S T A L L A T I O N I N S T R U C T I O N S
SMALL FLAT PANEL ADJUSTABLE PITCH
WALL MOUNT
Model: FTR Series
Specifications:
Designed for installation on single wood studs or
drywall (1/2" minimum thickness); either option
provides ±1/2" lateral shift.
Weight capacity:
45 lbs (20 kg) for wood stud installation
30 lbs (14 kg) for drywall installation
Provides tilt range from 5° up to 15° down.

BEFORE YOU BEGIN

WARNING: It is the installer's responsibility to make sure all components are properly assembled and installed using
the instructions provided. Failure to read, thoroughly understand, and follow all instructions can result in serious
personal injury, damage to equipment, or voiding of factory warranty.
If you have any questions about this these instructions or your specific installation, contact Chief Manufacturing
at 1-800-582-6480 or 952-894-6280.
Chief® is a trademark of Milestone AV Technologies, Inc. All rights reserved.
Chief Manufacturing, a division of Milestone AV Technologies
1-800-582-6480 952-894-6280 Fax: 952-894-6918
8401 Eagle Creek Parkway, Ste 700
Savage, Minnesota 55378 USA
8804-000343 RevA
©2008 Milestone AV Technologies
www.chiefmfg.com
06/08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FTR Series and is the answer not in the manual?

Questions and answers

Summary of Contents for CHIEF FTR Series

  • Page 1 • If you have any questions about this these instructions or your specific installation, contact Chief Manufacturing at 1-800-582-6480 or 952-894-6280. Chief® is a trademark of Milestone AV Technologies, Inc. All rights reserved.
  • Page 2 Model: FTR Series IMPORTANT WARNINGS AND CAUTIONS! WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions. CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.
  • Page 3: Tools Required For Installation

    Chief Customer Service at 1-800-582-6480. Table 1: Parts Item Description PLATE, Wall ANCHOR, Hollow Wall, #10-24 WASHER, Flat, Standard Machine Screw, #10 SCREW, Phillips Pan Head Sheet Metal, #10 x 2-1/2" (10) Figure 1: Parts Model: FTR Series (20) (30) (40)
  • Page 4 Model: FTR Series INSTALLATION The FTR may be installed on either a single wood stud, or drywall (1/2" minimum thickness). INSTALL MOUNT TO SINGLE WOOD STUD 1. Determine approximate mounting location, keeping in mind the display size. 2. Use a stud sensor to locate applicable wood stud.
  • Page 5 2. Open latching flag by rotating flag clockwise on plate (10) (See Figure 5). 3. Lift and maneuver display mounting buttons out of button openings. Model: FTR Series Button location for 100mm x 100mm pattern (4 places) Button location for...
  • Page 6 Model: FTR Series ADJUST TILT 1. Loosen adjusting screws on each side of display (See Figure 8). 2. Adjust tilt as desired. 3. Retighten adjusting screws. Adjusting Screw (other side similar) 5° Tilt Up Figure 8: Tilt Adjustment 15° Tilt Down...
  • Page 7 Installation Instructions Model: FTR Series...
  • Page 8 Model: FTR Series Installation Instructions...
