Summary of Contents for Blaupunkt BAC28WC

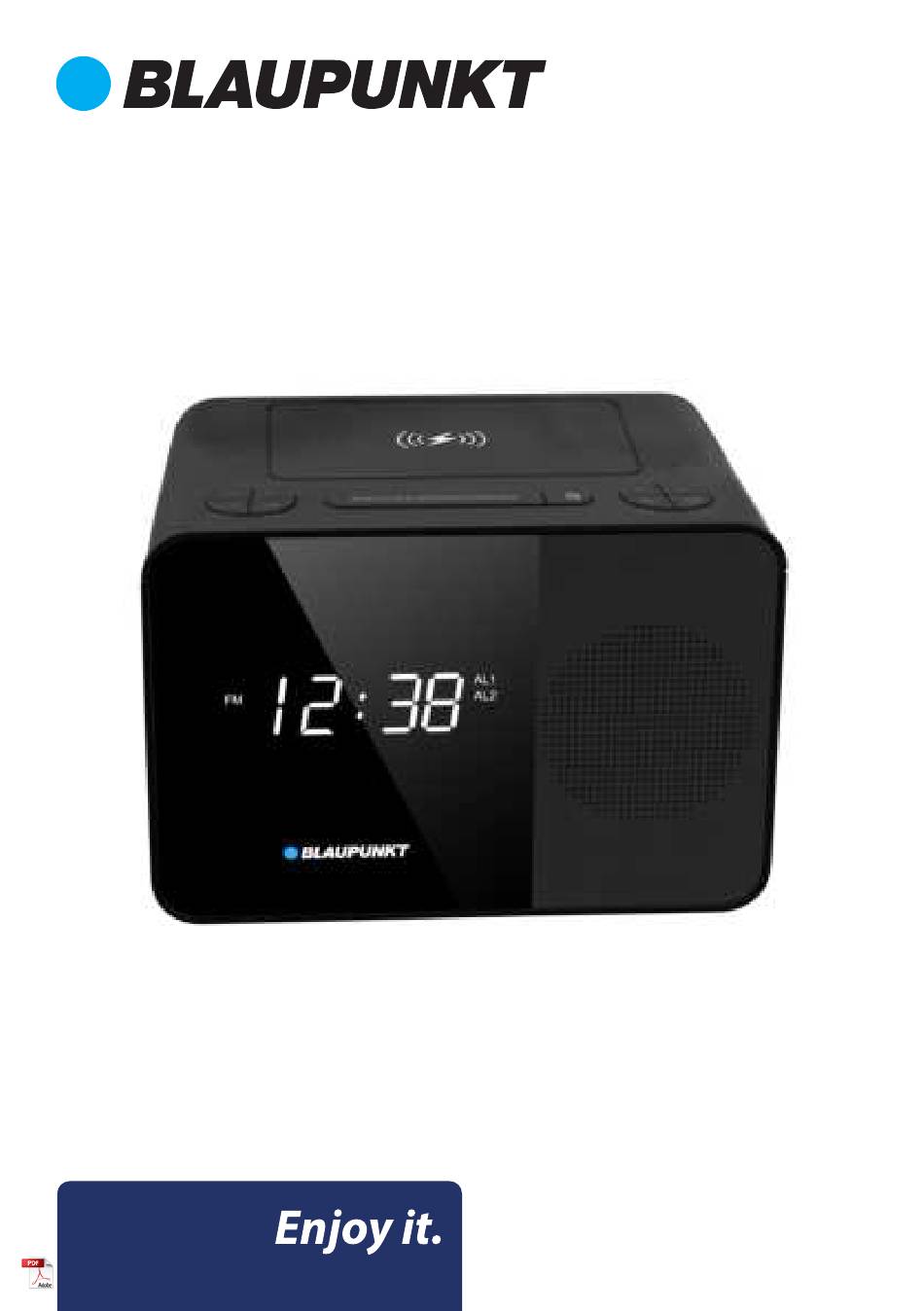

- Page 1 Instruction Manual FM Alarm Clock Radio with Wireless Charging - BAC28WC...
-
Page 3: Table Of Contents
CONTENTS General Safety Product Overview Basic Operation Battery Installation Antenna Setting the Time Setting the Alarm Snooze Function Sleep Timer Adjust Display Brightness Volume Control Radio Operation Listen to FM Radio Store FM Radio Stations Bluetooth Operation Other Features Wireless Charging Troubleshooting Specification... -
Page 4: General Safety
GENERAL SAFETY Read this manual thoroughly before you start using the radio. Store this manual, the completed warranty card, your receipt and the product packaging. The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to. Please follow all instructions and take notice of all warnings. - Page 5 GENERAL SAFETY (CONT.) IMPORTANT INFORMATION • Do not expose this product to rain or moisture as it may result in fire or an electric shock hazard • Do not temper or change or modify the product in any way. • Only use Accessories outlined and recommended by the manufacturer. •...
- Page 6 GENERAL SAFETY (CONT.) • If you notice any unusual odors or smoke around the unit, immediately disconnect the unit from the outlet and contact the service center. Failure to do so may result in fire or electric shock. • When not using the unit for long periods of time or when you are moving the unit please ensure to disconnect the power supply from the wall socket.
-
Page 7: Product Overview
PRODUCT OVERVIEW USB 5V USB 5V DC 9V MIN/TUNING+ button BT PAIRING button HOUR/TUNING- button MICROPHONE SET TIME/PRESET button DISPLAY SLEEP/SCAN button AUDIO IN AL1/VOLUME - button USB (CHARGE SOCKET) AL2/VOLUME + button USB (CHARGE SOCKET) POWER/SOURCE button DC JACK PLAY/PAUSE button WIRELESS CHARGING LOCATION SNOOZE/BRIGHTNESS button... -
Page 8: Basic Operation
BASIC OPERATION Back up Battery Installation A Battery backup function has been added to this product to assist with keeping the correct time when the mains power is interrupted for short periods of time. • Remove the battery compartment cover from the bottom of the unit. •... -
Page 9: Antenna
BASIC OPERATION (CONT.) Antenna • Unwind and extend FM wire antenna to its full length for FM reception and place it in the position. Which permits best reception. • If FM reception is weak, slightly rotate or re-position the unit to get the best possible reception. -
Page 10: Setting The Alarm
BASIC OPERATION (CONT.) Setting the Alarm The alarm settings must be performed while in STANDBY mode. Press and hold the AL1(5) or AL2(6) button (00:00) will be flashing and be shown on the display. When ‘00:00’ is flashing, set the alarm time by repeatedly pressing HOUR(2) and MIN(1), press AL1(5) or AL2(6) button to store the alarm time. -
Page 11: Snooze Function
BASIC OPERATION (CONT.) Snooze Function When the alarm goes off, press SNOOZE(9) button. • The alarm snoozes and repeats ringing 9 minutes later. Sleep Timer In radio mode, repeatedly press SLEEP(4) button to select the desired sleep time from 120, 90, 60, 30, 15 minutes. When the sleep timer is activated, the sleep indicator will appear. -
Page 12: Radio Operation
RADIO OPERATION LISTEN TO FM RADIO Ensure the mains power is connected and powered ON. Fully extend the antenna wire which is located at the rear of the apparatus. Press the SOURCE (7) button repeatedly to switch to FM tuner mode. Press the TUNING-(2) or TUNING+(1) button to tune into the desired station manually. -
Page 13: Bluetooth Operation
On your Bluetooth device, enable Bluetooth and search for Bluetooth devices (refer to the user manual of the device). When ‘BAC28WC’ is displayed on your device, select it to start pairing and connection. If necessary, enter default password “0000”. If you cannot find ‘BAC28WC’ for pairing, press and hold (10) for two seconds to enter pairing mode, and then try again. - Page 14 BLUETOOTH OPERATION (CONT.) PLAY AUDIO FROM BLUETOOTH-ENABLED DEVICE After successful Bluetooth connection, play audio on the Bluetooth device. Audio streams from your Bluetooth device to the clock radio. You can press PLAY/PAUSE(8) to start, pause or resume play. CONTROL YOUR PHONE CALL After Bluetooth connection, you can control your incoming phone call with this product.
-
Page 15: Other Features
OTHER FEATURES CHARGE YOUR PHONE With this clock radio, you can charge your phone through the USB socket (14). Connect your phone and the clock radio with the charging cable of your phone (not supplied). Connect the clock radio to AC power. The phone begins to charge. You can also wrap your USB cable that is charging your smartphone around the back part of the BAC23BTC and push the cable through the hole up into the stand. -
Page 16: Troubleshooting
TROUBLESHOOTING In the unlikely event of difficulties with your appliance please follow the trouble shooting guide below. -
Page 17: Specification
SPECIFICATIONS Power Supply Input: 100-240V~50/60Hz Output: 9V 3.5A Audio Output 3W RMS Power Consumption 31.5W Standby Power Consumption <1W Speaker Driver 1 x 2’’, 3Ω USB Charging 5V, 2A Wireless Charging Batteries DC 3V (2x AA, Not included) Frequency 87.5 - 108MHz The Bluetooth®... - Page 20 CUSTOMER HELPLINE: info@ayonz.com DISTRIBUTED BY: Ayonz Pty Ltd...
